YJ-11290500607013
Zine-Plated, rivet-on Mounting Type mechanism
Aluminum core, High Quality Polyurethane Wheel Tread
Blue color, Bearing—Ball Bearing.
Wheel Center: aluminum core

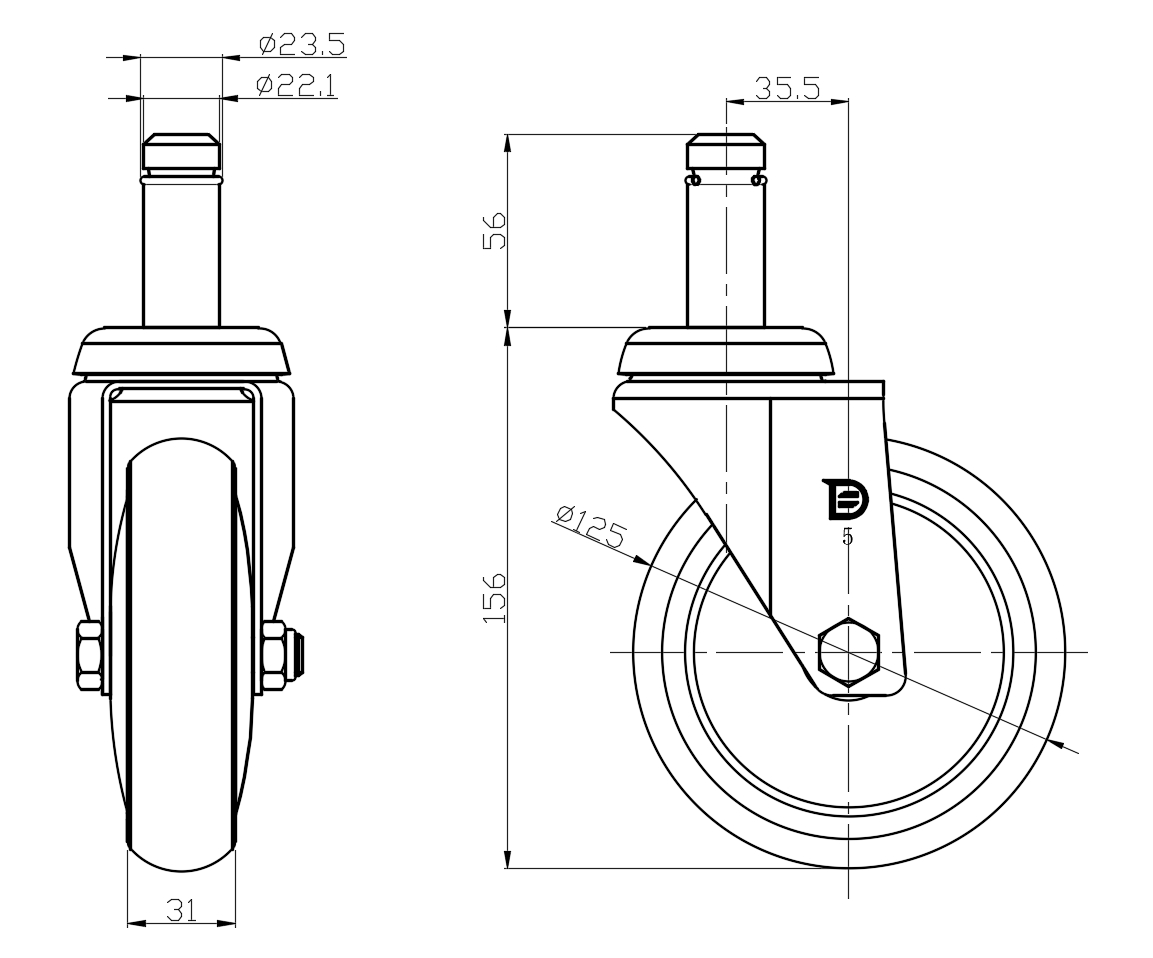

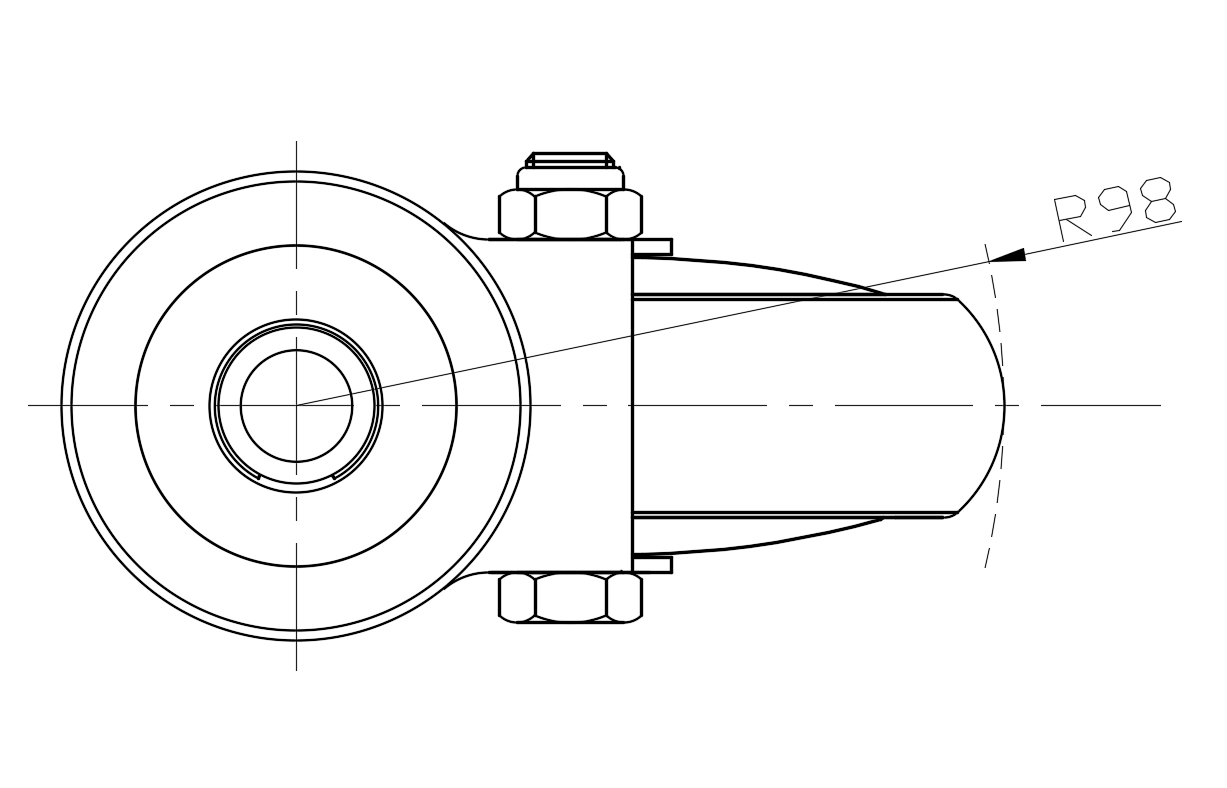

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Stem Diameter
22.1mm
Stem Length
56mm
Offset
35.5mm
Swivel Interference
196mm
Overall Height
156mm
Swivel Radius
98mm
Hardness Of Tread
87±5° Shore A
Load Capacity (Dynamic)
230kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
345kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
1.09kgs
Standard
ISO22883
