    Product Data Sheet

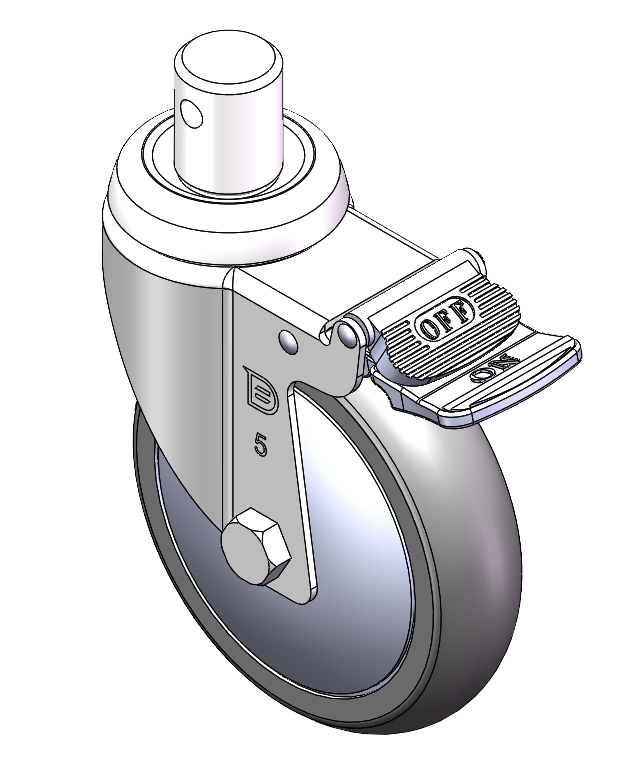

1129 Medical Caster Series
　　AQPU (grey round) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500608016 　　　
Casters with a Total Brake and With locking system. Stamping, Riveted Fork—Ø28x30L
Chrome-Plated finish, stud-type Mounting Type mechanism, M8 hole
Aluminum core, High Quality Polyurethane Wheel Tread
Gray, Bearing—Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: aluminum core

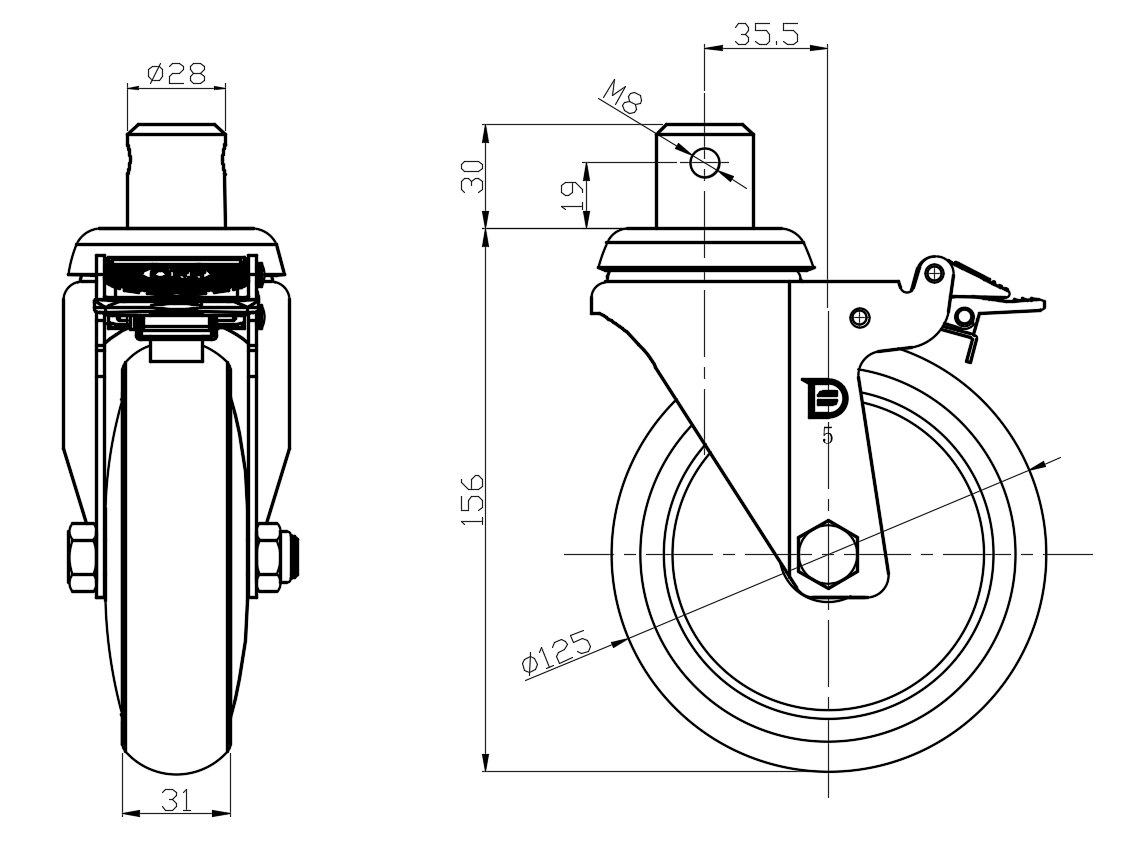

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 30mm　
　　Offset 35.5mm　
　　Swivel Interference 220mm　
　　Overall Height 156mm　

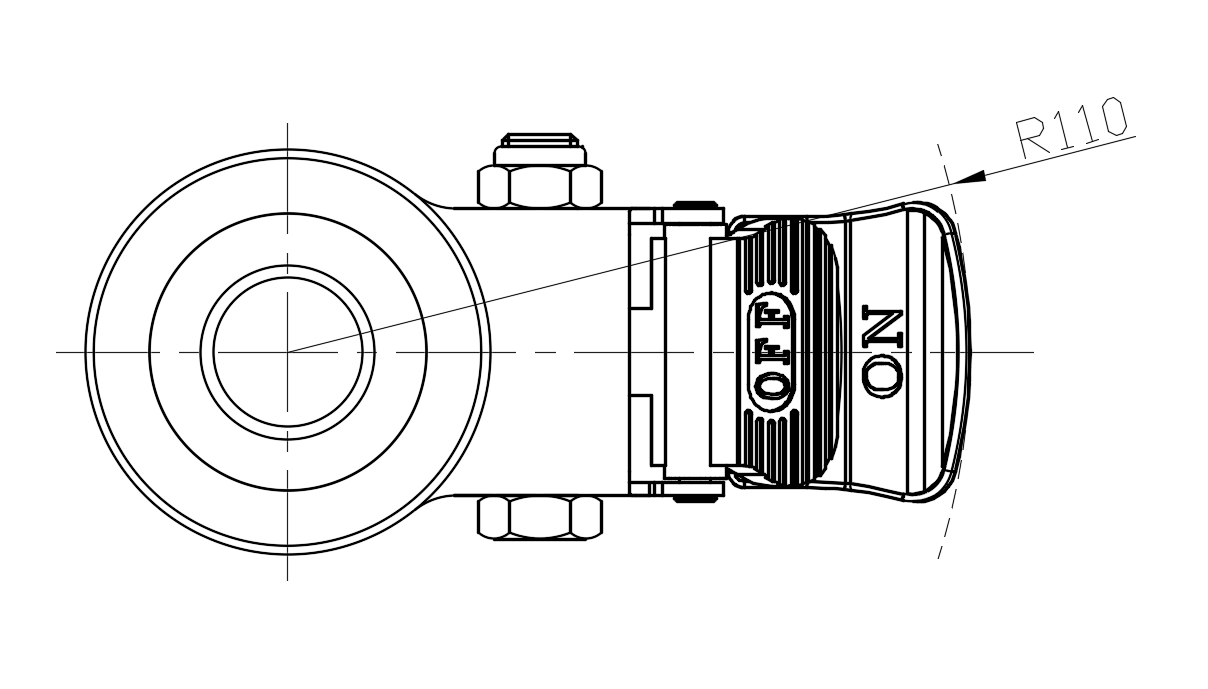

　　Swivel Radius 110mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 230kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 345kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 01.15kgs　
　　Standard ISO22883
　　
　　
