    Product Data Sheet
1129 Medical Caster Series
　　AQPU (grey round) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11290500605026 　　　
Swivel Caster with thread-Riveted Stamping Fork—M16-P2
Chrome-Plated finish, Mounting Type - Threaded Stem
Aluminum core, High Quality Polyurethane Wheel Tread
Gray, Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: aluminum core

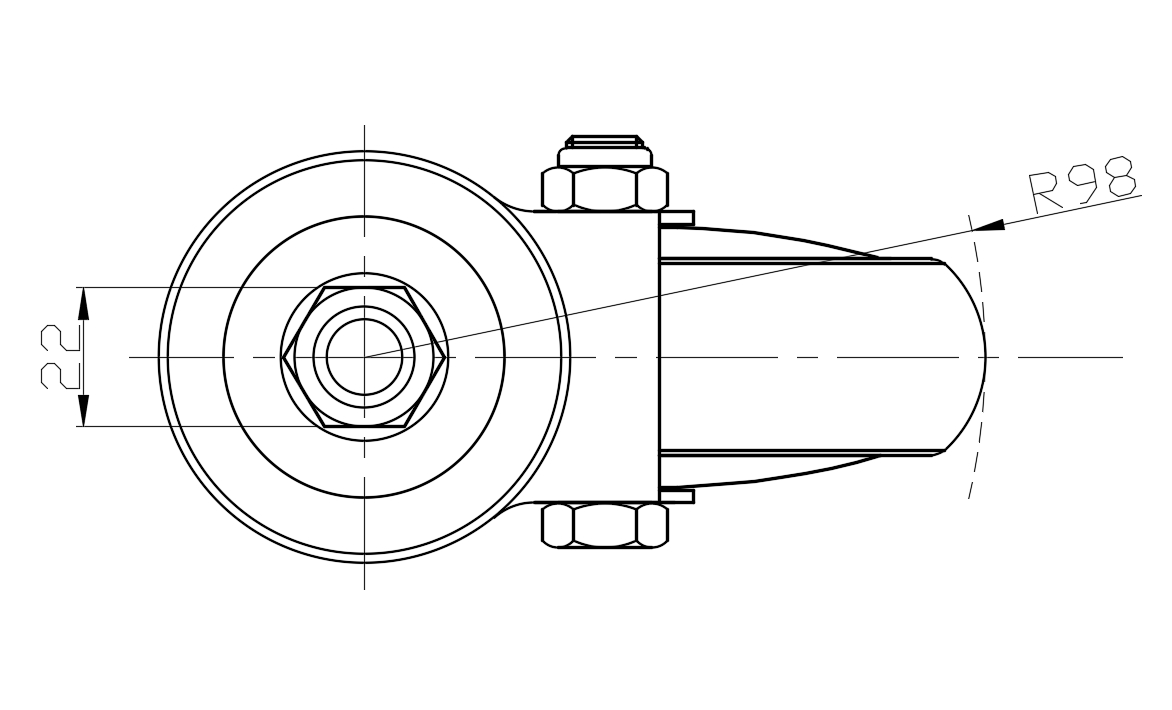

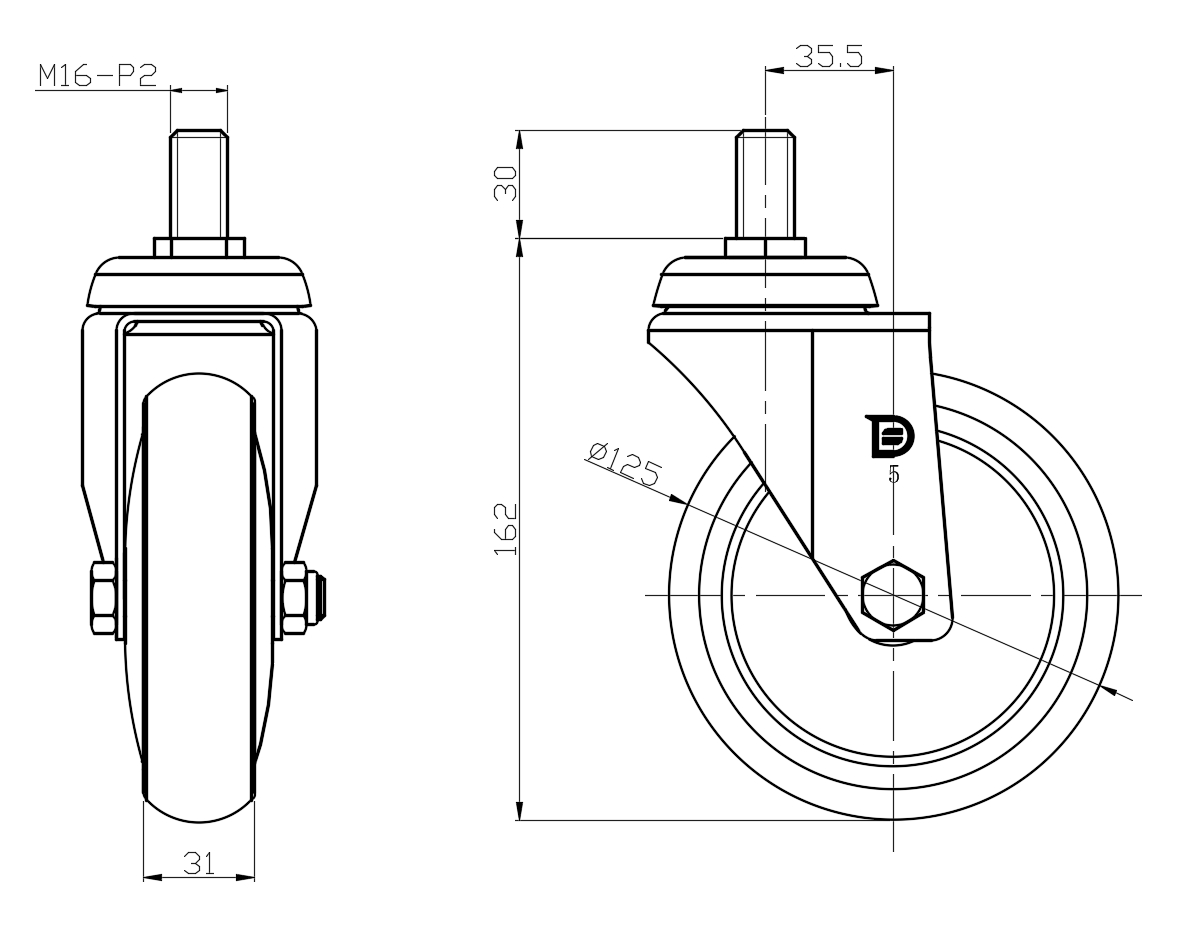

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M16-P2
　　Threaded Length 30mm
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 162mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 230kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 345kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.99kgs　
　　Standard ISO22883
　　
　　
