    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PP Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003002001 　　　
　　　　　 　　　

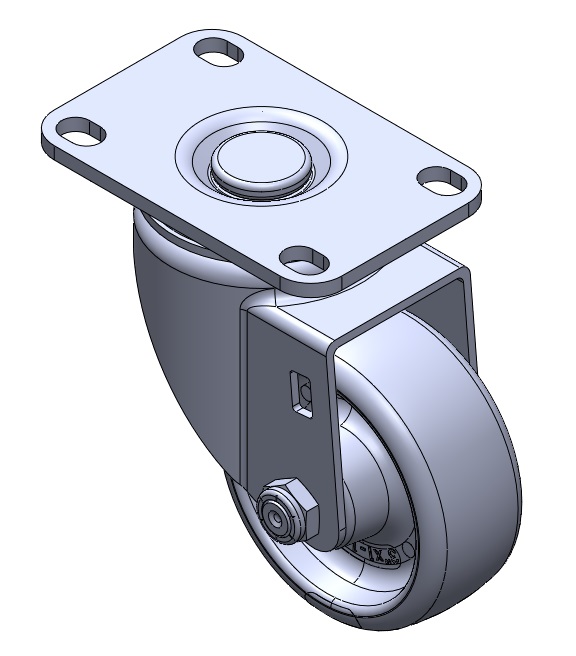

Swivel Caster with Riveted Fork and Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Mounting Type - Top Plate Polypropylene core and Wheel Tread Black, Plain Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

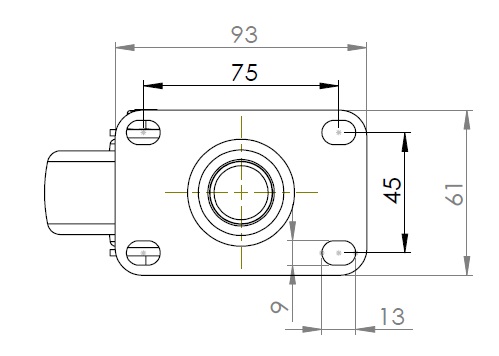

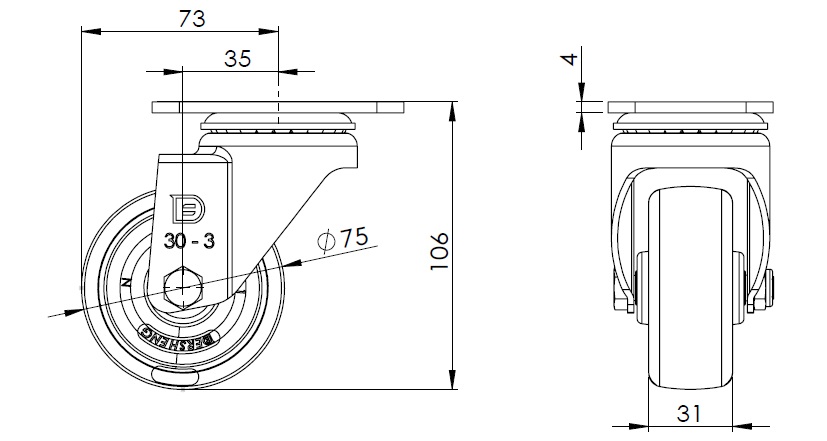

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 93 x 61mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 13 x 9mm　
　　Offset 35mm　
　　Swivel Interference 146mm　
　　Overall Height 106mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 135kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
