    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　Nylon Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003001014 　　　
　　　　　 　　　

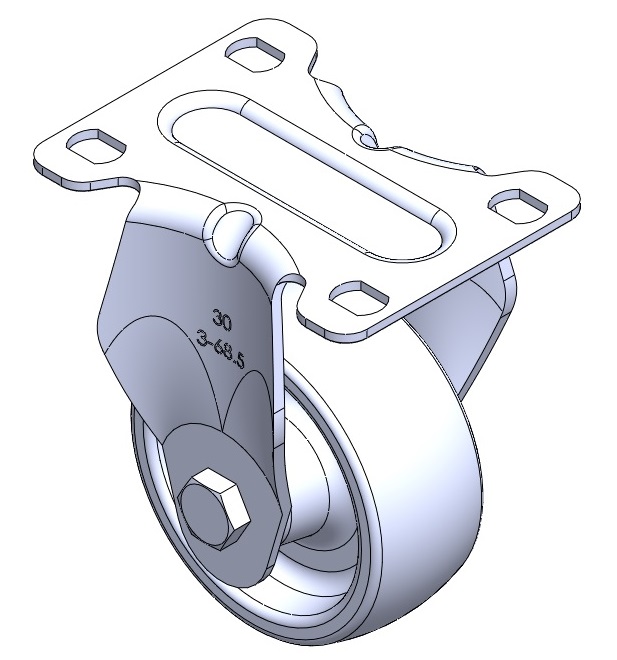

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Reinforced Polypropylene plastic core and Wheel Tread. Bearing - Plain Bearing.
　　Wheel surface: Thermoplastic plastic (PA6)
　　Wheel Center: Thermoplastic plastic (PA6)

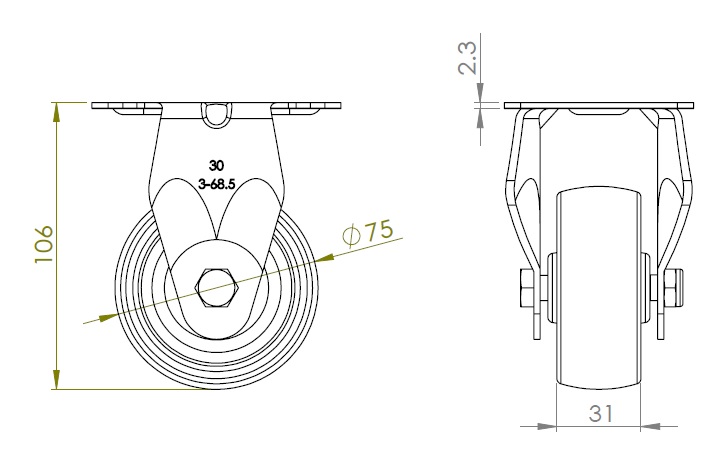

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing

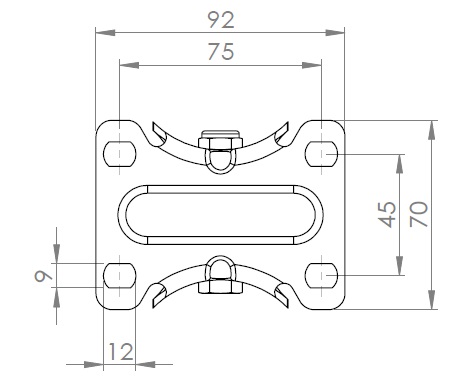

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 106mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.40kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1130 Medium Duty General Purposes Caster Series
Nylon Wheel Diameter × Wheel Width 75 x 31mm
TW-4113003002016
75 mm 100 Kgs 106 mm

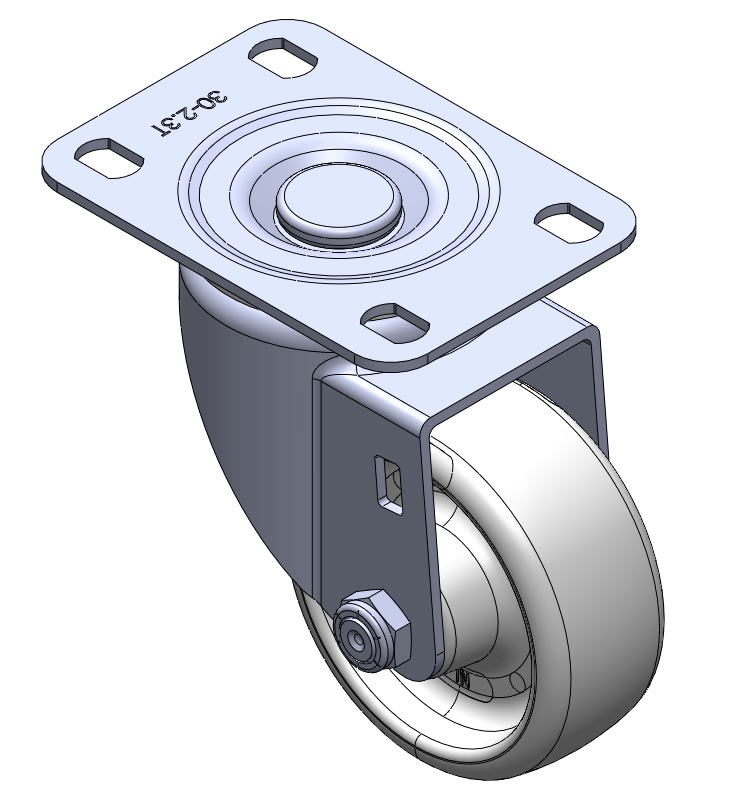

Swivel Caster with Riveted Fork and Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Top Plateed Mounting Type Reinforced Polypropylene plastic core and Wheel Tread Bearing - Plain Bearing.
