    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PU Wheel Diameter × Wheel Width 75 x 32mm
　　EAN
　　TW-4113003002007 　　　
　　　　　 　　　
Swivel Caster with Riveted Fork and Stamping Fork – 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Top Plateed Mounting Type Cast Iron core, High Quality Polyurethane Wheel Tread Red Cast Iron finish, Bearing – Ball Bearings
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

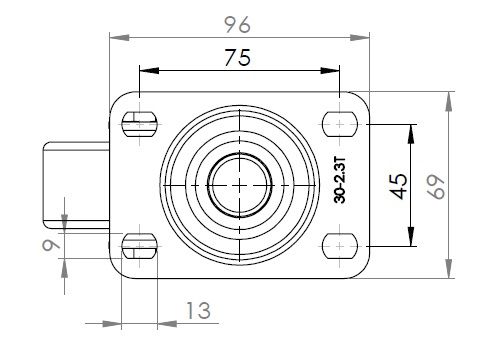

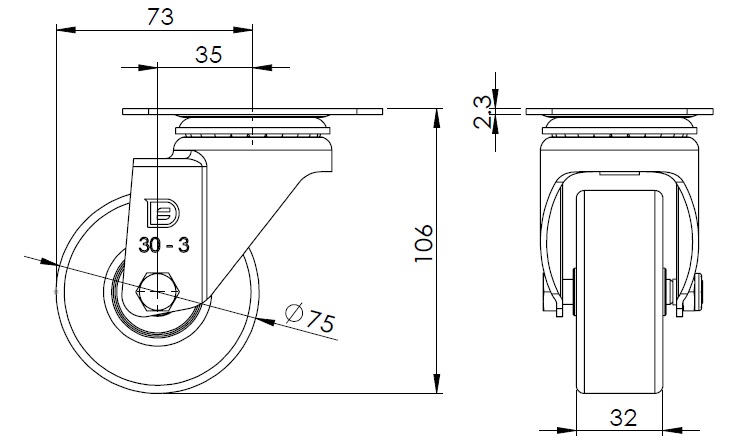

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 13 x 9mm　
　　Offset 35mm　
　　Swivel Interference 146mm　
　　Overall Height 106mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 270kgs　
　　Temperature -30°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
