    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003004003 　　　
　　　　　 　　　
Casters with Total Brakes and a With locking system. High-Quality, Riveted, Stamping Fork. Hole Zine-Plated, Mounting Type - Top Plate. Cast Iron core with High-Quality Resilient Rubber Wheel Tread. Bearing - Plain Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: iron core/cast iron core

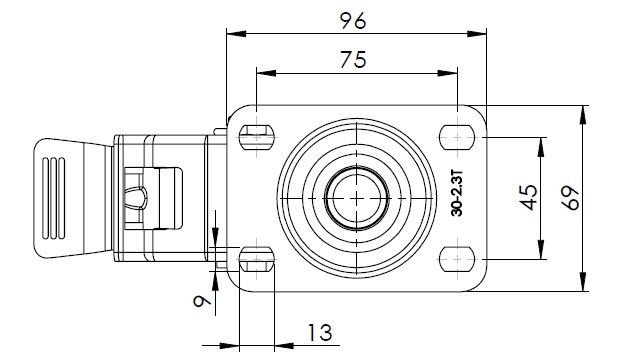

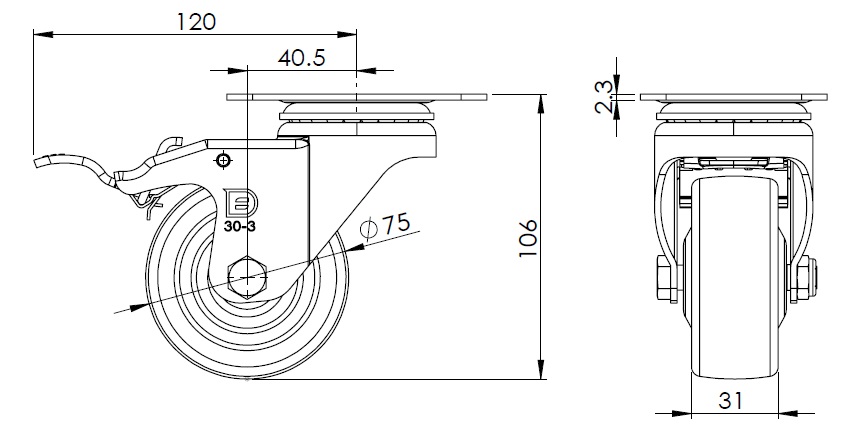

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 13 x 9mm　
　　Offset 40.5mm　
　　Swivel Interference 240mm　
　　Overall Height 106mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
