    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PU Wheel Diameter × Wheel Width 75 x 32mm
　　EAN
　　TW-4113003004100 　　　
　　　　　 　　　

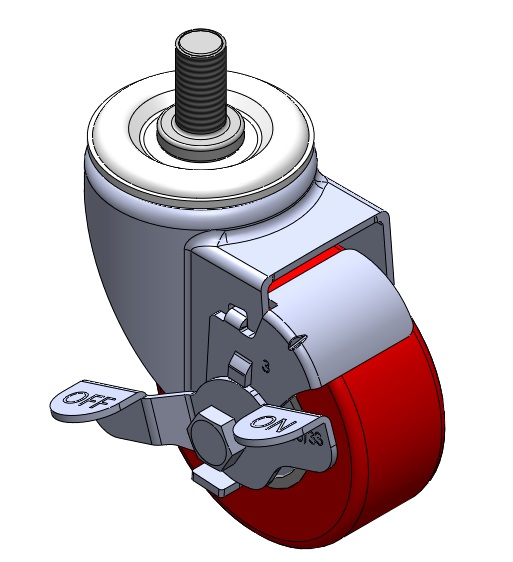

Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 1/2-12 threads.
Zine-Plated, Mounting Type - Top Plate.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red Cast Iron finish, Bearing – Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

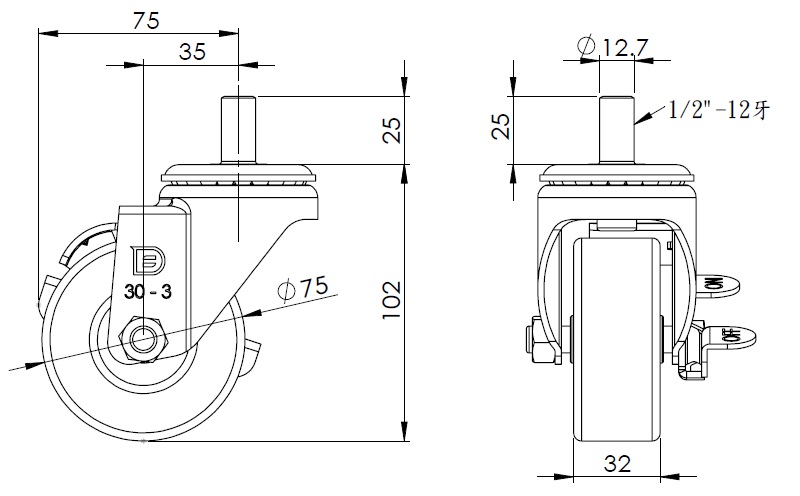

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings

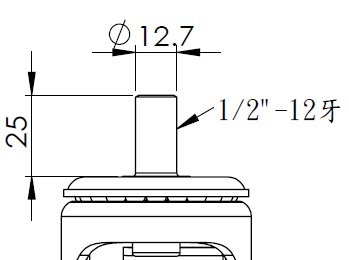

　　Threaded Stem 1/2＂-12牙
　　Threaded Size 25mm
　　Offset 35mm　
　　Swivel Interference 150mm　
　　Overall Height 102mm　
　　Swivel Radius 75mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 270kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
