    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003004105 　　　
　　　　　 　　　
Casters with Total Brakes and a With locking system. Threaded Stem, Riveted, Stamping Fork—3/8"-16" UNCs
Zine-Plated, Mounting Type - Threaded Stem
High-Quality Resilient Rubber Wheel Tread and core
Black, Plain Bearings
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: high quality elastic rubber

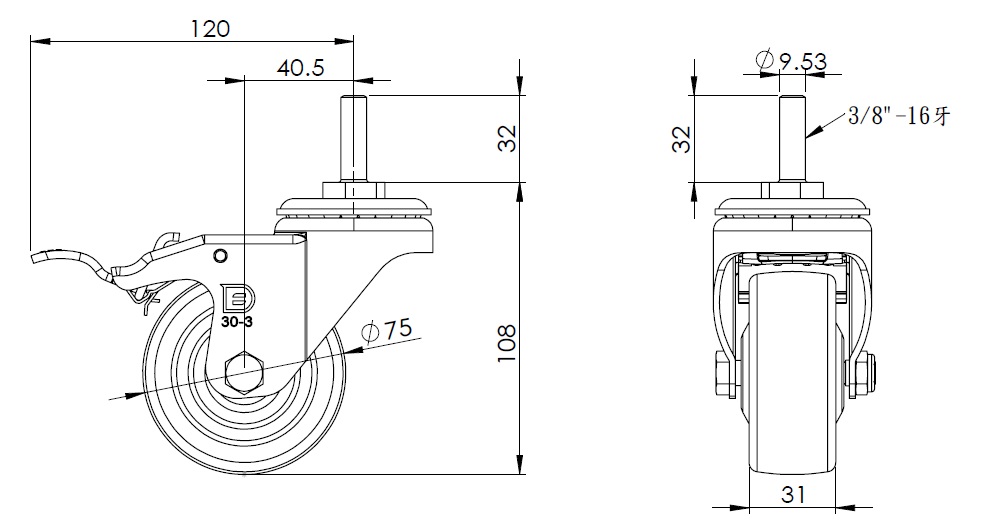

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 3/8＂-16牙
　　Threaded Length 32mm
　　Offset 40.5mm　
　　Swivel Interference 240mm　
　　Overall Height 108mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.70kgs　
　　Standard ISO22883
　　
　　
