Zine-Plated, Mounting Type - Threaded Stem.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Red color, Bearing – Ball Bearing.
Wheel Center: Made of high-quality impact-resistant polypropylene

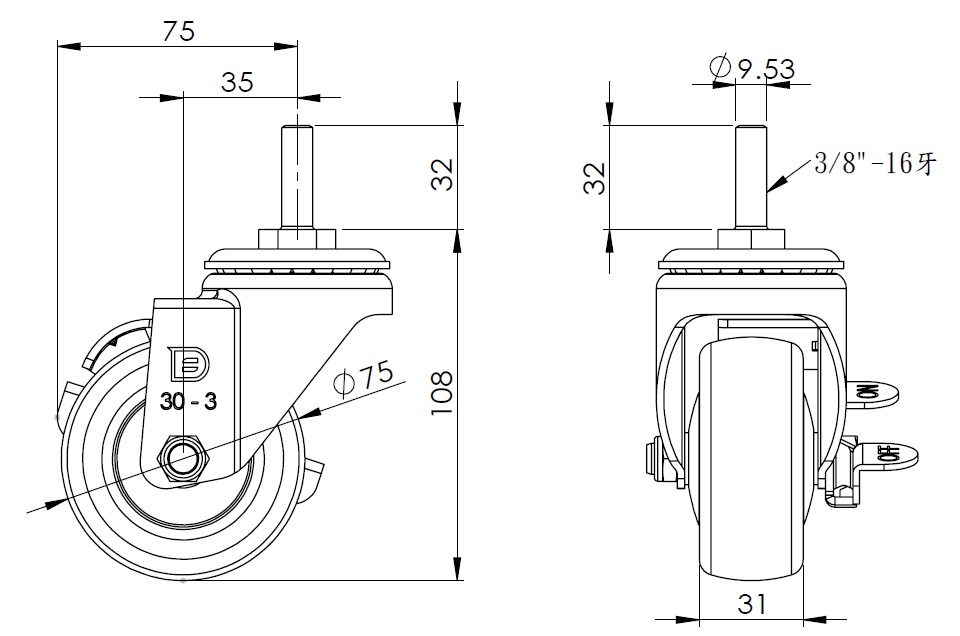

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings

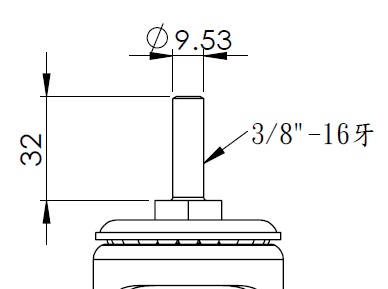

Threaded Stem
3/8＂-16牙
Threaded Length
32mm
Offset
35mm
Swivel Interference
150mm
Overall Height
108mm
Swivel Radius
75mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
70kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
105kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Side Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.60kgs
Standard
ISO22883
