    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PU Wheel Diameter × Wheel Width 75 x 32mm
　　EAN
　　TW-4113003004107 　　　
　　　　　 　　　

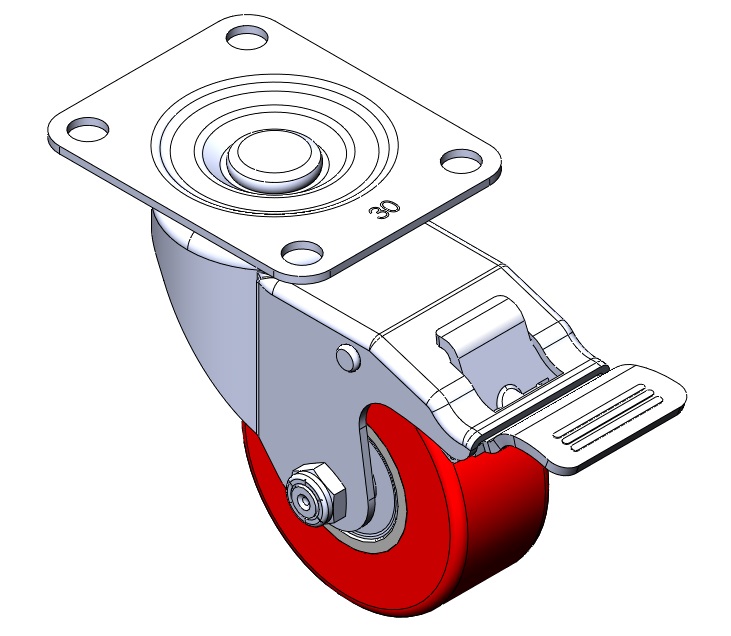

Casters with Total Brakes and a With locking system. Top Plate Riveted and Stamping - instrument Fork. Hole Zine-Plated, Mounting Type - Top Plate. Cast Iron core with High Quality Polyurethane Wheel Tread. Red Cast Iron finish, Bearing - Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

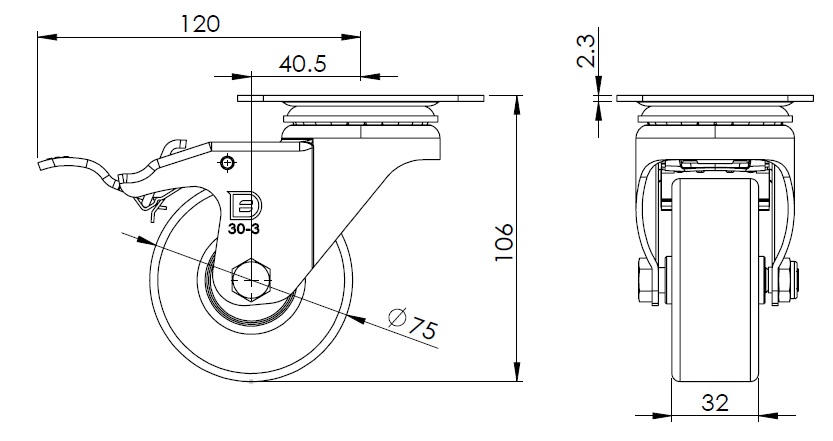

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings

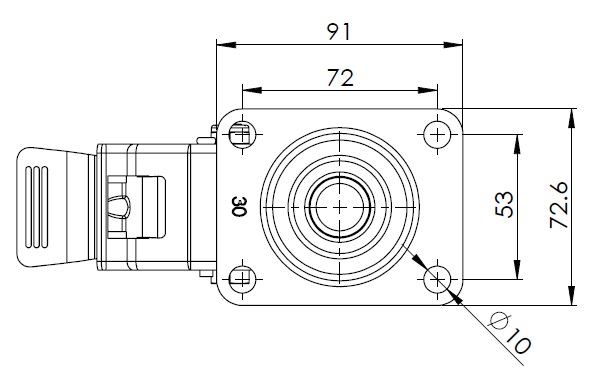

　　Plate Size 91 x 72.6mm　
　　Bolt Hole Spacing 72X53mm　
　　Plate Hole 10mm　
　　Offset 40.5mm　
　　Swivel Interference 240mm　
　　Overall Height 106mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 270kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
