Zine-Plated, Mounting Type - Threaded Stem
Reinforced Polypropylene core and Wheel Tread
Bearing - Plain Bearing
Wheel Center: thermoplastic

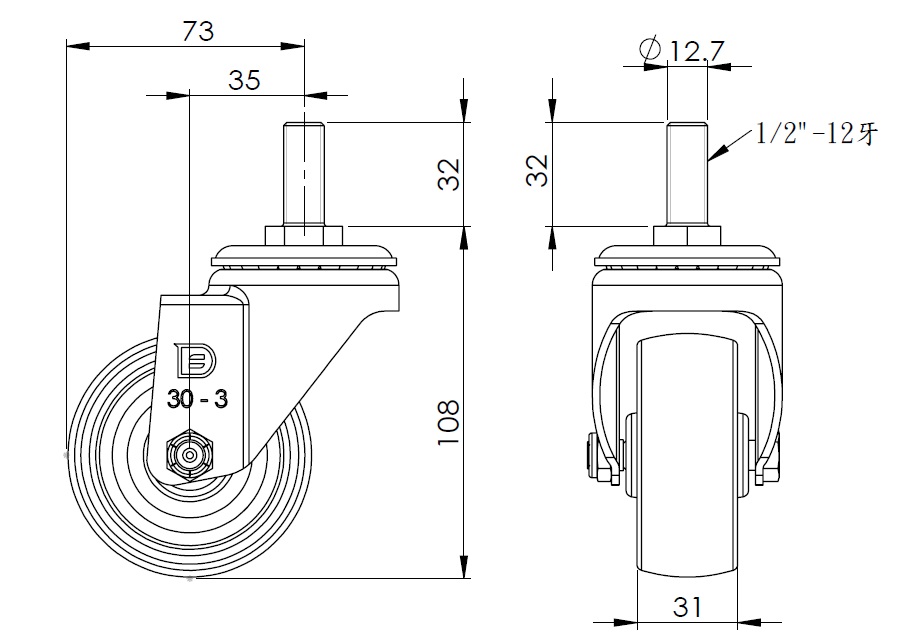

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheel With Plain Bearing

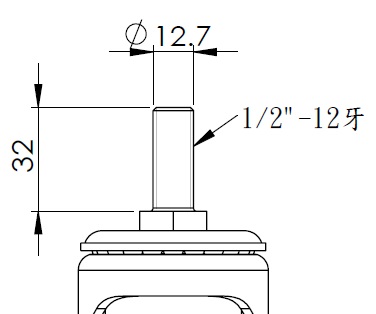

Threaded Stem
1/2＂-12牙
Threaded Length
32mm
Offset
35mm
Swivel Interference
146mm
Overall Height
108mm
Swivel Radius
73mm
Hardness Of Tread
70±5° Shore D
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
150kgs
Temperature
-25°C to +80°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.50kgs
Standard
ISO22883
