    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　AQPU (grey) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003002023 　　　
　　　　　 　　　
Swivel Caster with Riveted Fork and Stamping Fork – 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Top Plateed Mounting Type Aluminum core, High Quality Polyurethane Wheel Tread Gray, Bearing – Ball Bearings
　　Wheel tread: high quality polyurethane
　　Wheel Center: aluminum core

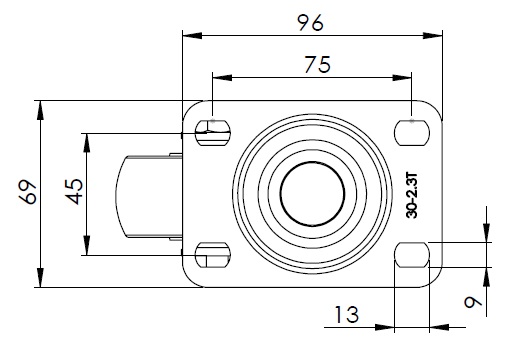

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 13 x 9mm　
　　Offset 35mm　
　　Swivel Interference 146mm　
　　Overall Height 106mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.60kgs　
　　Standard ISO22883
　　
　　
