    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　AQPU (grey) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4113003002030 　　　
　　　　　 　　　

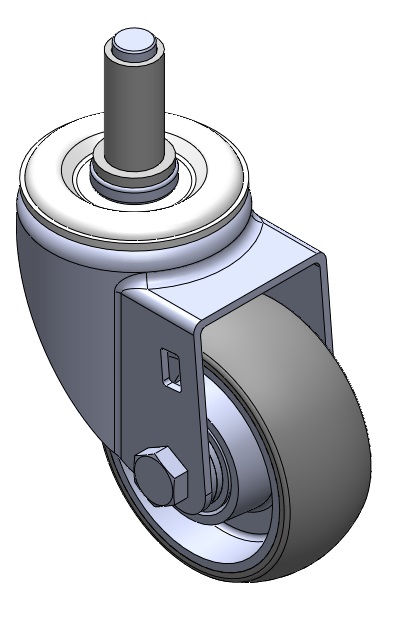

Swivel Caster with Riveted Stamping Fork—Ø11x38L Zine-Plated, Mounting Type - Cylindrical Stem, brass buckle, and plastic sleeve Aluminum core with High Quality Polyurethane Wheel Tread Gray, Bearing—Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: aluminum core

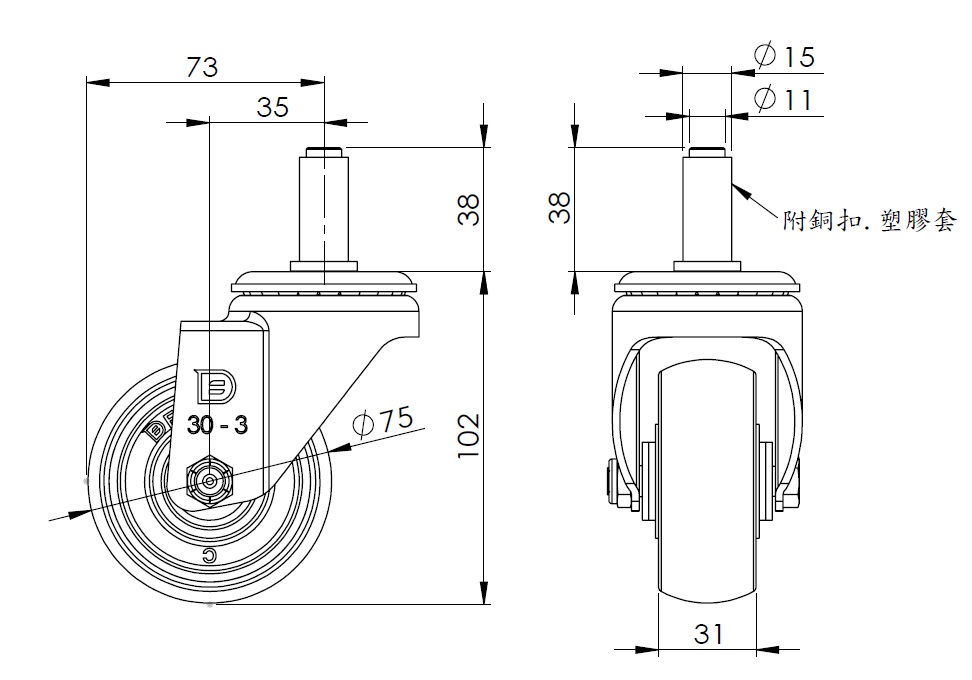

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 11mm　
　　Stem Length 38mm　
　　Offset 35mm　
　　Swivel Interference 146mm　
　　Overall Height 102mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
