Zine-Plated, Mounting Type - Top Plate
Polypropylene core and Wheel Tread
Black, Plain Bearing.
Wheel Center: PP polypropylene

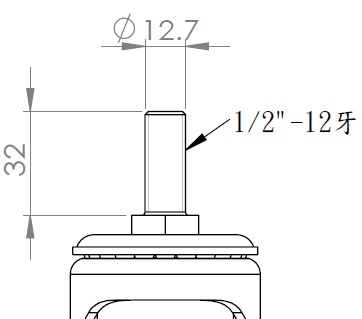

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter 75mm
Wheel Width 32mm
Threaded Stem 1/2＂-12牙
Threaded Size 32mm
Offset 35mm
Swivel Interference 146mm
Overall Height 108mm
Swivel Radius 73mm
Hardness Of Tread 65±5° Shore D
Load Capacity (Dynamic) 90kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ○ ○
Floor Surface Preservation ● ● ● ○ ○
Temperature -10°C to +60°C
Fork Type Swivel Caster
Electrical Conductivity N/A
Anti-Static N/A
Weight 0.50kgs
Standard ISO22883
