Zine-Plated surface, Mounting Type - Top Plate device
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread
Cast Iron red, Bearing—Ball Bearings.
Wheel Center: Iron core / Cast iron core

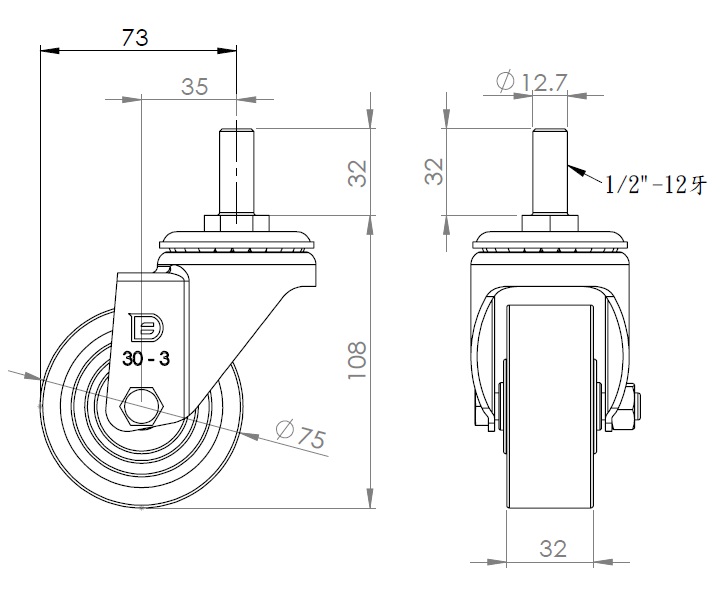

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
32mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
1/2＂-12牙
Threaded Length
32mm
Offset
35mm
Swivel Interference
146mm
Overall Height
108mm
Swivel Radius
73mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
240kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.50kgs
Standard
ISO22883
