Zine-Plated, Mounting Type - Top Plate.
Polypropylene Wheel Center and Wheel Tread.
Black, Plain Bearing.
Wheel Center: Thermoplastic plastic (PA6)

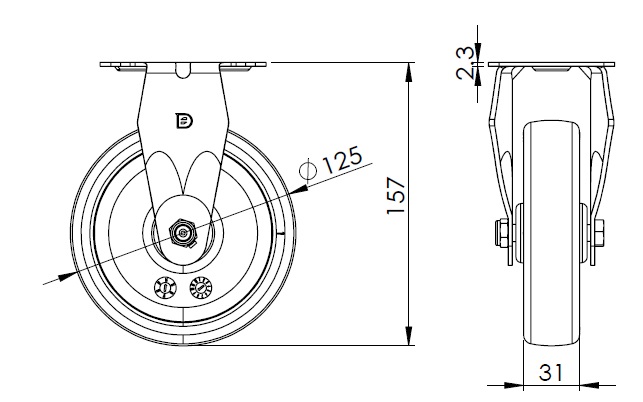

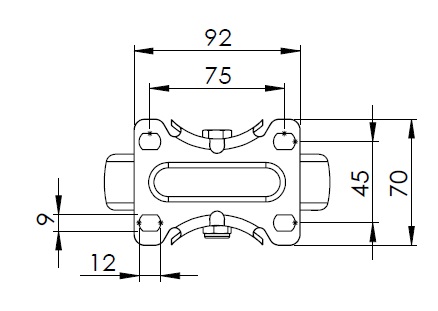

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
92 x 70mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
12 x 9mm
Overall Height
157mm
Hardness Of Tread
65±5° Shore D
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ○ ○
Floor Surface Preservation ● ● ● ○ ○
Load Capacity (Static)
137kgs
Temperature
-10°C to +60°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.52kgs
Standard
ISO22883
