    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　AQPU (grey) wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4113004004022 　　　
　　　　　 　　　
Casters with Total Brakes and With locking system. Threaded Stem Riveted Pressed Fork—1/2-12.
Zine-Plated, Mounting Type - Top Plate.
Aluminum wheel center, High Quality Polyurethane Wheel Tread.
Gray color, Bearing—Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: aluminum core

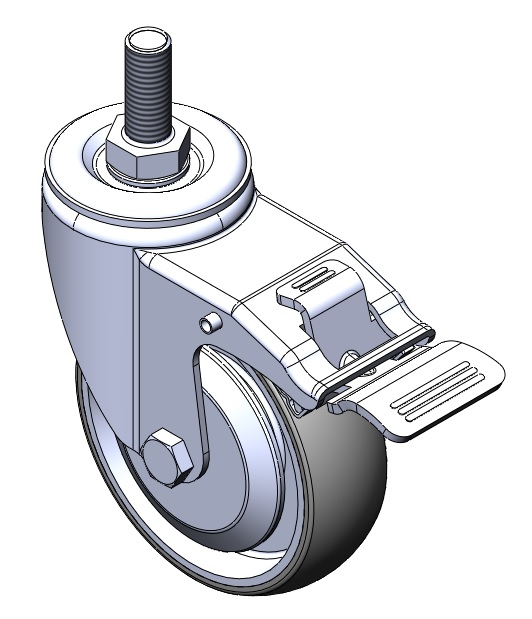

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 1/2＂-12牙
　　Threaded Length 32mm
　　Offset 33mm　
　　Swivel Interference 240mm　
　　Overall Height 131mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 230kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 345kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
