Zine-Plated, Mounting Type - Top Plate.
Aluminum wheel center, High Quality Polyurethane Wheel Tread.
Brown color, Bearing—Ball Bearings.
Wheel Center: aluminum core

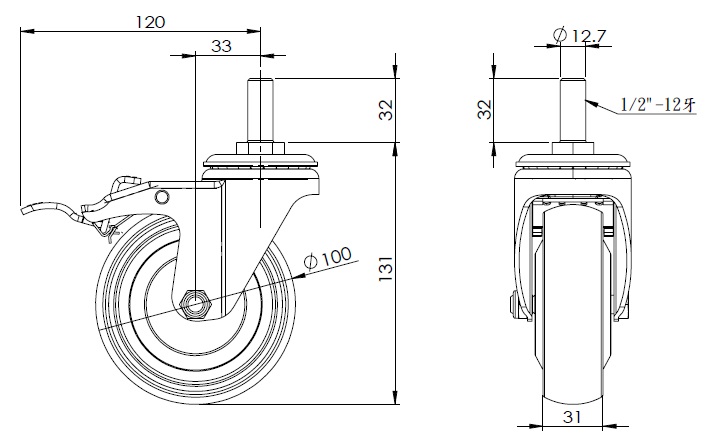

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
1/2＂-12牙
Threaded Length
32mm
Offset
33mm
Swivel Interference
240mm
Overall Height
131mm
Swivel Radius
120mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
230kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
345kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.75kgs
Standard
ISO22883
