Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　PPR Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　TW-4113005002092 　　　
　　　　　 　　　
Portable Casters, mortise-and-tenon Stamping Fork—Ø22x56L; Zine-Plated surface; mortise-and-tenon Mounting Type device with snap rings; impact-resistant polypropylene Wheel Center; High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread; dark gray; Bearing—Ball Bearings.
　　Wheel surface: TPR
　　Wheel Center:PP

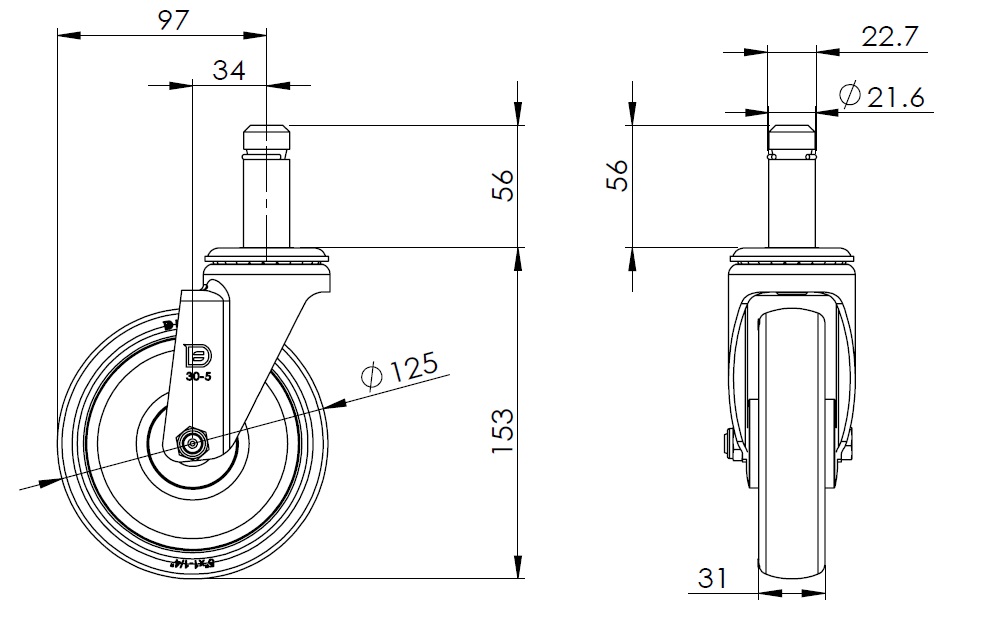

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

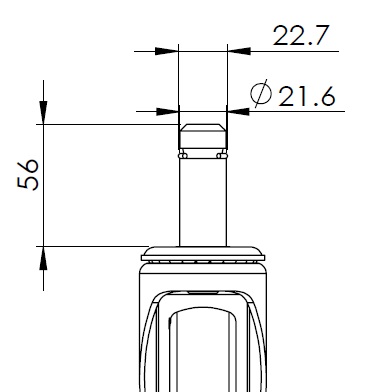

　　Stem Diameter 21.6mm　
　　Stem Length 56mm　
　　Offset 34mm　
　　Swivel Interference 194mm　
　　Overall Height 153mm　
　　Swivel Radius 97mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.80kgs　
　　Standard ISO22883
　　
　　
