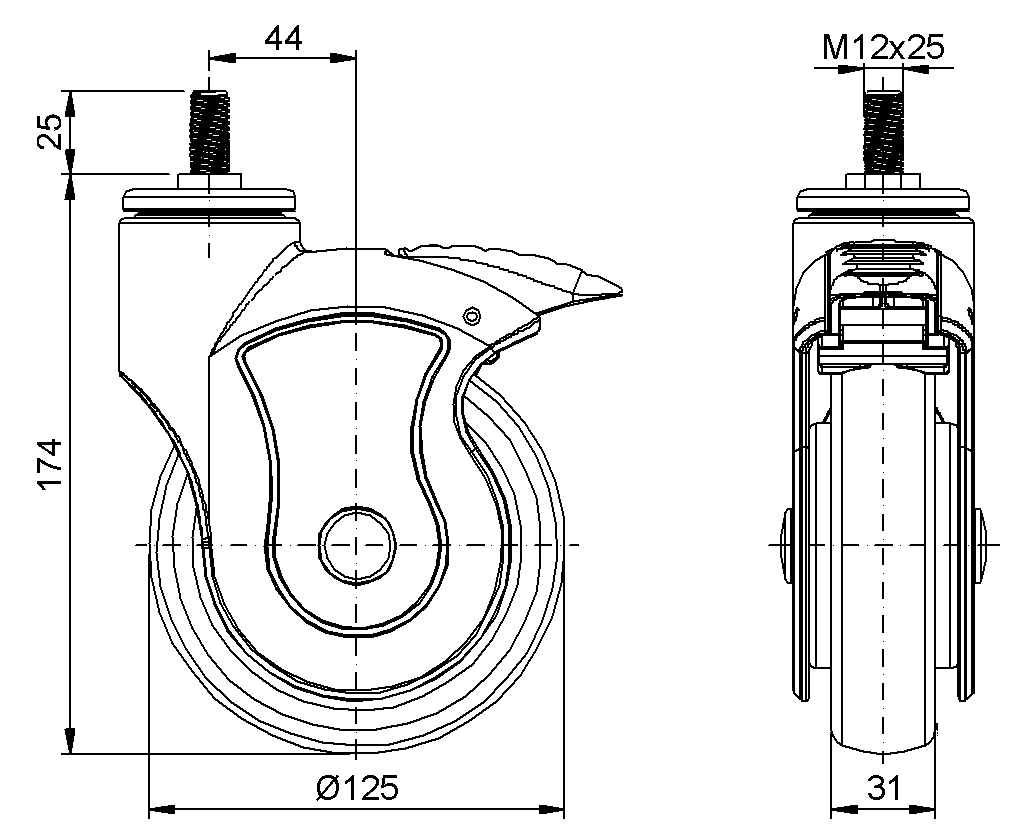

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
M12
Threaded Length
25mm
Offset
44mm
Swivel Interference
249mm
Overall Height
174mm
Swivel Radius
124.5mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
90kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
135kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.61kgs
Standard
ISO22881
125 mm
90 Kgs
174 mm
