    Product Information Sheet
1138 38 Series Central Locking Caster Series
　　Resolute (Pearlescent dark gray) Wheel Diameter x Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11380400458040 　　　
Central lockinging with hexagonal cam control on short lever, Total Brake Caster. Single Bolthole engagement. Punching. Pressure foot bracket.
Zine-Plated surface, hollow Mounting Type device.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Pearl dark gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

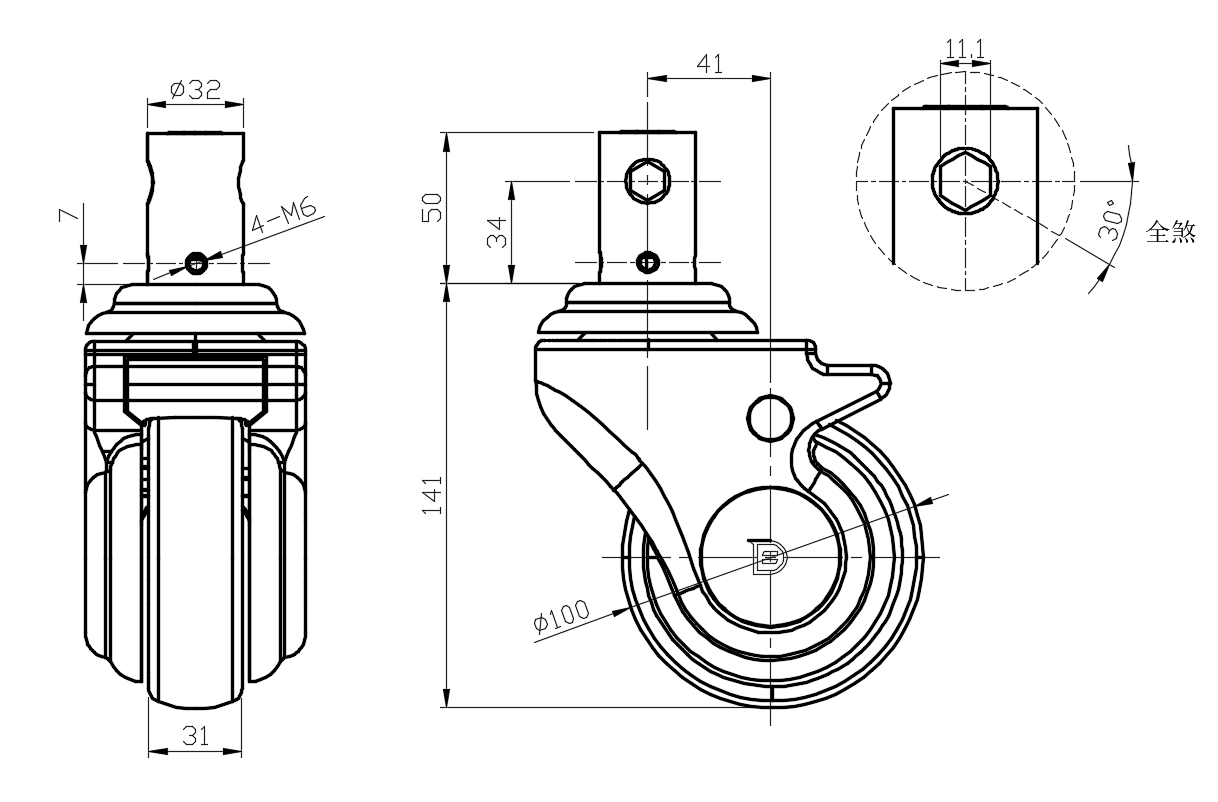

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 32mm　
　　Stem Length 50mm　
　　Offset 41mm　
　　Swivel Interference 188mm　
　　Overall Height 141mm　
　　Swivel Radius 94mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.93kgs　
　　Standard ISO22881
　　
　　
