    Product Data Sheet
1138 38 Series Central Locking Caster Series
　　Resolute (Pearlescent dark gray) Wheel Diameter x Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11380500458060 　　　
Long Stem Central Locking, Total Brake or neutral castor. Single Bolthole Studded Riveted foot Surface Zine-Plated, Mounting Type - Single Bolthole Impact resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl grey, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

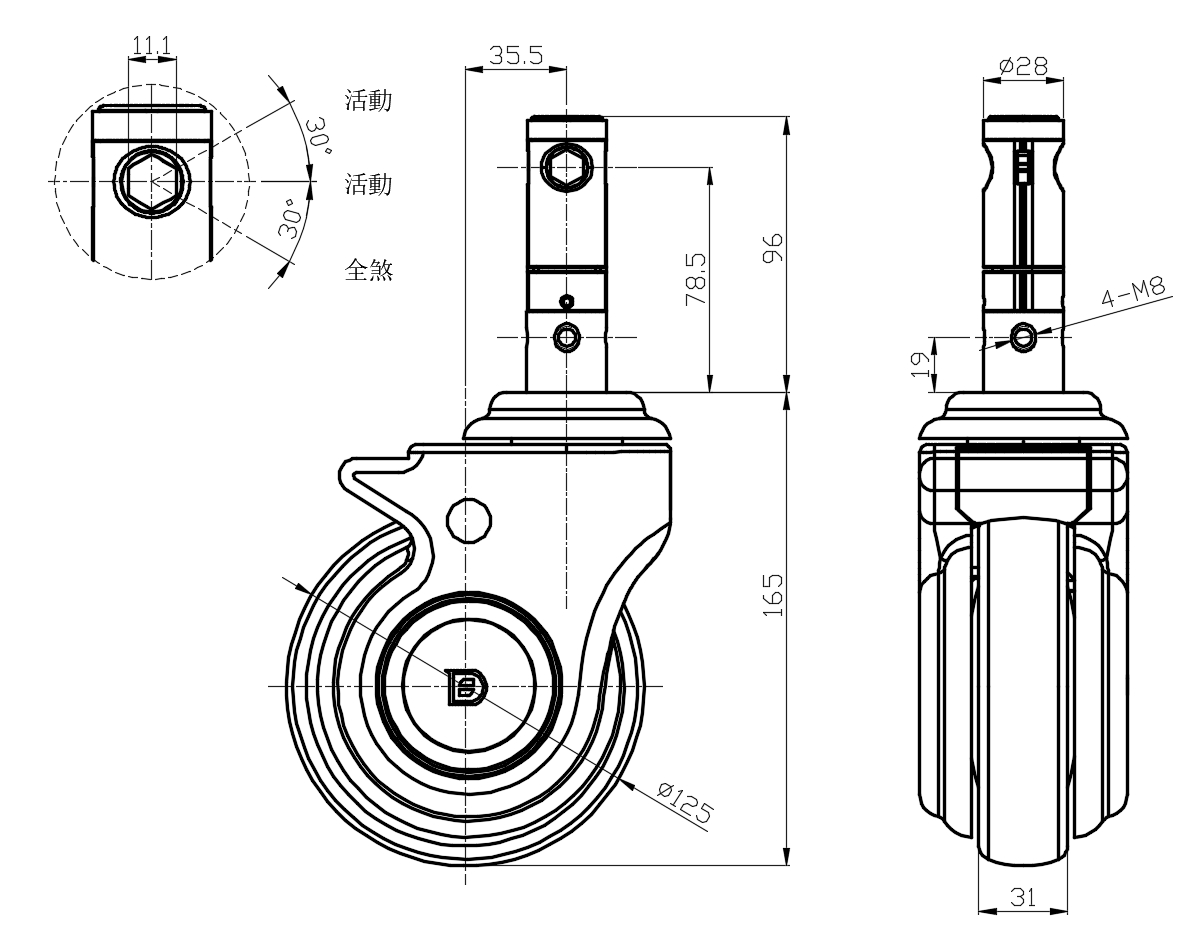

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 96mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 165mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 147kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 220.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.28kgs　
　　Standard ISO22881
　　
　　
