    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 30mm
　　EAN
　　　　　 　　　
　　YJ-11390300061013 　　　

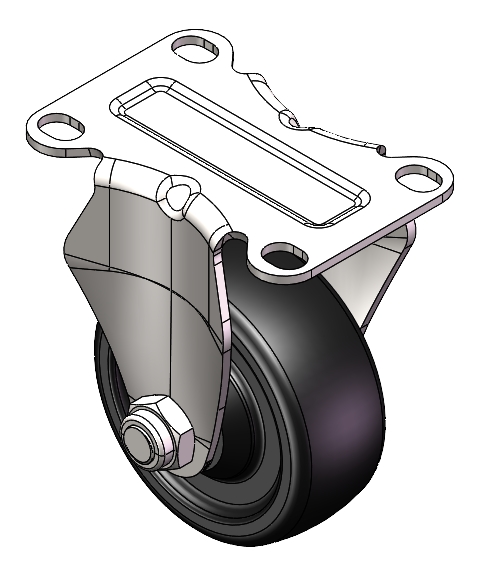

Rigid castors, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Extended control lever surface, Top Plate installation Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheels—Plain Bearing
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

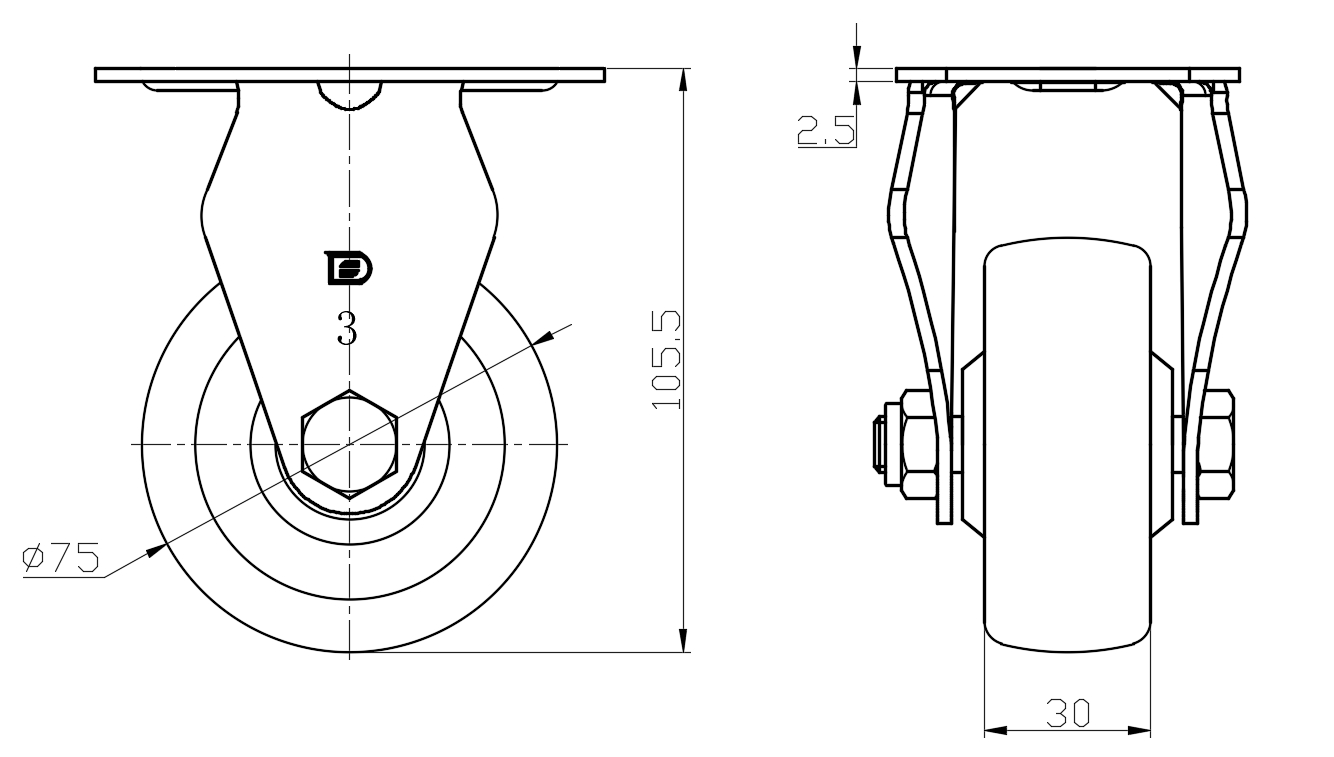

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 30mm　
　　Wheel Bearing Wheel With Plain Bearing

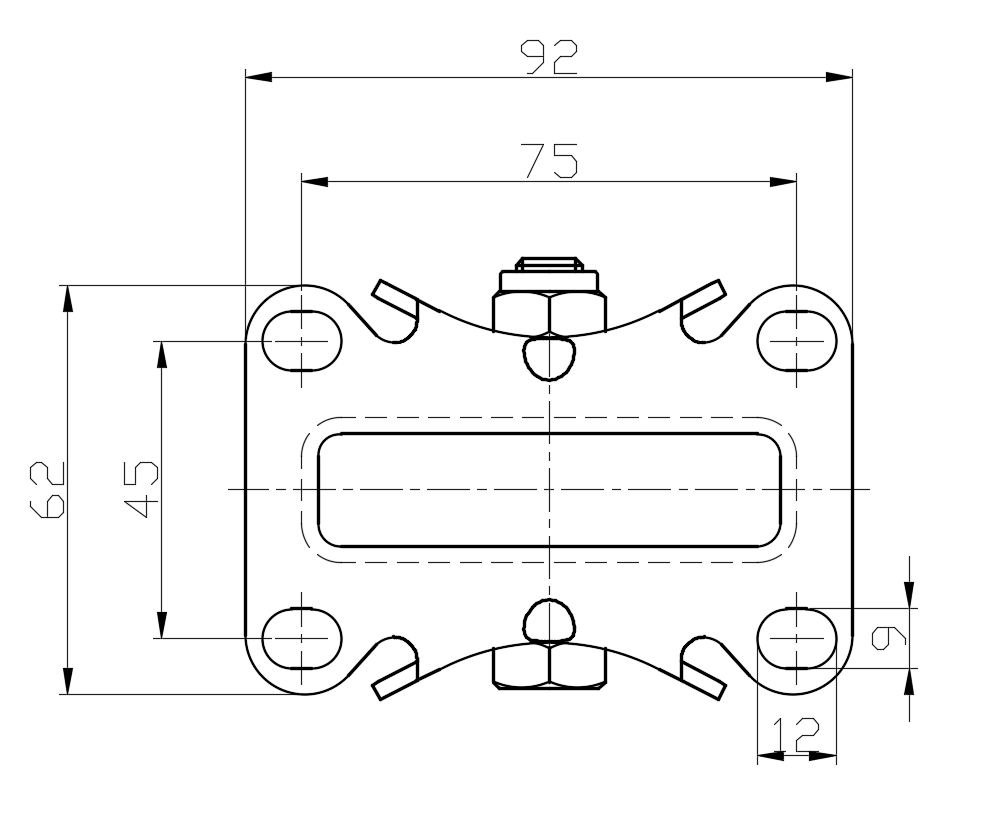

　　Angle Bar Plate Size 92 x 62mm　
　　Angle Bar Plate Specification 75 x 45mm　
　　Angle Bar Plate Hole 12 x 9mm　
　　Overall Height 105.5mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.6kgs　
　　Standard ISO22883
　　
　　
