    Product Data Sheet

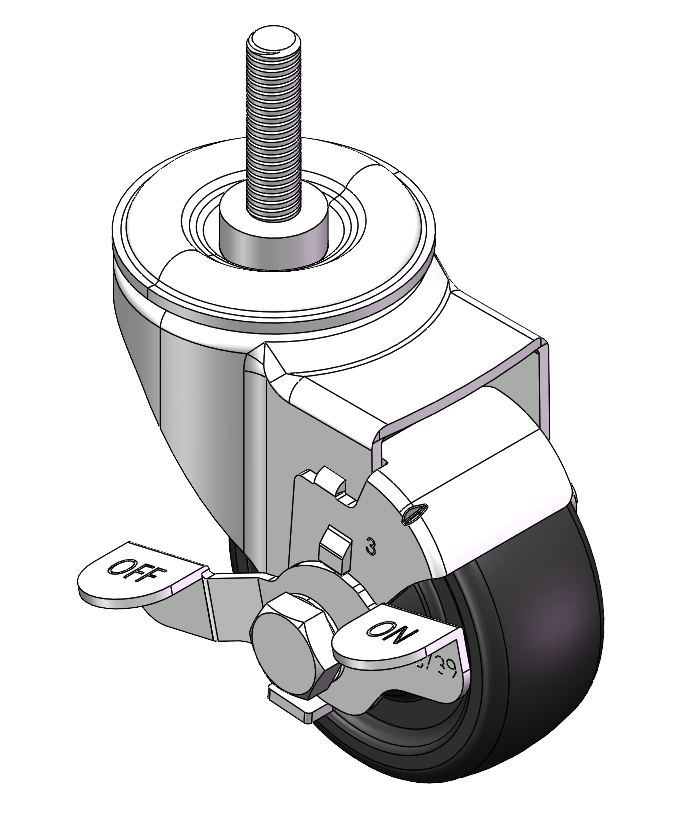

1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 30mm
　　EAN
　　　　　 　　　
　　YJ-11390300066083 　　　
Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 3/8"-16 Zine-Plated, Mounting Type - Threaded Stem Reinforced Polypropylene Wheel Center, High-Quality Resilient Rubber Wheel Tread Bearing – Plain Bearing
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

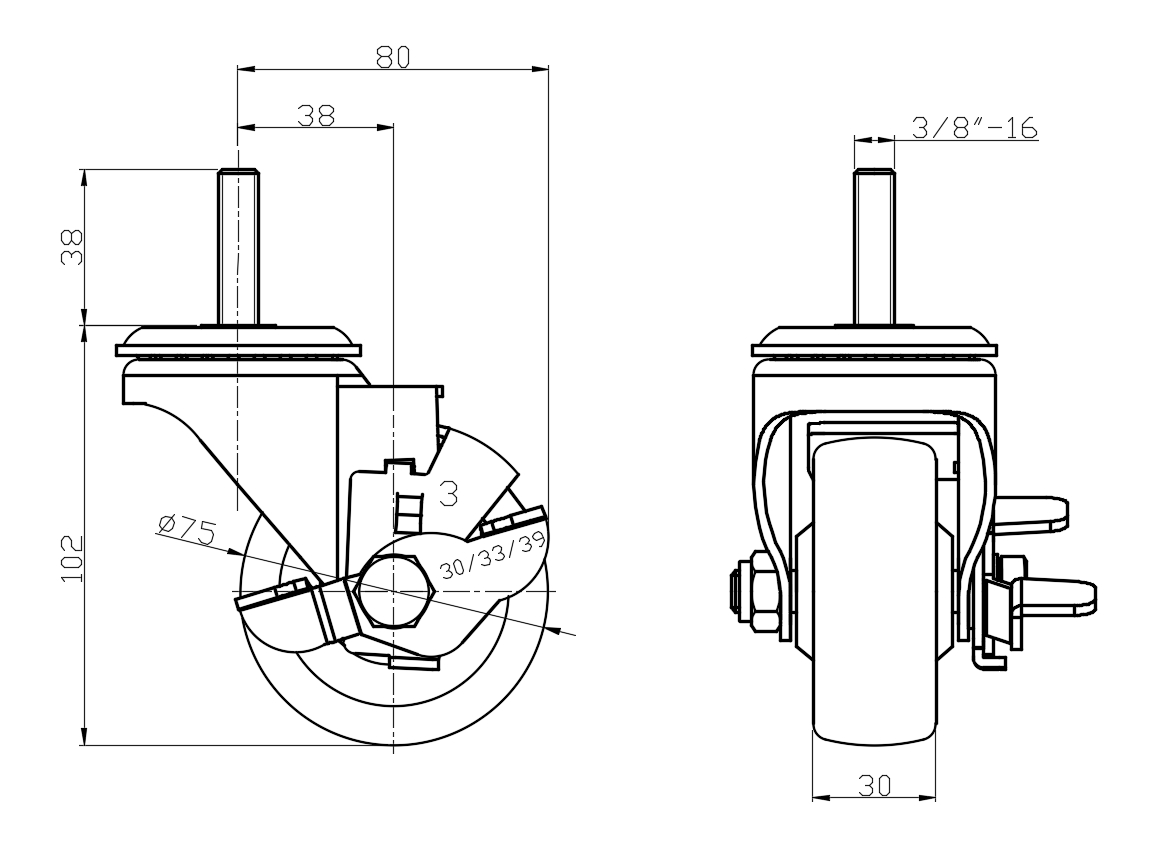

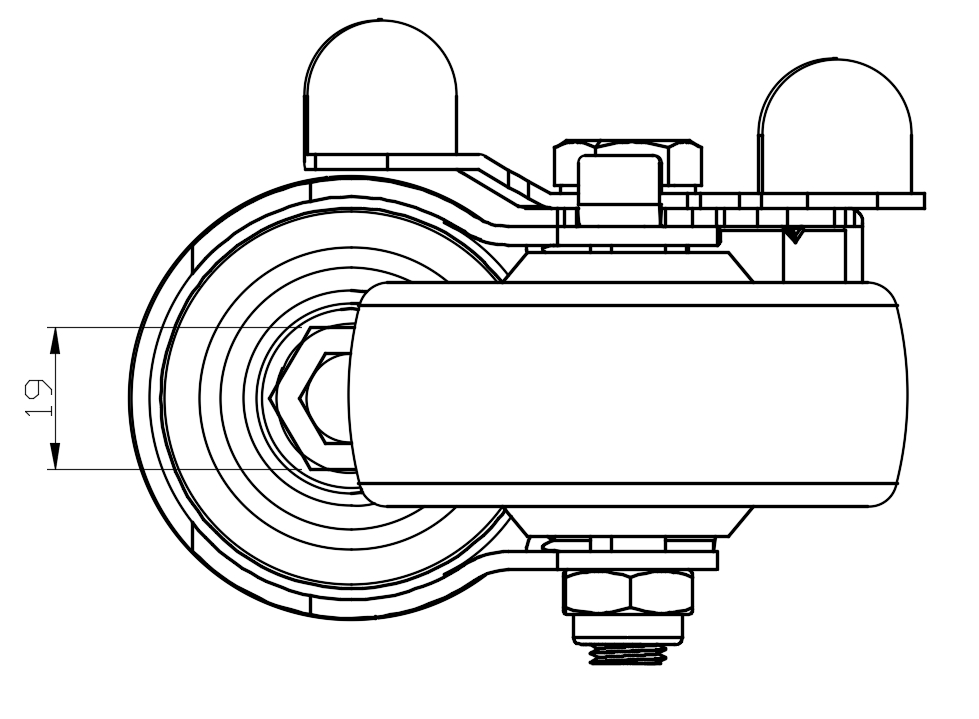

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 30mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 3/8＂-16
　　Threaded Length 38mm
　　Offset 38mm　
　　Swivel Interference 160mm　
　　Overall Height 102mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.69kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

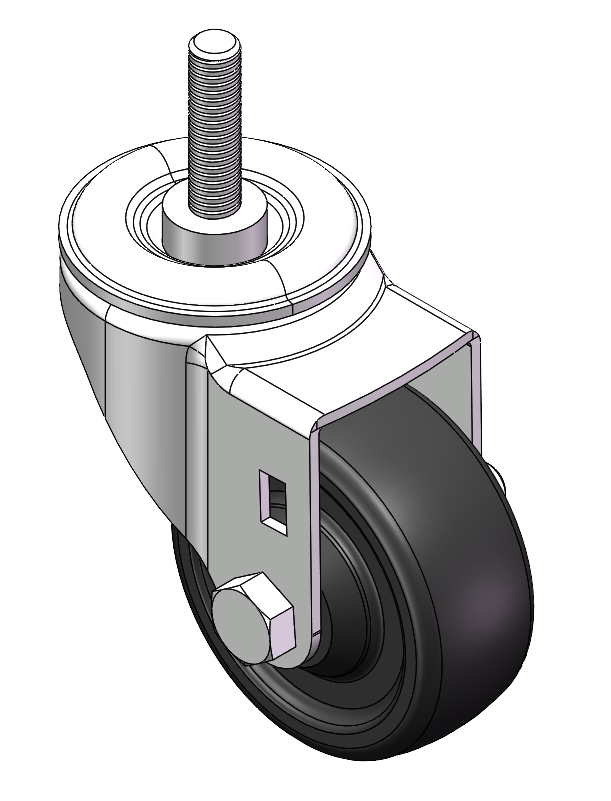

1139 Medium Duty General Purposes Caster Series
