    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 125 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11390500065023 　　　
Swivel Caster, thread-Riveted Stamping Fork—1/2"-13"
Zine-Plated, Mounting Type - Threaded Stem
Reinforced Polypropylene core, High-Quality Resilient Rubber Wheel Tread
Bearing –tube-type
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

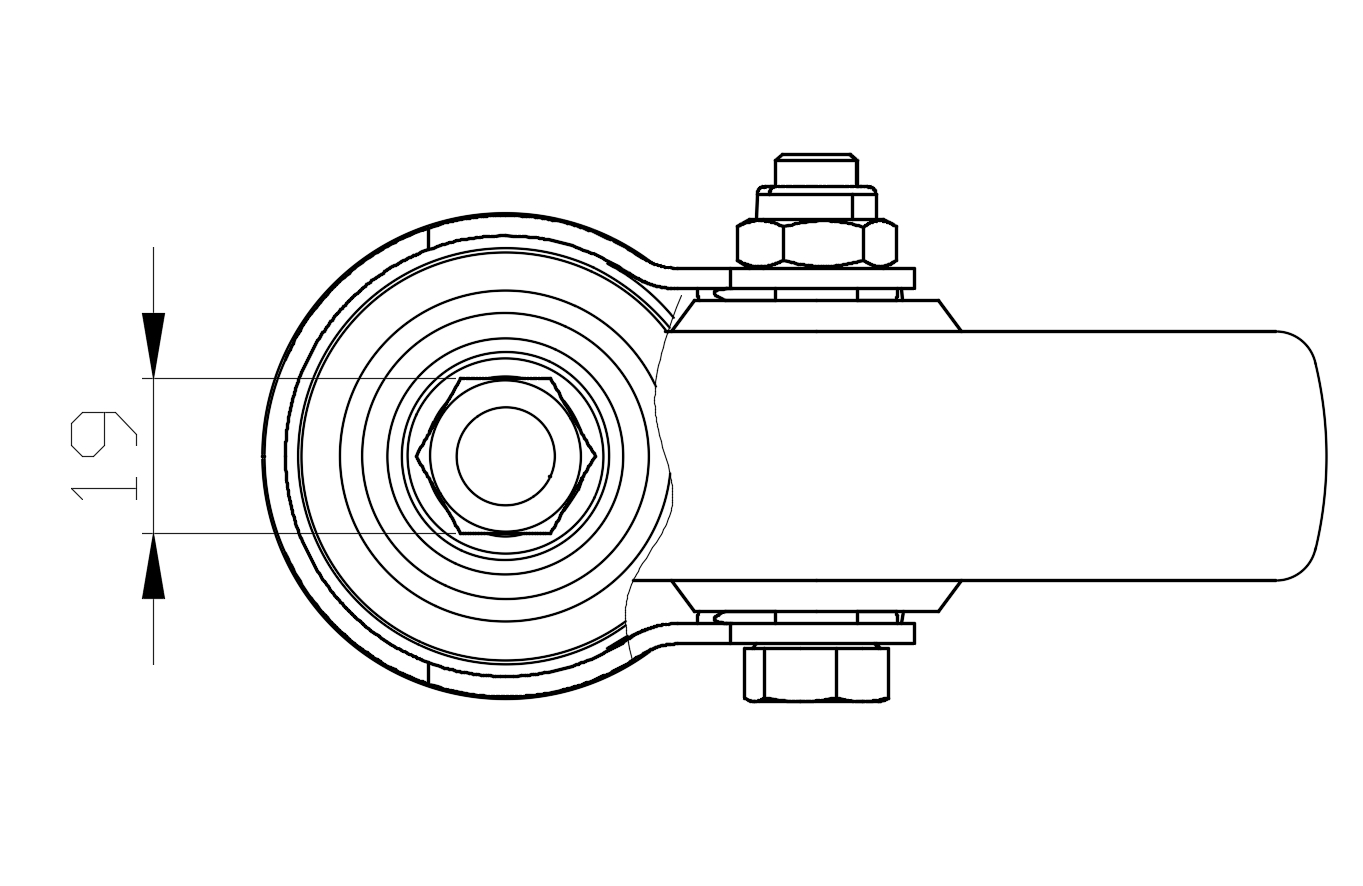

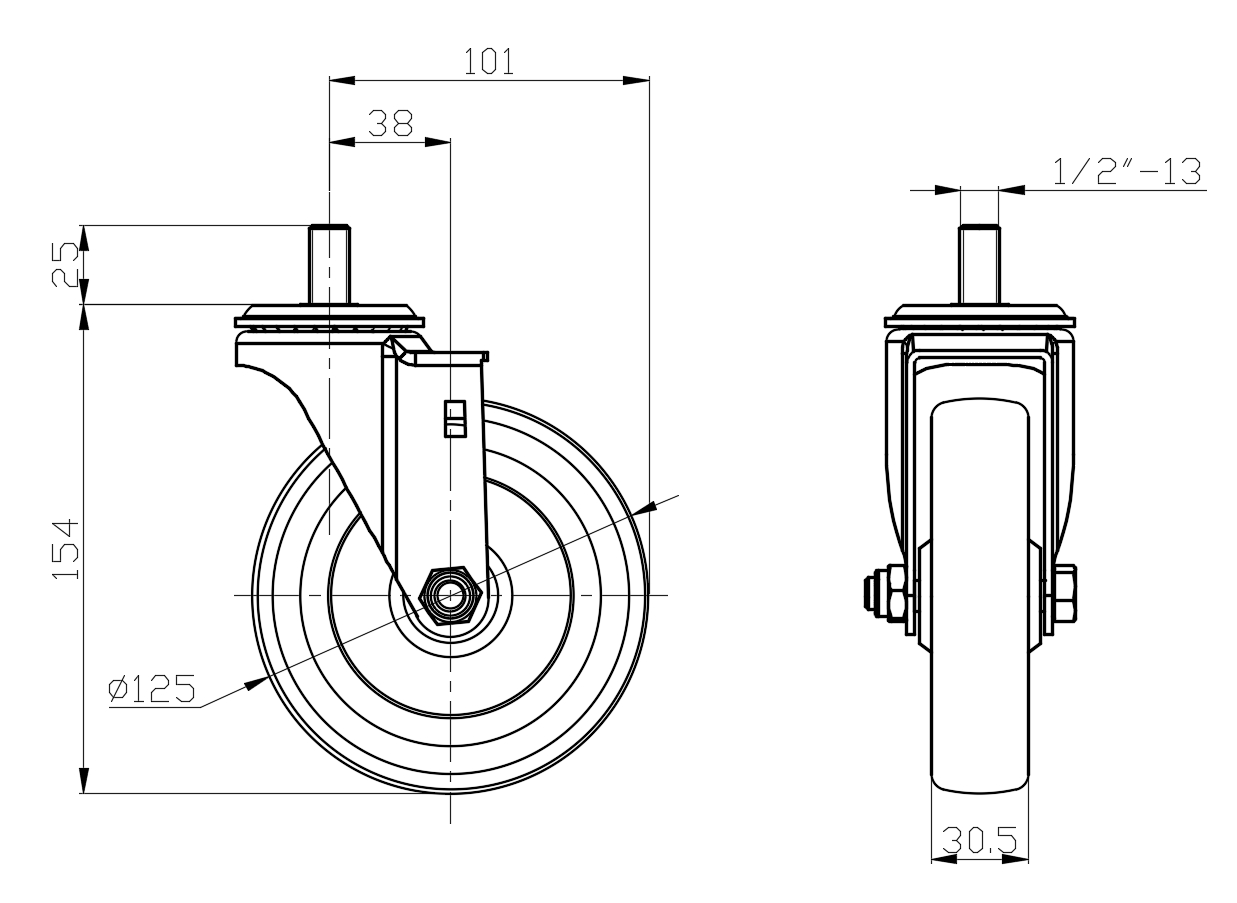

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 1/2＂-13
　　Threaded Length 25mm
　　Offset 38mm　
　　Swivel Interference 202mm　
　　Overall Height 154mm　
　　Swivel Radius 101mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.99kgs　
　　Standard ISO22883
　　
　　
