    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PU (red flat) Wheel Diameter x Wheel Width 75 × 32mm
　　EAN
　　　　　 　　　
　　YJ-11390300331013 　　　

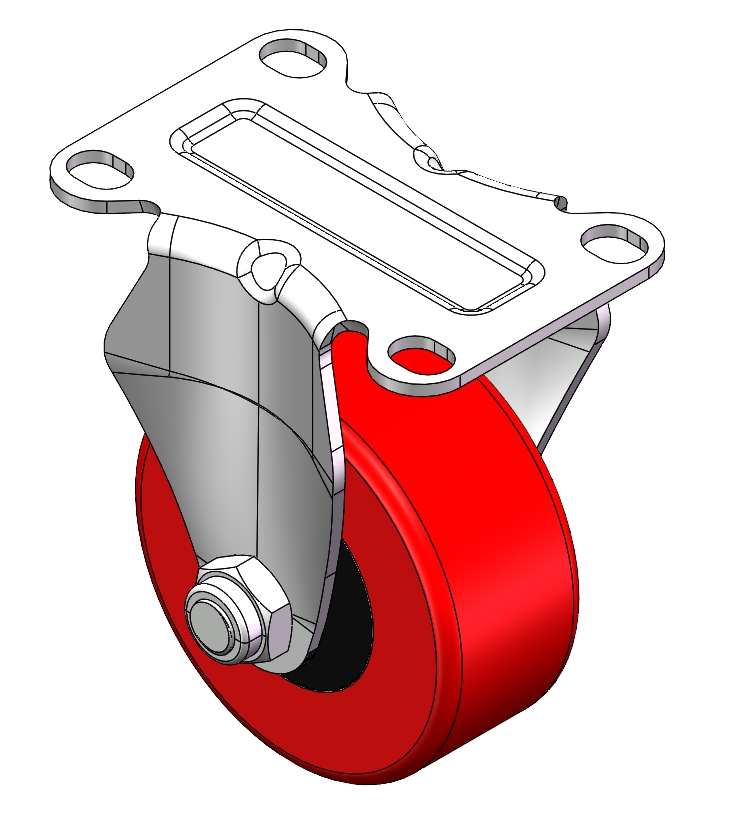

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red color. Bearings: Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

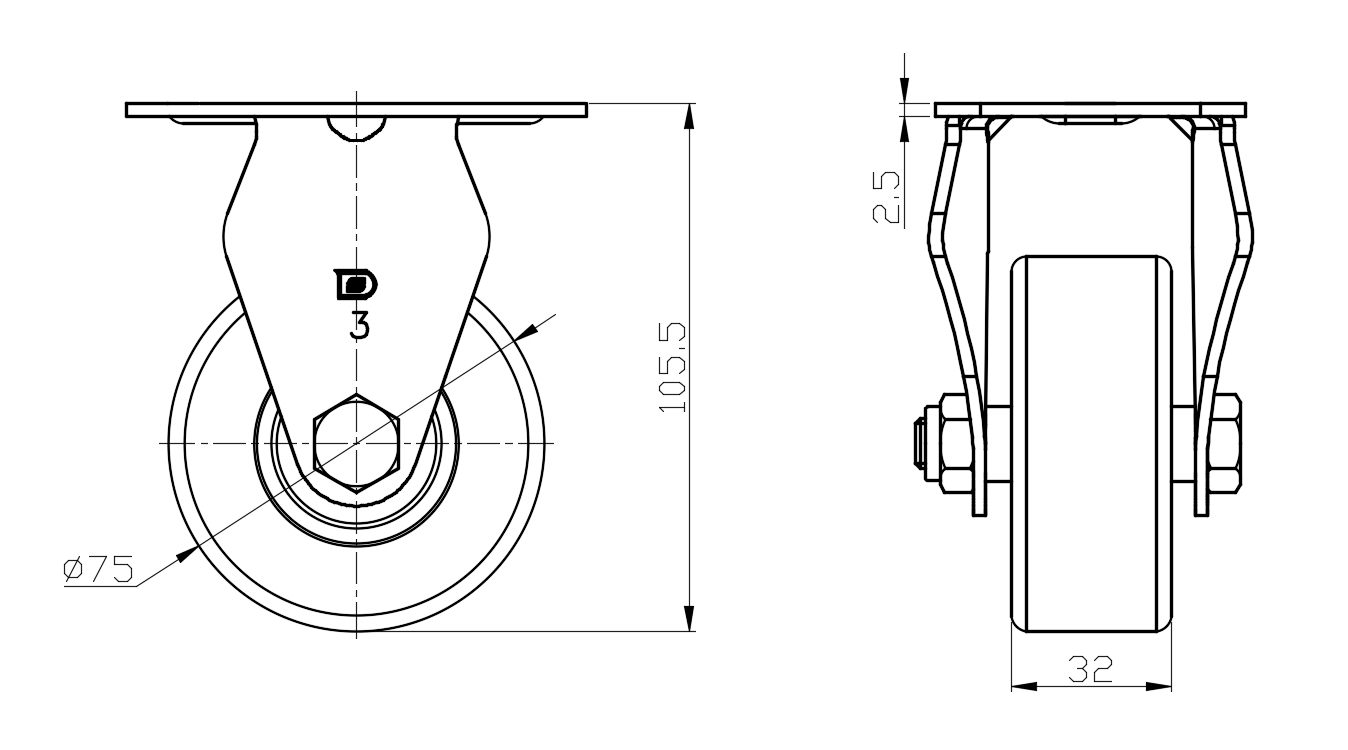

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 92 x 62mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 105.5mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.79kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1139 Medium Duty General Purposes Caster Series
PU (red flat) Wheel Diameter x Wheel Width 75 × 32mm
YJ-11390300332013
75 mm 90 Kgs 105.5 mm
Swivel Caster with Riveted Fork and Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Top Plateed (4T) Mounting Type system
Cast Iron core, High Quality Polyurethane Wheel Tread
Red, Bearing - Ball Bearings.
1139 Medium Duty General Purposes Caster Series
PU (red flat) Wheel Diameter x Wheel Width 75 × 32mm
YJ-11390300334023
150 mm 90 Kgs 105.5 mm

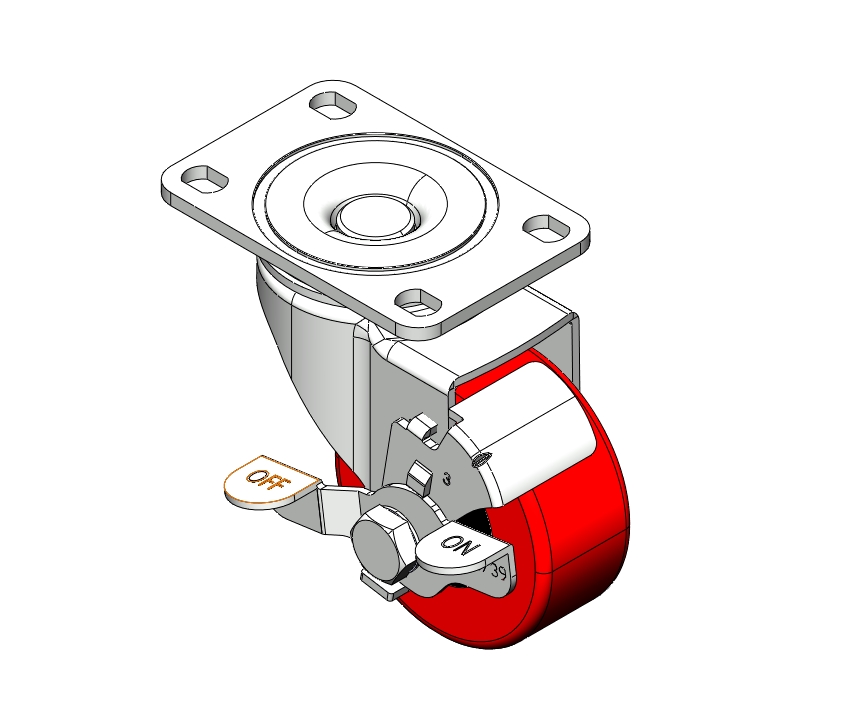

Casters with Total Brakes and a With locking system. Top Plate with Riveted, Stamping Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Top Plate (4T) Mounting Type system.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red color, Bearing with Ball Bearings.
1139 Medium Duty General Purposes Caster Series
PU (red flat) Wheel Diameter x Wheel Width 75 × 32mm
YJ-11390300334013
75 mm 90 Kgs 105.5 mm

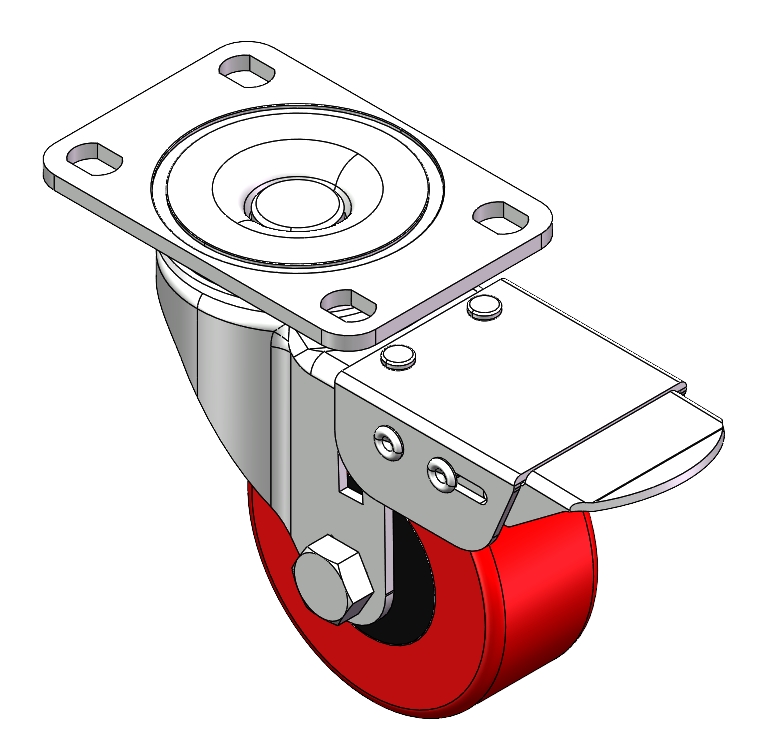

Castors with Side Brake and Locking system. Top Plate Riveted Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Extended control lever surface, Top Plate (4T) installation device Cast Iron Wheel Center, high quality polyurethane wheel tread Iron red, Bearing—Ball Bearing.
