    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
　　EAN
　　　　　 　　　
　　YJ-11390400334013 　　　

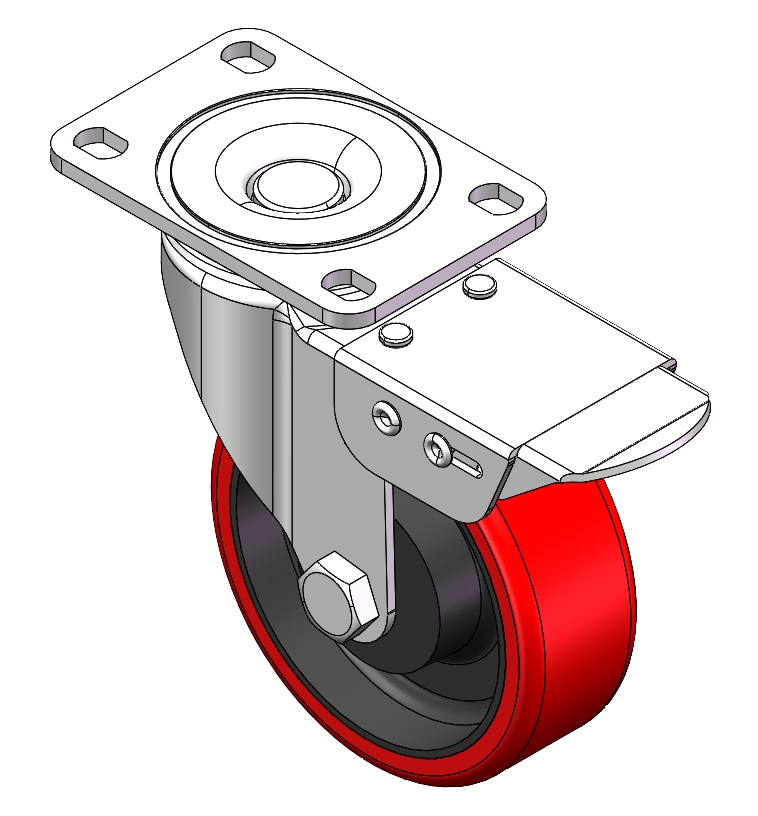

Casters with Total Brakes and a With locking system. Top Plate with Riveted, Stamping Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Top Plate (4T) Mounting Type system.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red color, Bearing with Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

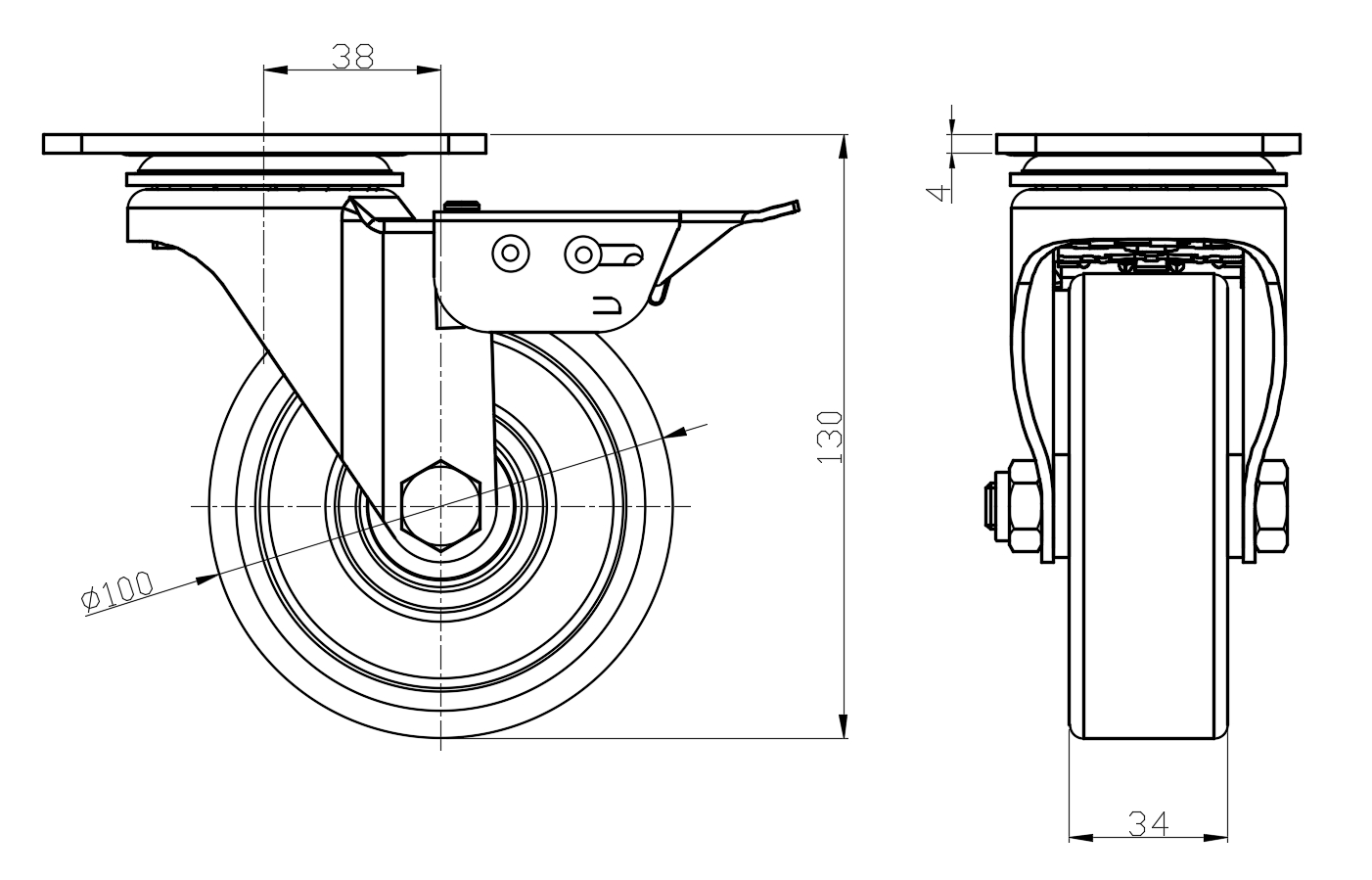

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

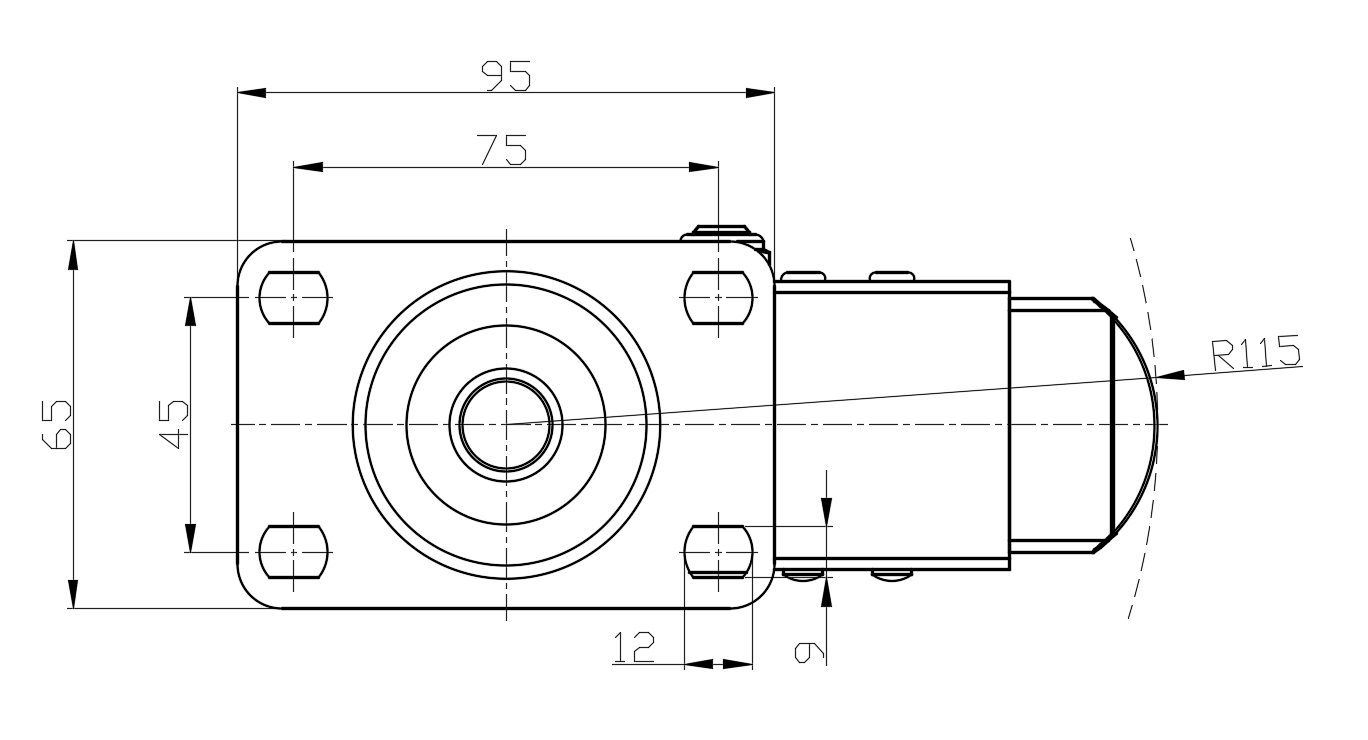

　　Plate Size 95 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 38mm　
　　Swivel Interference 230mm　
　　Overall Height 130mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.4kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1139 Medium Duty General Purposes Caster Series
PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
YJ-11390400331013
100 mm 120 Kgs 130 mm

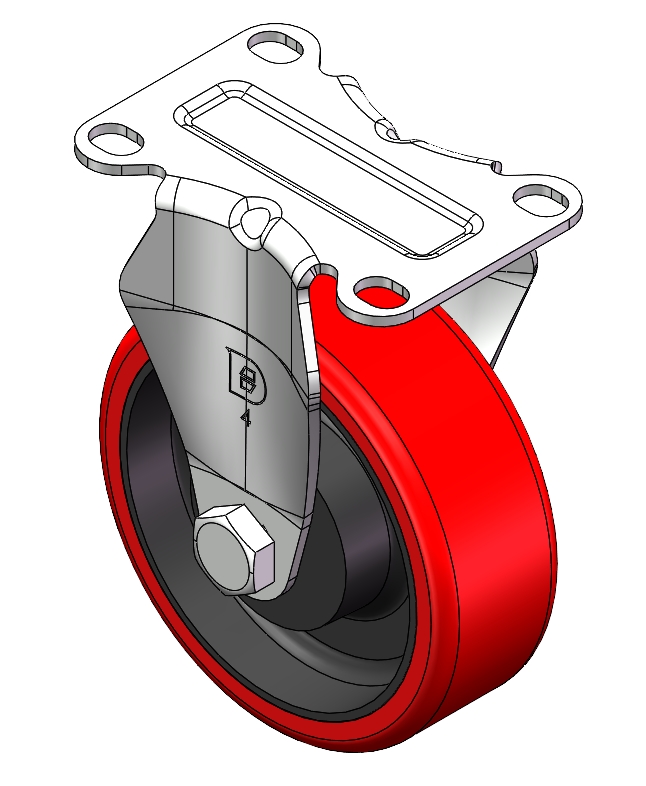

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Cast Iron core with High Quality Polyurethane Wheel Tread.
Red color. Bearings: Ball Bearings.
1139 Medium Duty General Purposes Caster Series
PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
YJ-11390400332013
100 mm 120 Kgs 130 mm

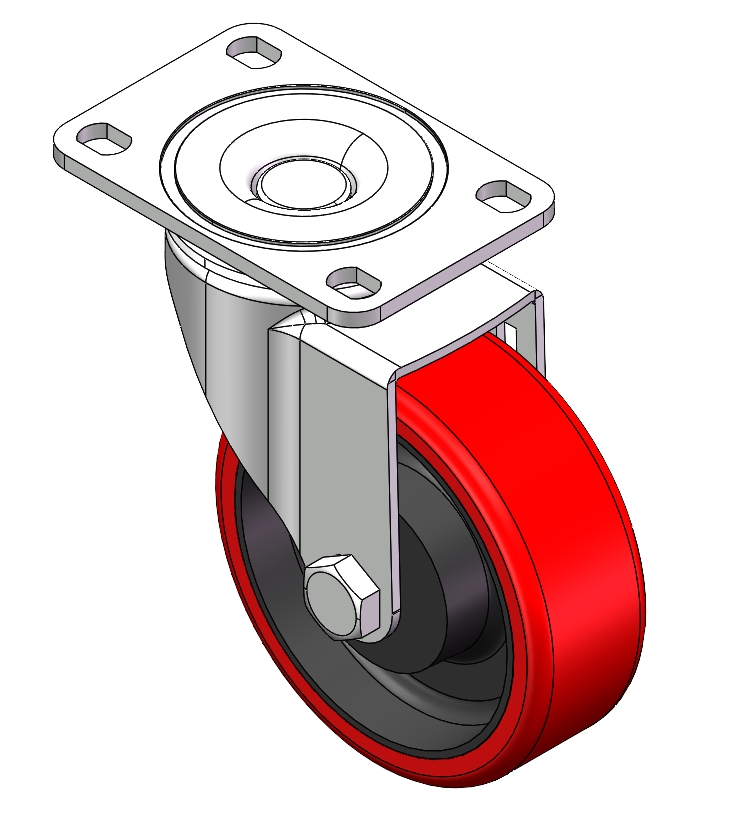

Swivel Caster with Riveted Fork and Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
