    Product Data Sheet

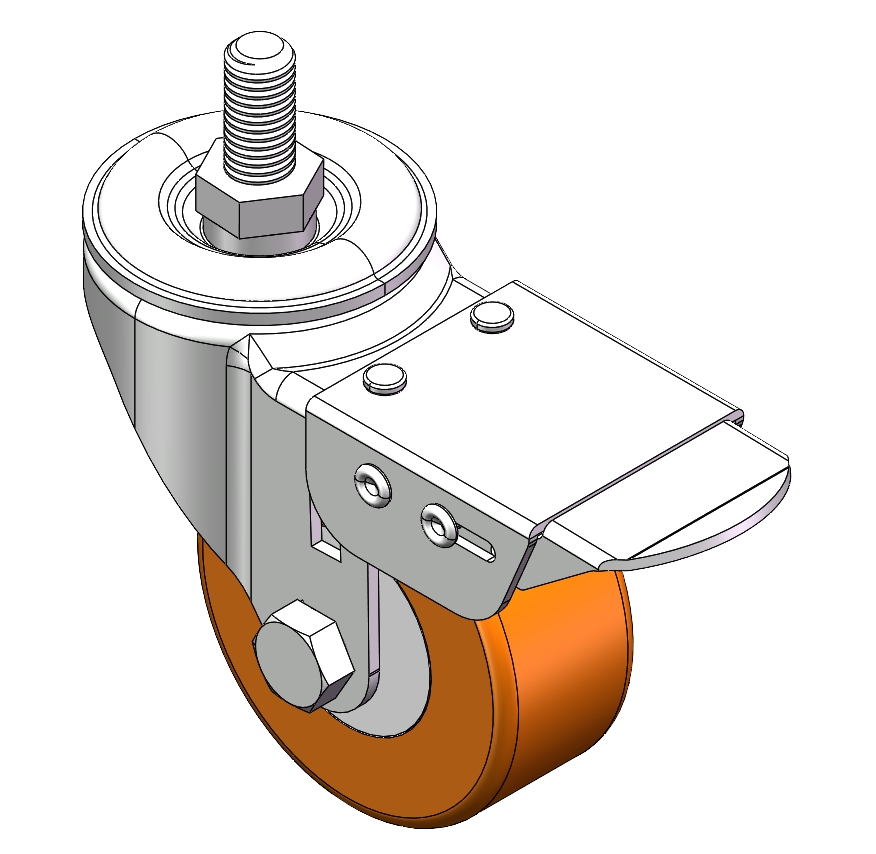

1139 Medium Duty General Purposes Caster Series
　　QPU (Brown flat) Wheel Diameter x Wheel Width 75 × 32mm
　　EAN
　　　　　 　　　
　　YJ-11390300536013 　　　
Casters with Total Brakes and a With locking system. Threaded Stem Riveted Pressed Fork—M12-P1.75.
Zine-Plated, Mounting Type - Threaded Stem.
Cast Iron core, High Quality Polyurethane Wheel Tread.
Brown color, Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

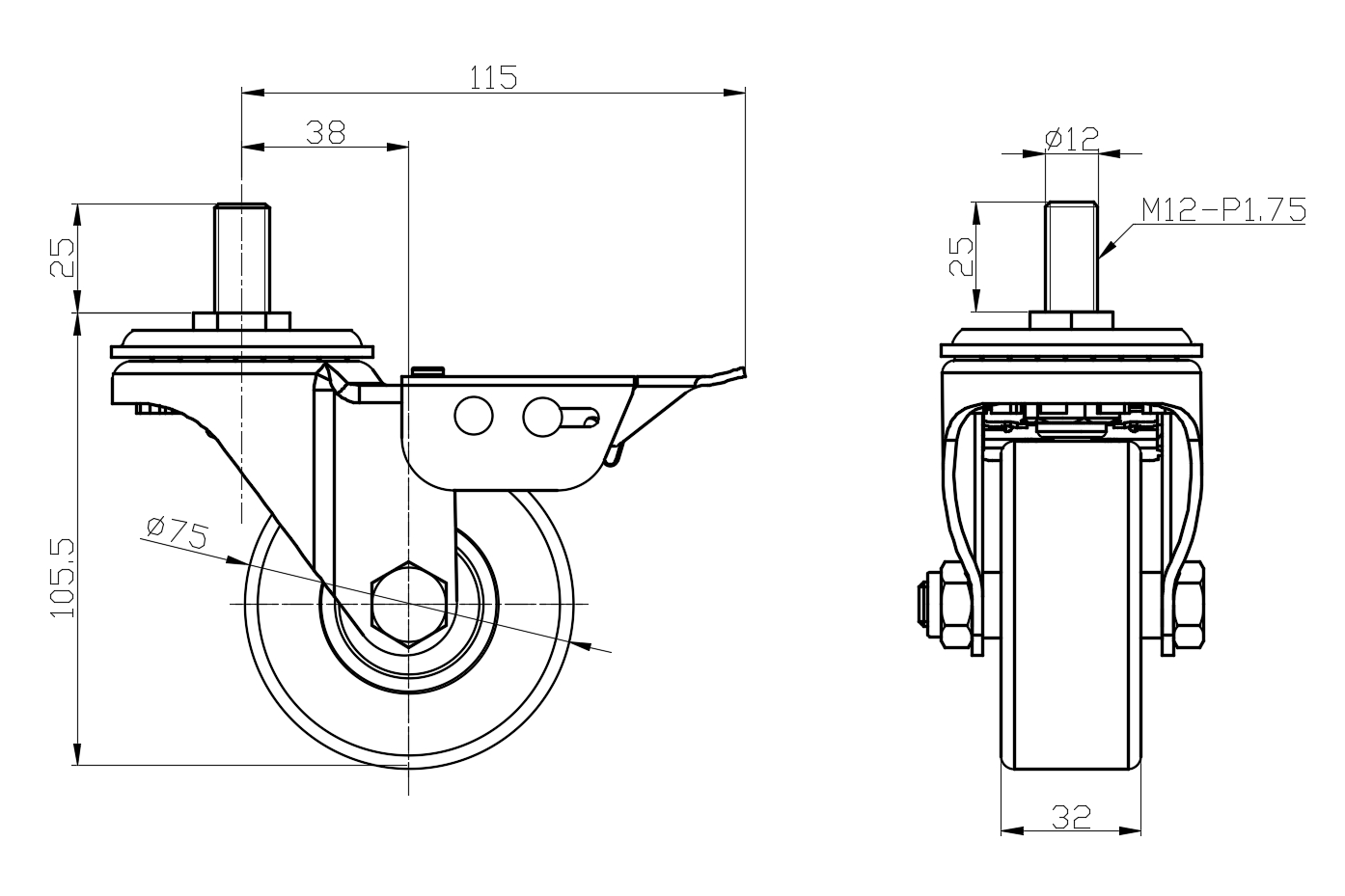

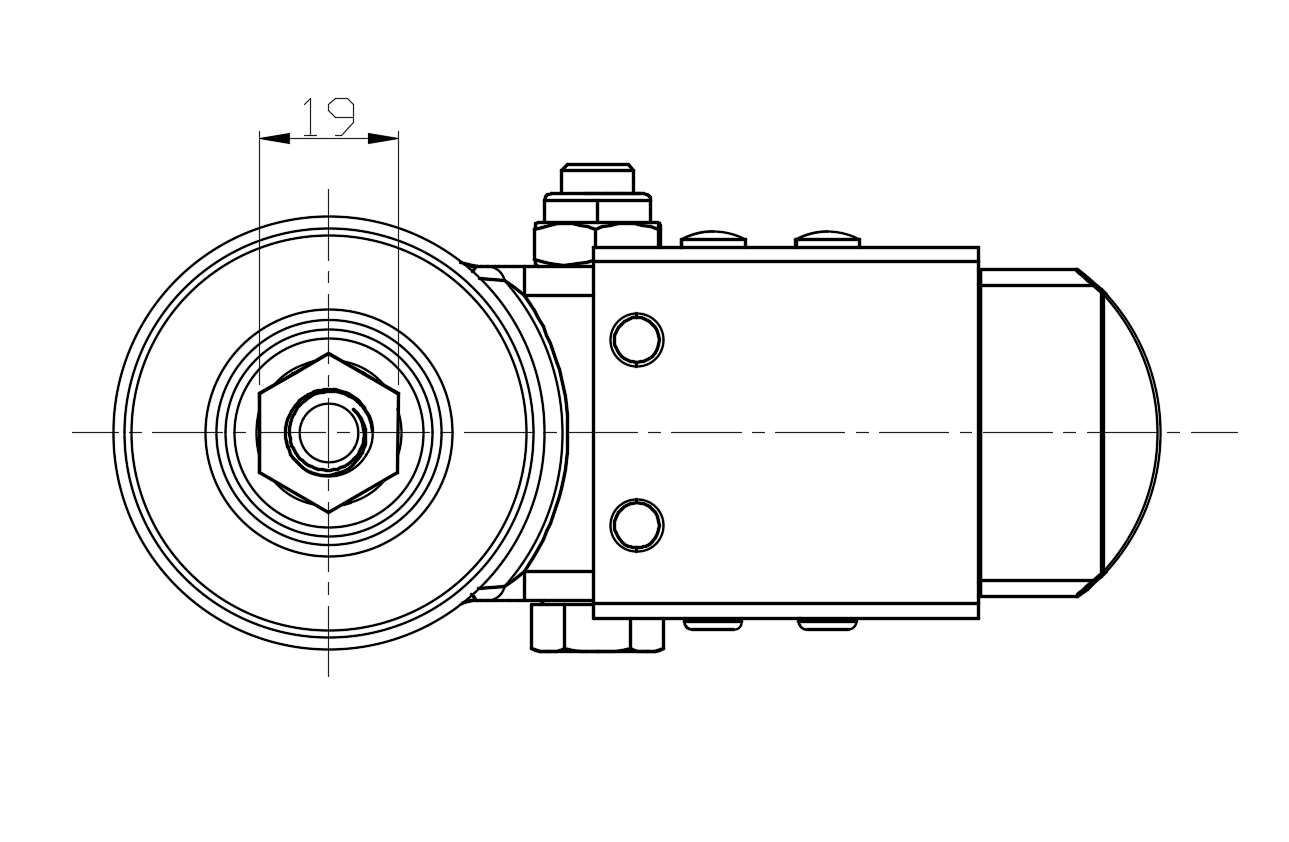

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12-P1.75
　　Threaded Length 25mm
　　Offset 38mm　
　　Swivel Interference 230mm　
　　Overall Height 105.5mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.07kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

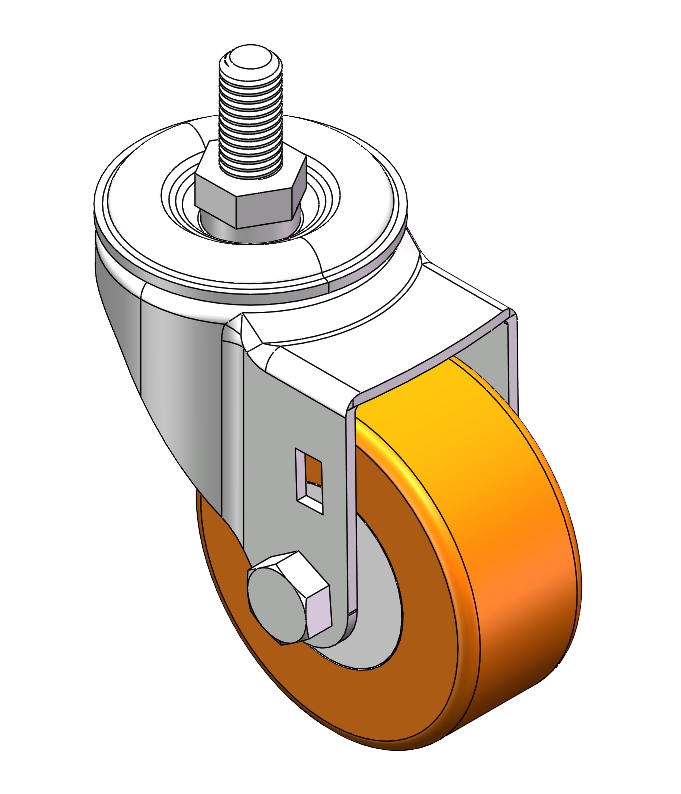

1139 Medium Duty General Purposes Caster Series
