    Product Data Sheet

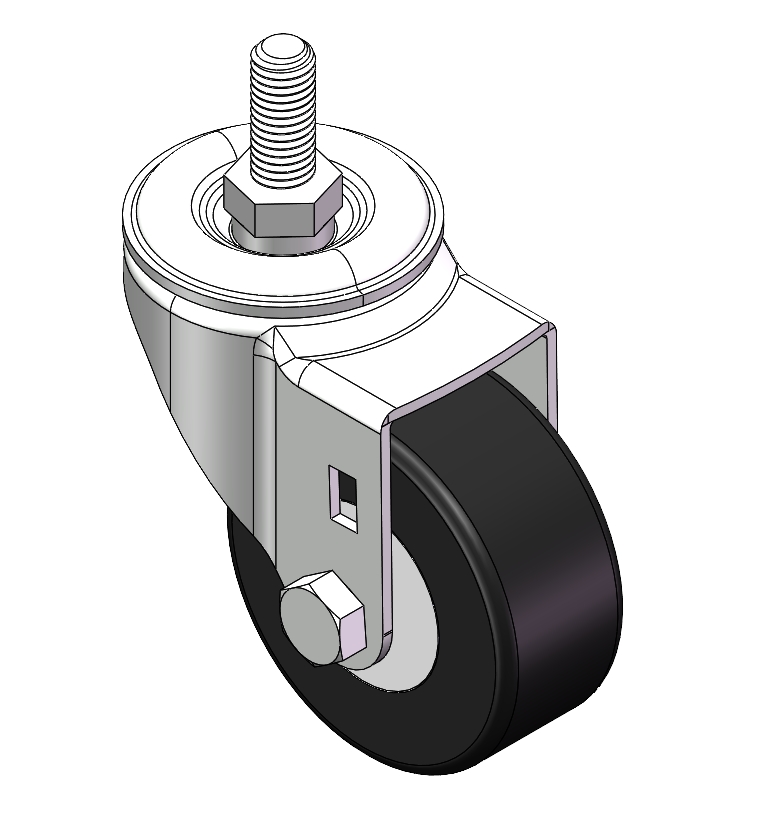

1139 Medium Duty General Purposes Caster Series
　　PU (Black flat) Wheel Diameter x Wheel Width 75 × 32mm
　　EAN
　　　　　 　　　
　　YJ-11390300335013 　　　
Swivel Caster, thread-Riveted Stamping Fork—M12-P1.75 Extended control lever surface, Mounting Type - Threaded Stem device Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Black, Bearing—Ball Bearing.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: cast iron core

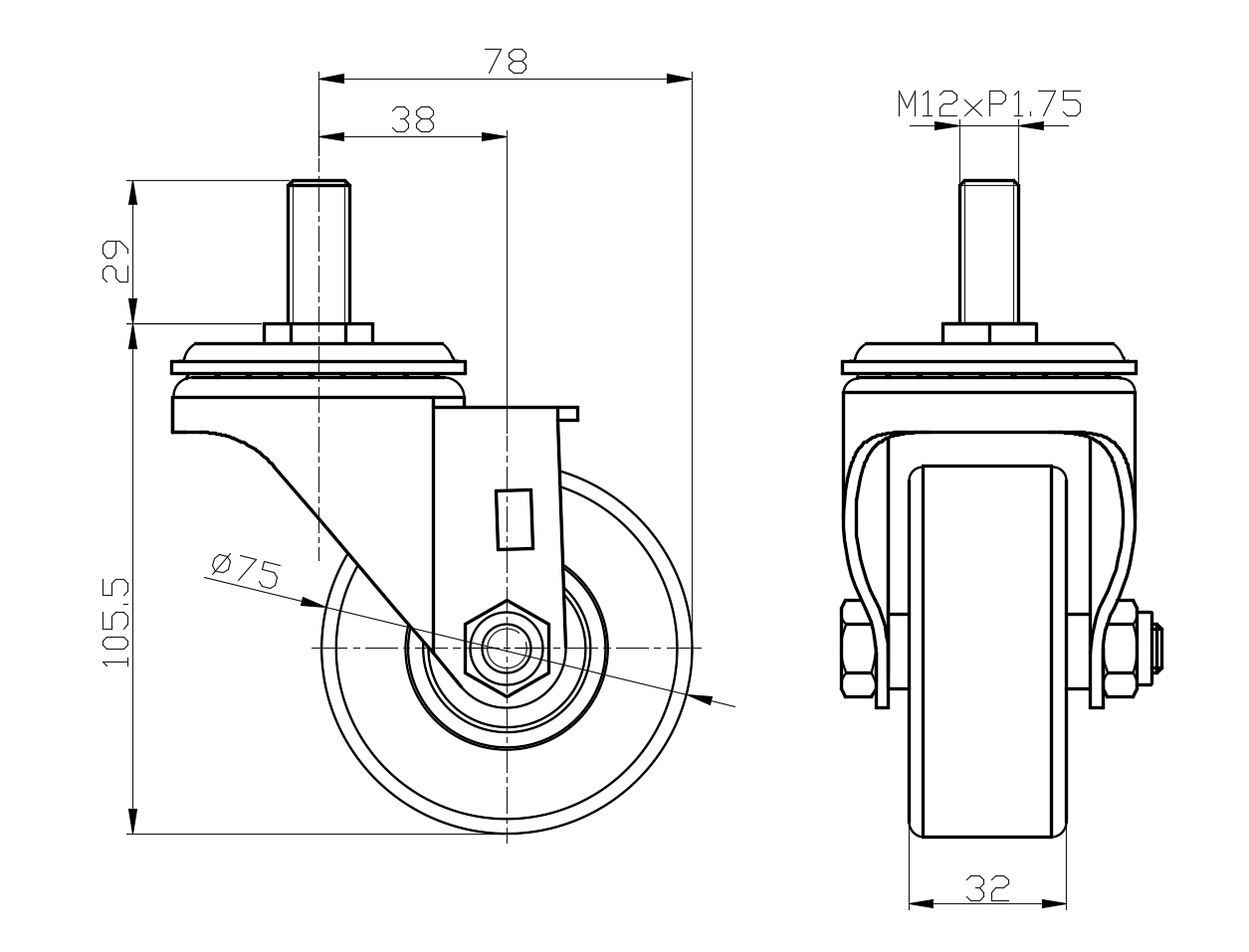

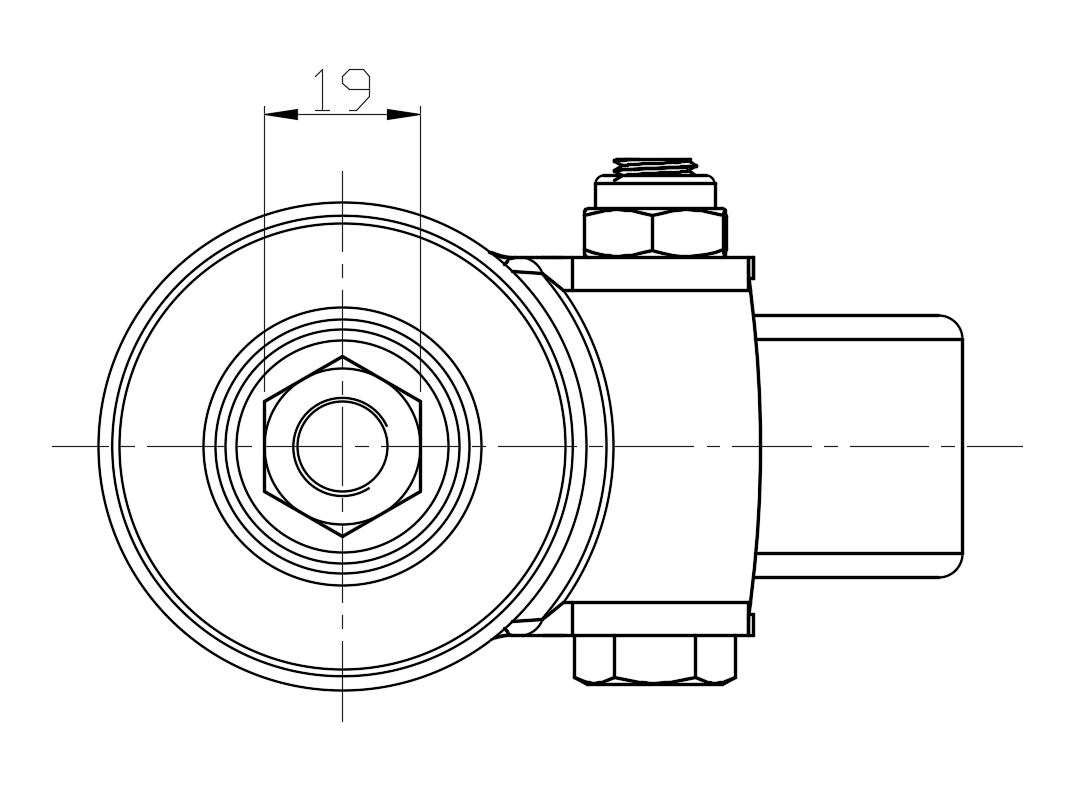

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12-P1.75
　　Threaded Length 29mm
　　Offset 38mm　
　　Swivel Interference 156mm　
　　Overall Height 105.5mm　
　　Swivel Radius 78mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.94kgs　
　　Standard ISO22883
　　
　　
