YJ-11390400605013
Zine-Plated, Mounting Type - Threaded Stem
Aluminum core, High Quality Polyurethane Wheel Tread
Brown, Bearing—Ball Bearing.
Wheel Center: aluminum core

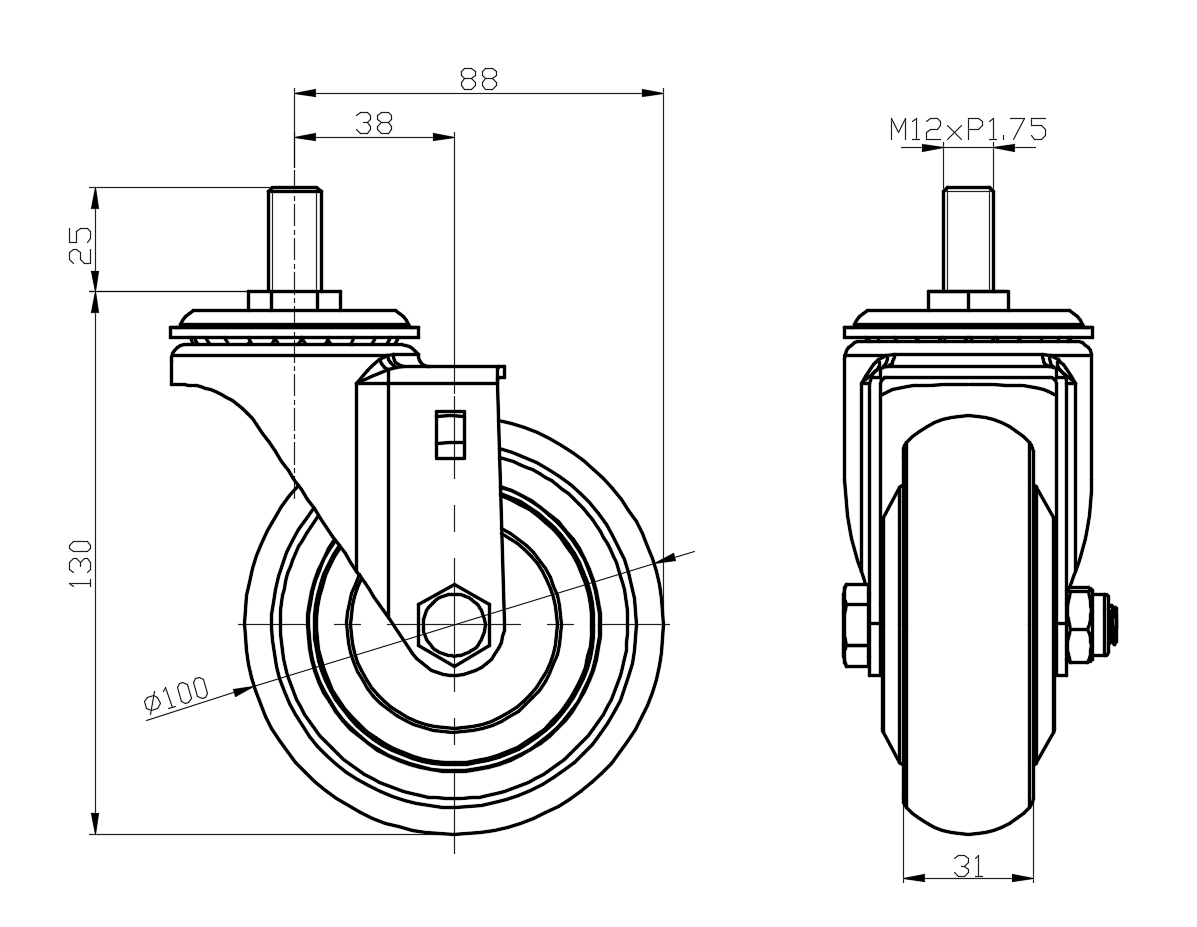

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
M12-P1.75
Threaded Length
25mm
Offset
38mm
Swivel Interference
176mm
Overall Height
130mm
Swivel Radius
88mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
200kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
300kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.78kgs
Standard
ISO22883
