    Product Data Sheet

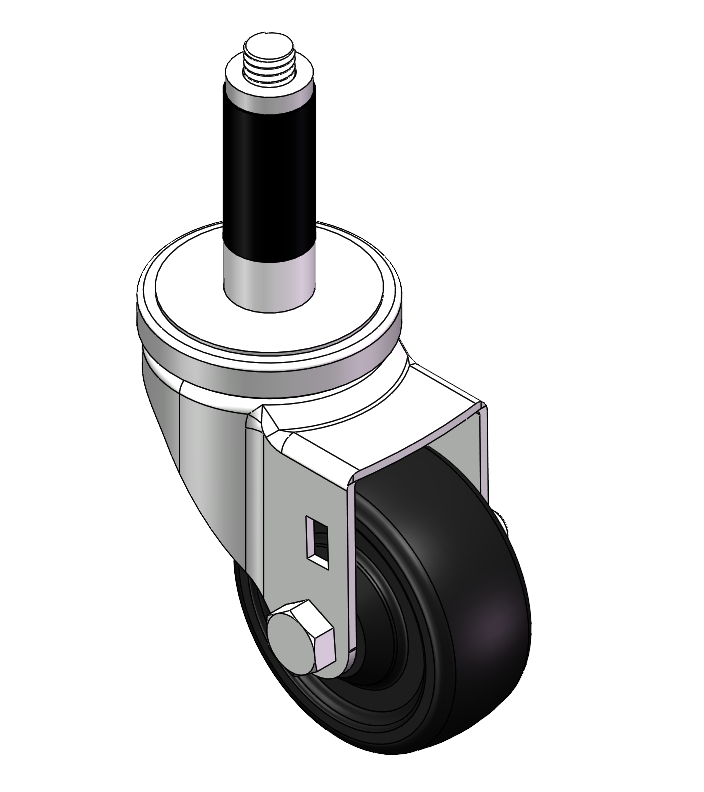

1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 30mm
　　EAN
　　　　　 　　　
　　YJ-11390300065093 　　　
Swivel Caster, thread-Riveted Stamping Fork - 1/2"-13"
Zine-Plated, expansion Mounting Type (∅21.6-∅24)
Reinforced Polypropylene core, High-Quality Resilient Rubber Wheel Tread
Bearing - Plain Bearing
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

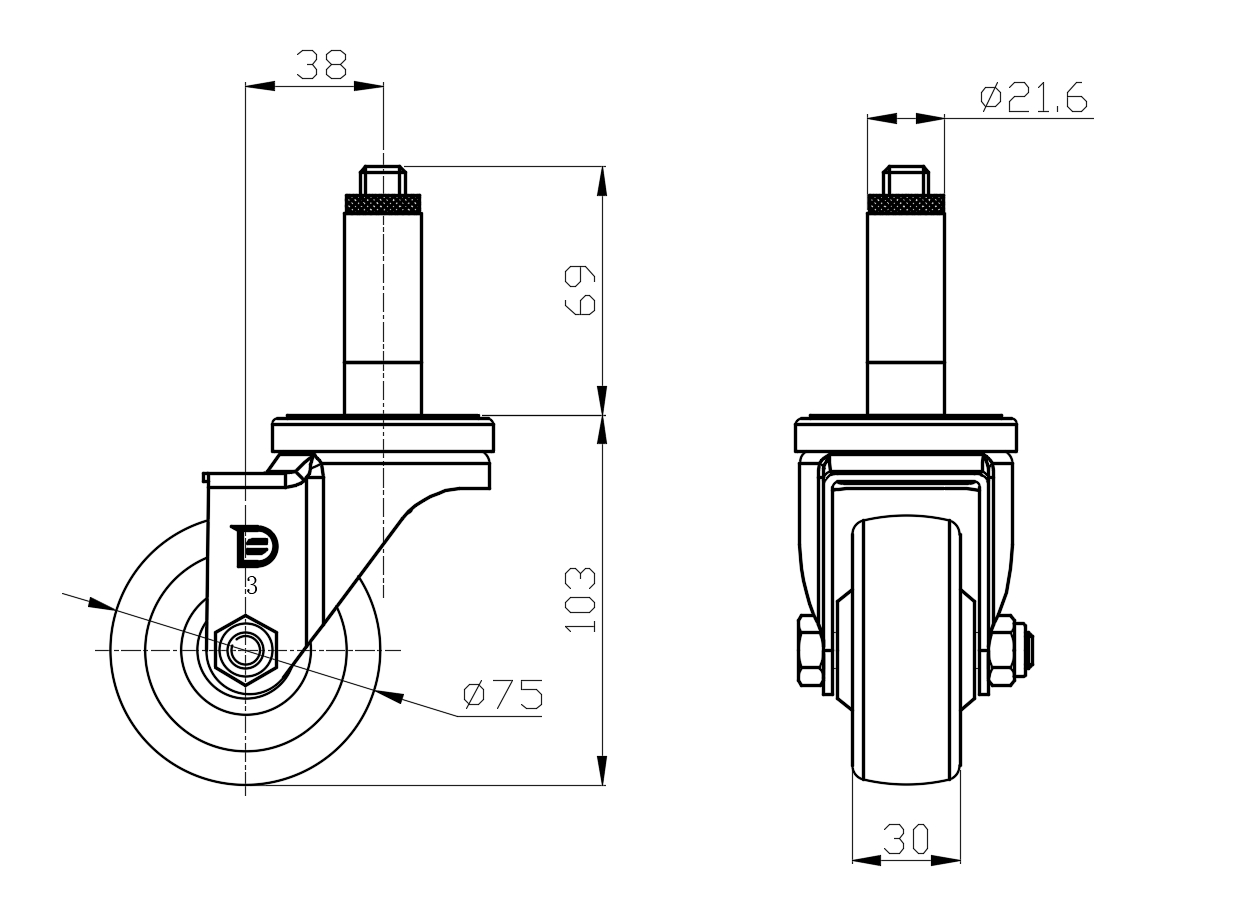

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 30mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Expandable Stem 21.6 x 69mm　
　　Offset 38mm　
　　Swivel Interference 152mm　
　　Overall Height 103mm　

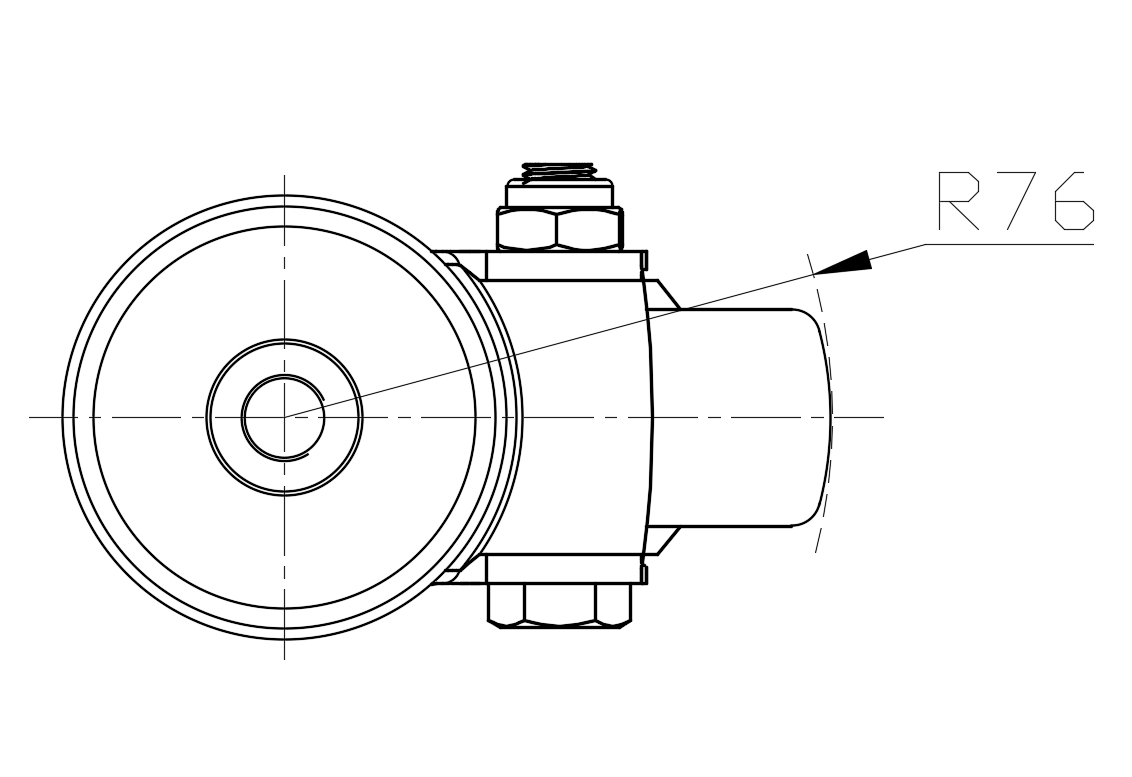

　　Swivel Radius 76mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.70kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品



  1139 Medium Duty General Purposes Caster Series
   Rubber Wheel Diameter × Wheel Width 75 x 30mm


   YJ-11390300066113

         75 mm         70 Kgs         103 mm

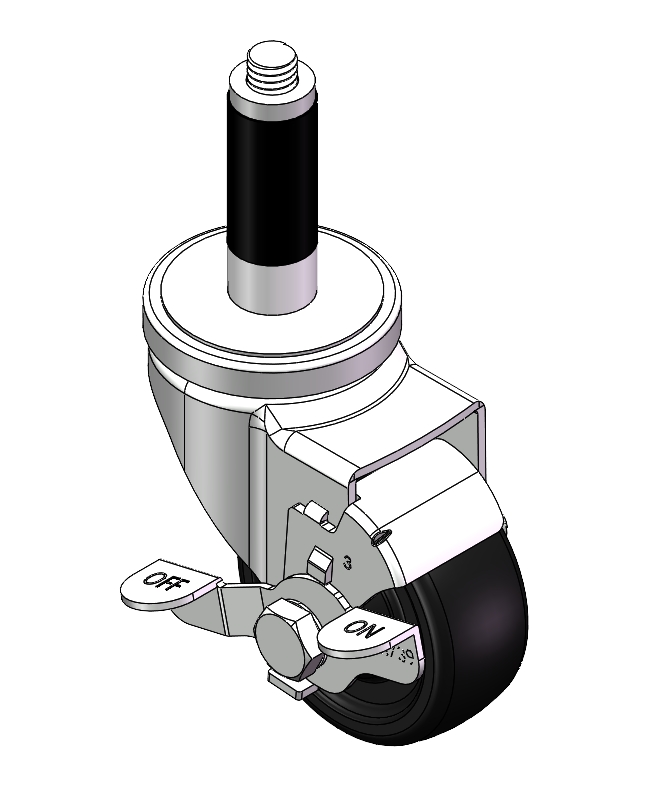

Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 1/2"-13" Zine-Plated, expansion Mounting Type (∅21.6-∅24) Reinforced Polypropylene Wheel Center, High-Quality Resilient Rubber Wheel Tread Bearing – Plain Bearing
