    Product Data Sheet

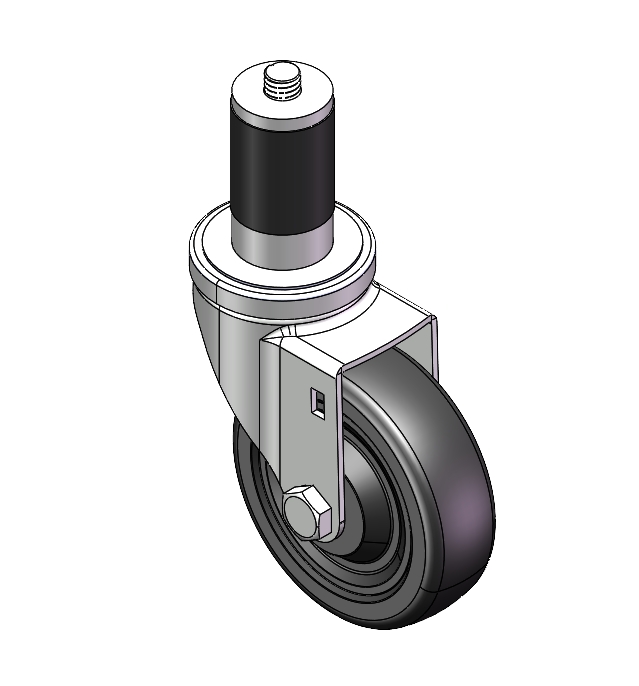

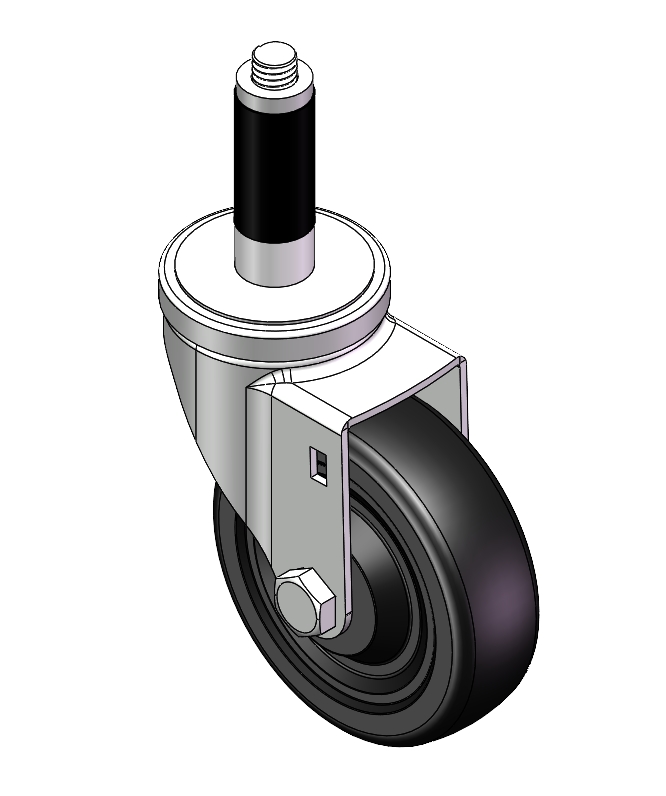

1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 100 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11390400065223 　　　
Swivel Caster, thread-Riveted Stamping Fork - 1/2"-13"
Zine-Plated, expansion Mounting Type (∅21.6-∅24)
Reinforced Polypropylene core, High-Quality Resilient Rubber Wheel Tread
Bearing - Plain Bearing
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

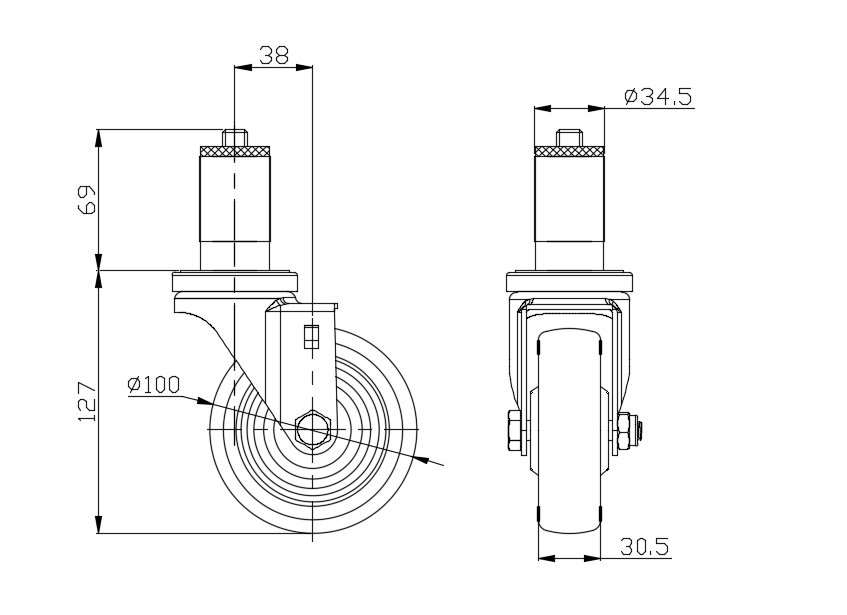

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Expandable Stem 21.6 x 69mm　
　　Offset 38mm　
　　Swivel Interference 176mm　
　　Overall Height 127mm　

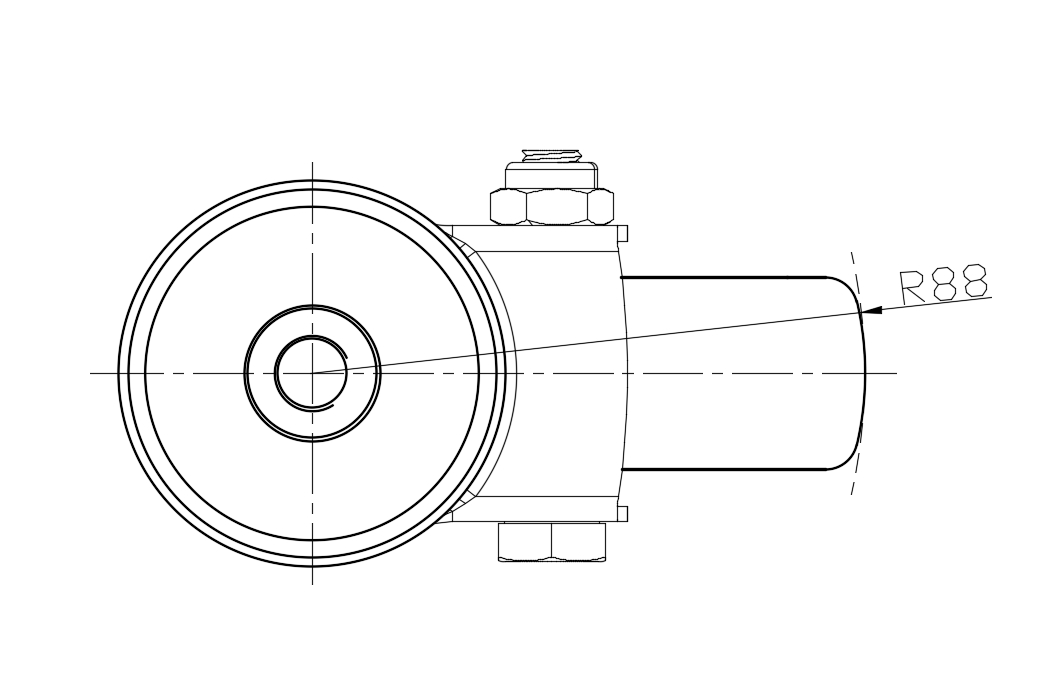

　　Swivel Radius 88mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.90kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品



  1139 Medium Duty General Purposes Caster Series
   Rubber Wheel Diameter × Wheel Width 100 x 30.5mm


   YJ-11390400066223

         100 mm         80 Kgs         127 mm

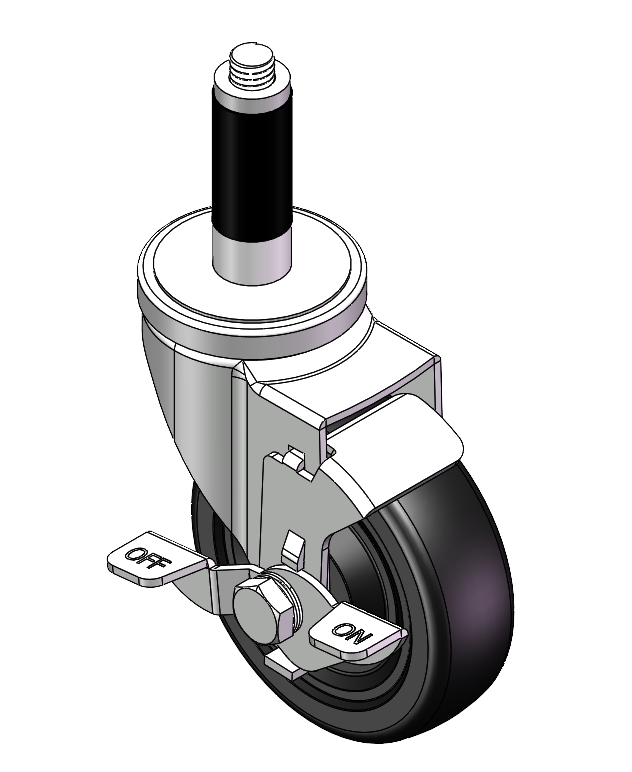

Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 1/2"-13" Zine-Plated, expansion Mounting Type (∅21.6-∅24) Reinforced Polypropylene Wheel Center, High-Quality Resilient Rubber Wheel Tread Bearing – Plain Bearing




  1139 Medium Duty General Purposes Caster Series
   Rubber Wheel Diameter × Wheel Width 100 x 30.5mm


   YJ-11390400065023

         100 mm         80 Kgs         127 mm

Swivel Caster, thread-Riveted Stamping Fork—1/2"-13"
Zine-Plated, expansion Mounting Type (∅34.5-∅36)
Reinforced Polypropylene core, High-Quality Resilient Rubber Wheel Tread
Bearing –tube-type




  1139 Medium Duty General Purposes Caster Series
   Rubber Wheel Diameter × Wheel Width 100 x 30.5mm


   YJ-11390400066023

         100 mm         80 Kgs         127 mm

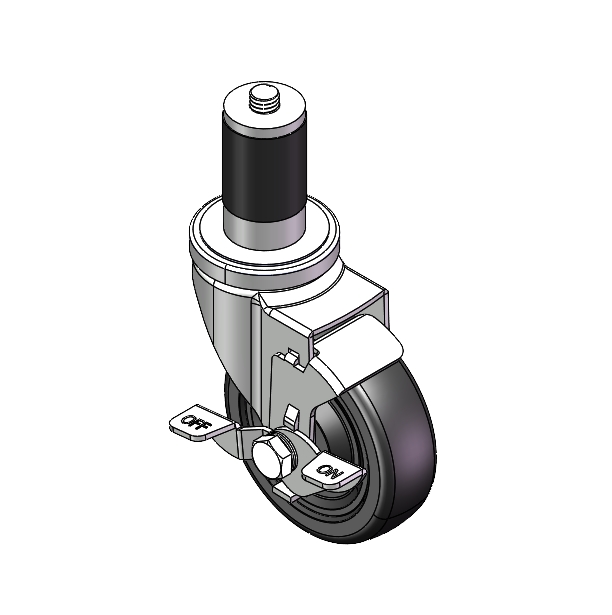

Side Brake Locking system. Thread-Riveted Fork —1/2"-13 Extended control lever surface, Mounting Type - Angle Iron Fitting (∅34.5-∅36) Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheels—Plain Bearing
