    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PPR E-Conductive (black-gray) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390300176923 　　　
Castors with Total Brake Locking system. Threaded Fork - M12- P1.75 Extended control lever surface, Mounting Type - Threaded Stem High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) wheel tread Black-grey, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

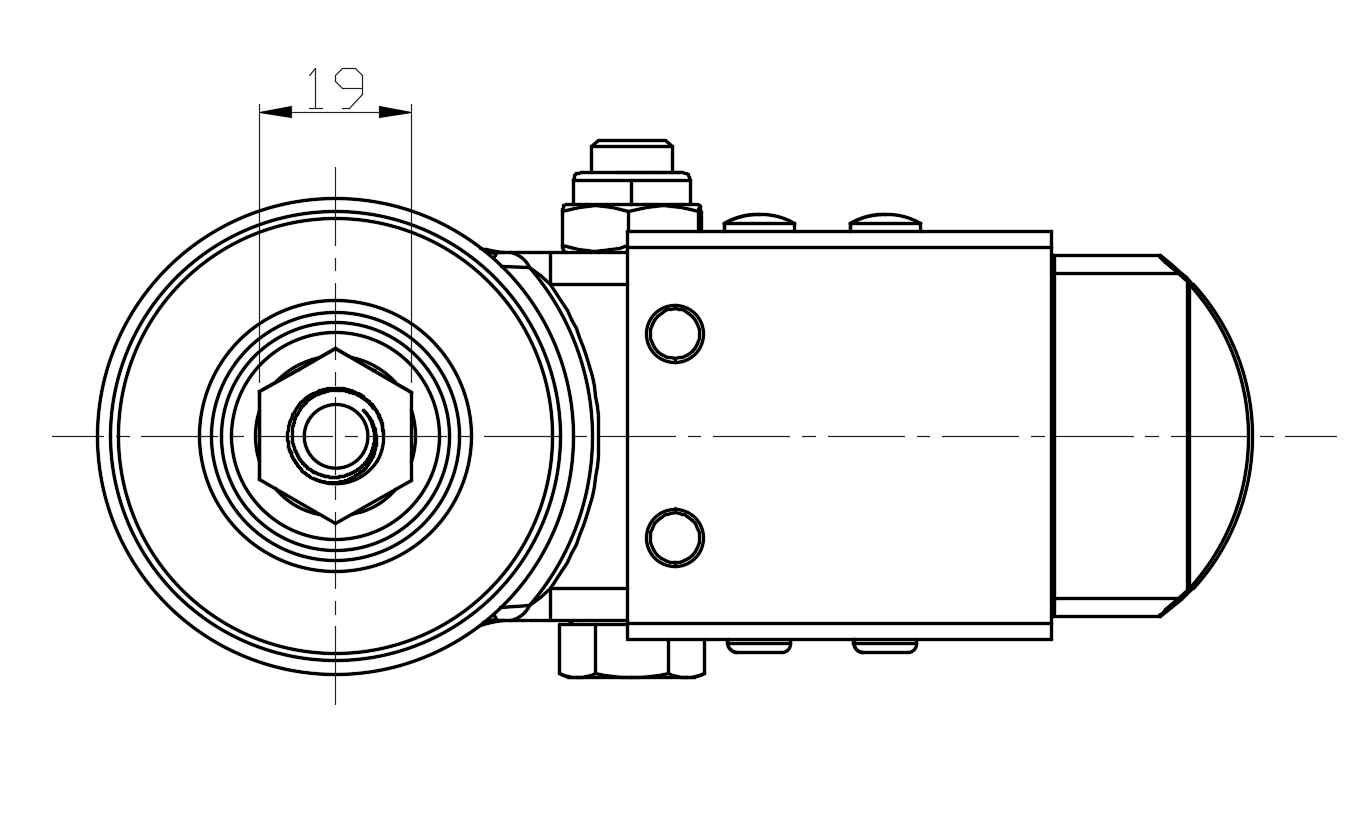

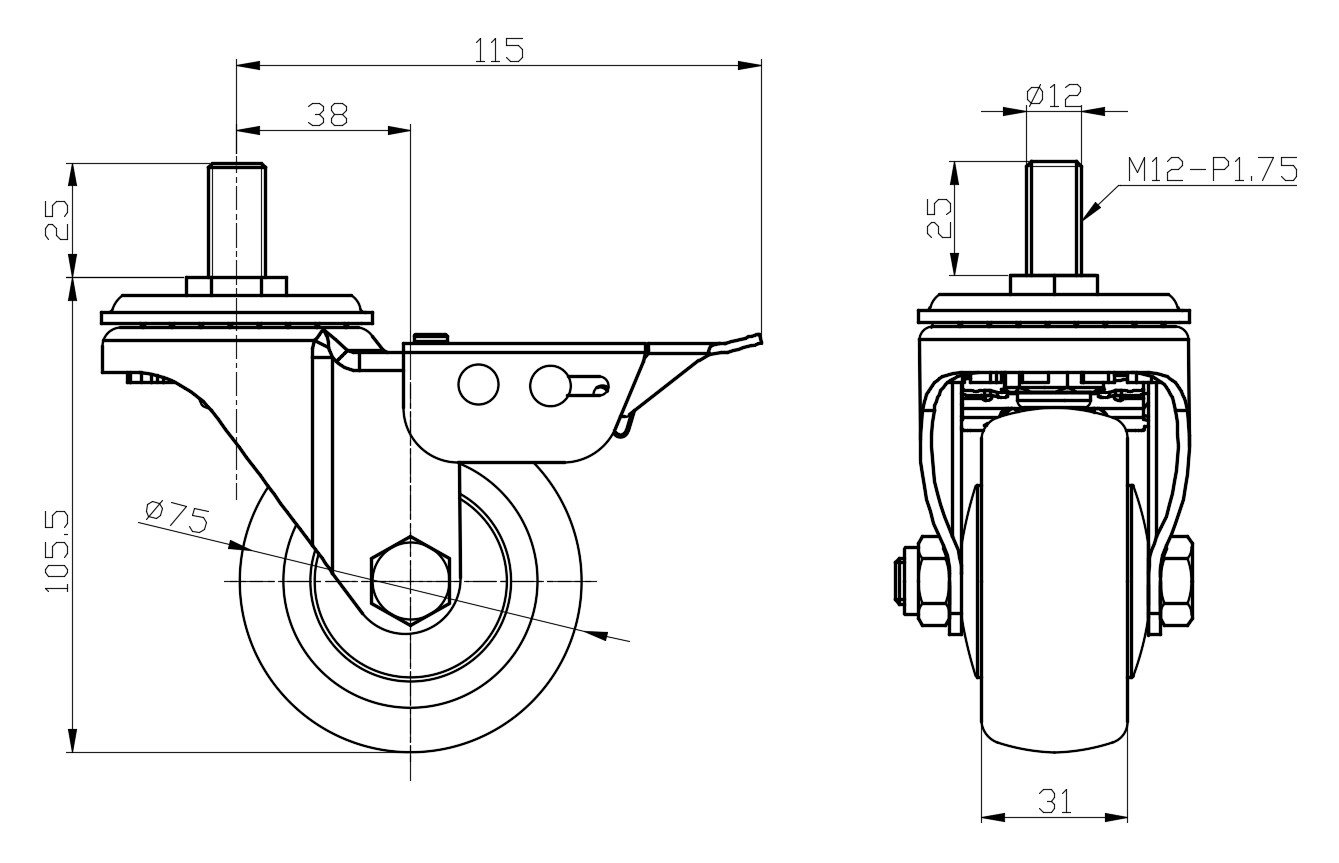

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12-P1.75
　　Threaded Length 25mm
　　Offset 38mm　
　　Swivel Interference 230mm　
　　Overall Height 105.5mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity Y 导电值10^3～10^4
　　Anti-Static N/A
　　Weight 0.67kgs　
　　Standard ISO22883
　　
　　
