◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files

    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PPR (Plain Bearing) (Pearlescent dark gray) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390400262043 　　　

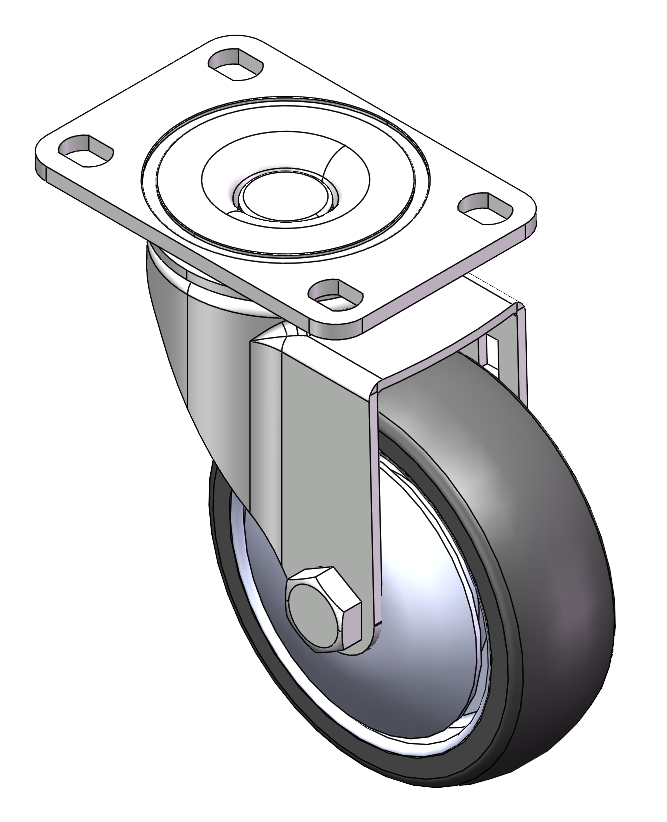

Swivel castor, Fork Riveted Stamping Fork - premium hole Surface Zine-Plated, Top Plate (4T) Mounting Type Impact resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl grey, wheel - Plain Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

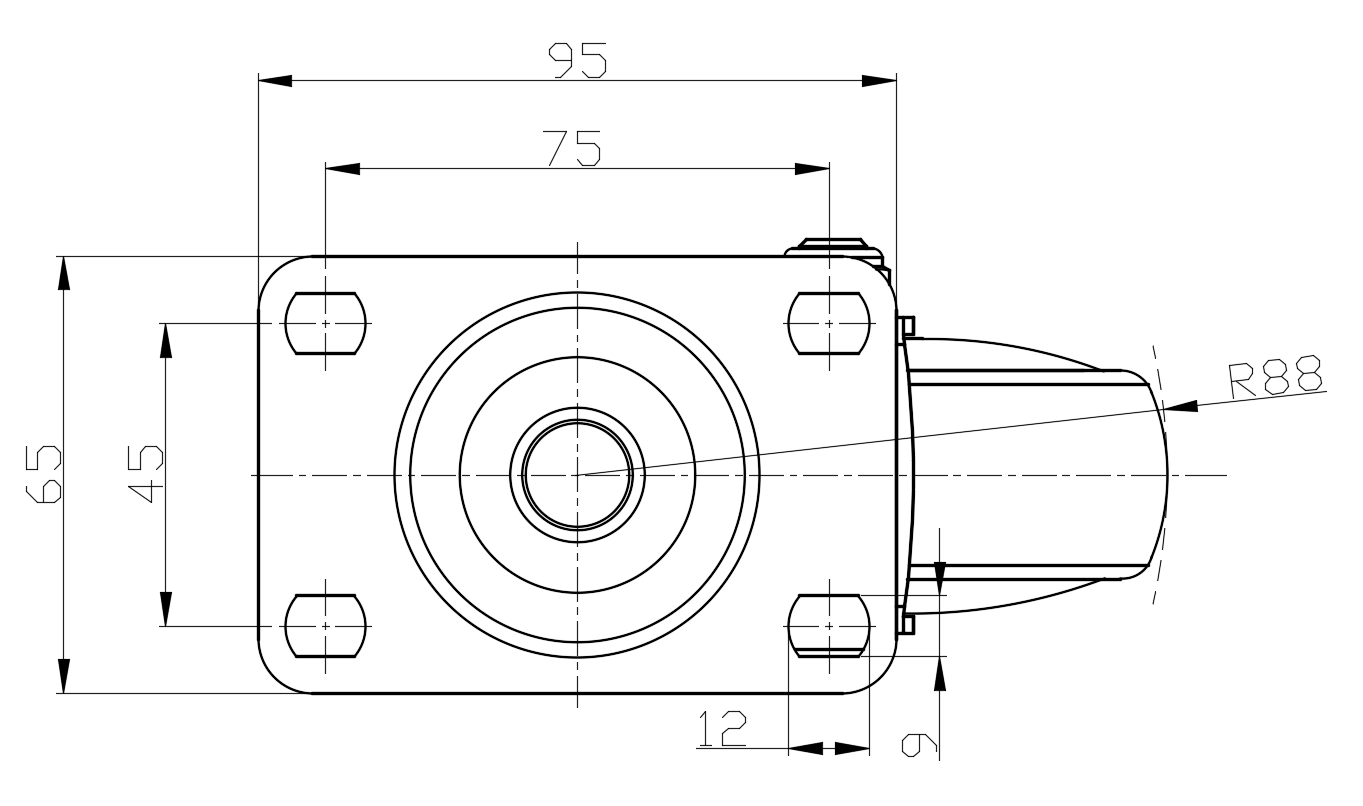

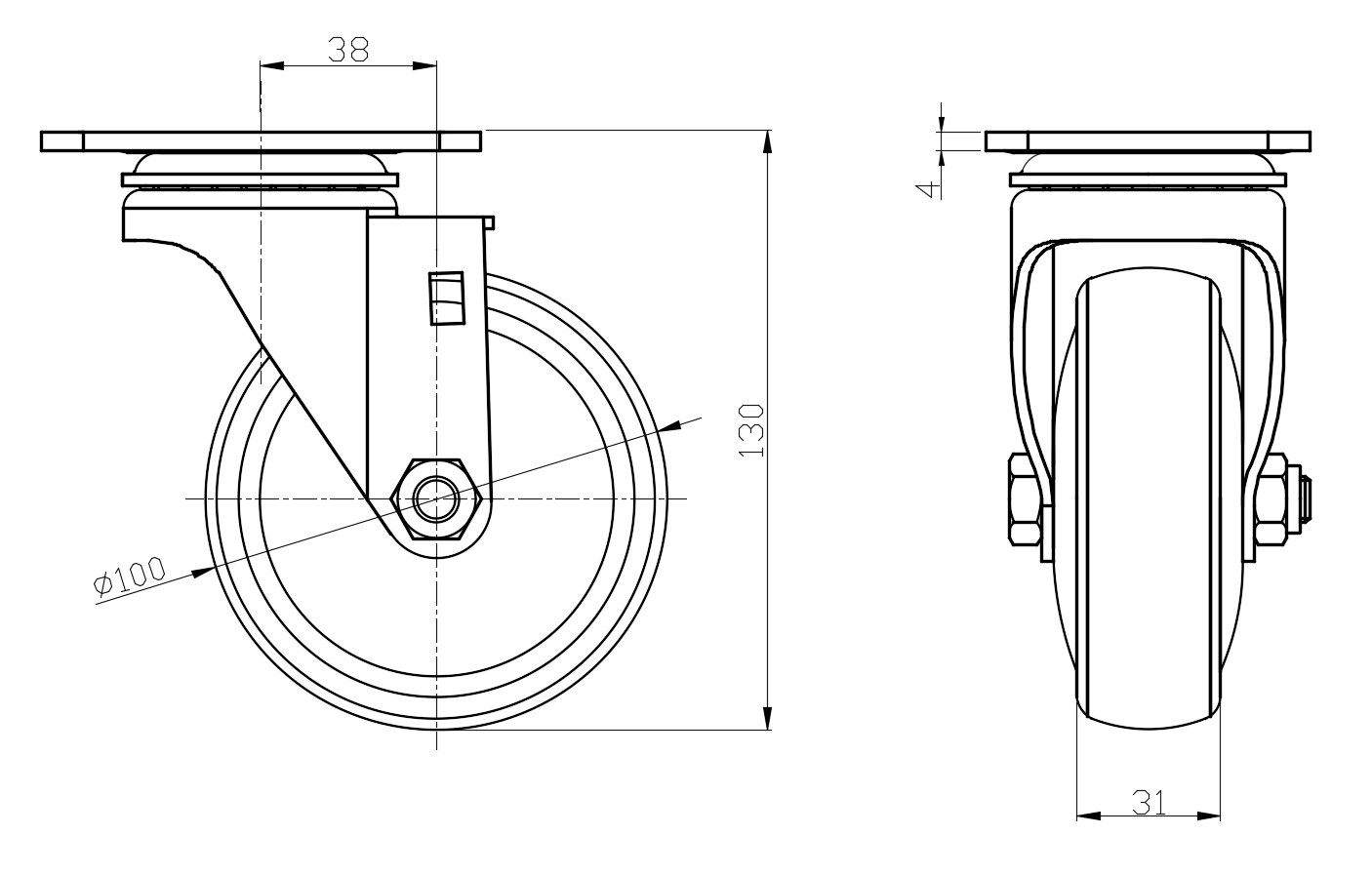

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 95 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 38mm　
　　Swivel Interference 176mm　
　　Overall Height 130mm　
　　Swivel Radius 88mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.71kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1139 Medium Duty General Purposes Caster Series
PPR (Plain Bearing) (Pearlescent dark gray) Wheel Diameter × Wheel Width 100 x 31mm
YJ-11390400261043
100 mm 100 Kgs 130 mm

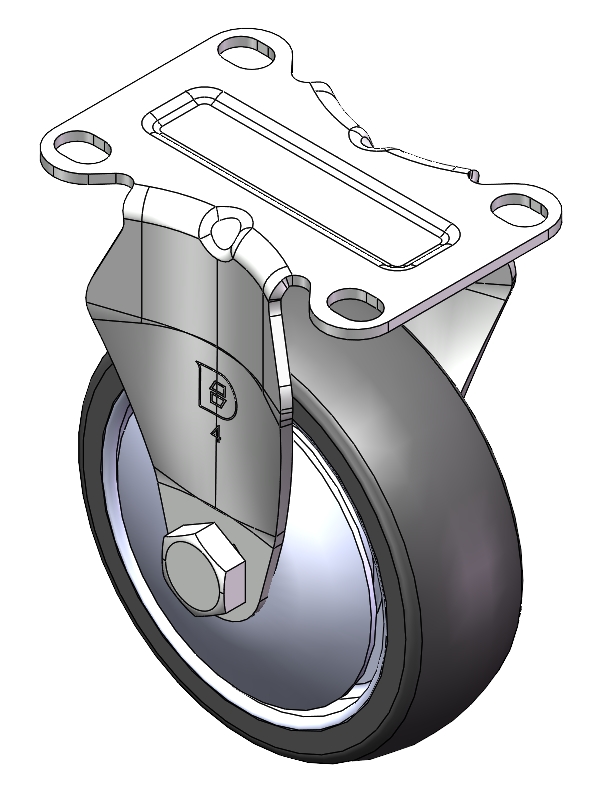

Rigid castor, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene Wheel Center, TPR Wheel Tread Pearl grey, wheel - Plain Bearing.
1139 Medium Duty General Purposes Caster Series
PPR (Plain Bearing) (Pearlescent dark gray) Wheel Diameter × Wheel Width 100 x 31mm
YJ-11390400264073
100 mm 100 Kgs 130 mm

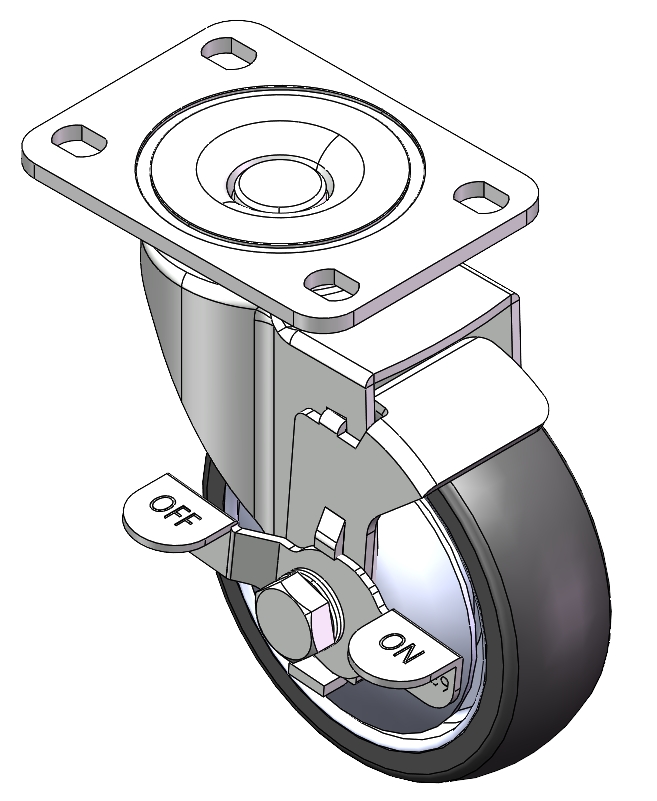

Castors with Side Brakes, Locking system. Riveted Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface Zine-Plated, Fork (4T) Mounting Type Impact resistant High-quality Impact Resistance Polypropylene Wheel Center, Thermoplastic Elastomer (TPR) Wheel Tread Pearl grey, wheels - Plain Bearing.
