    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　Rubber Wheel Diameter × Wheel Width 100 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11390400061014 　　　
Rigid castors, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Surface electroplating, Top Plate installation device Reinforced Polypropylene, High-Quality Resilient Rubber Wheel Tread Wheels—Anti-thread wheel cover
　　Wheel Tread: high quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

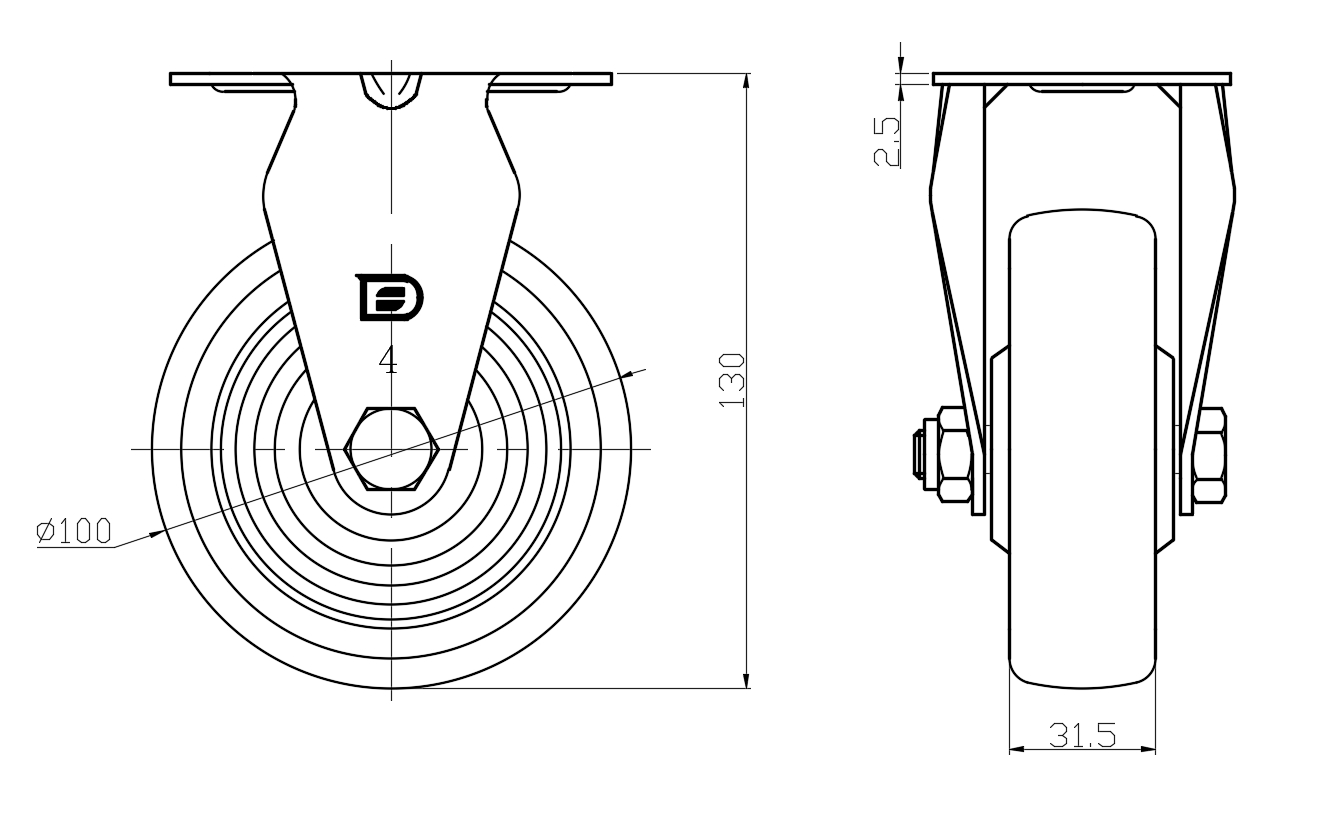

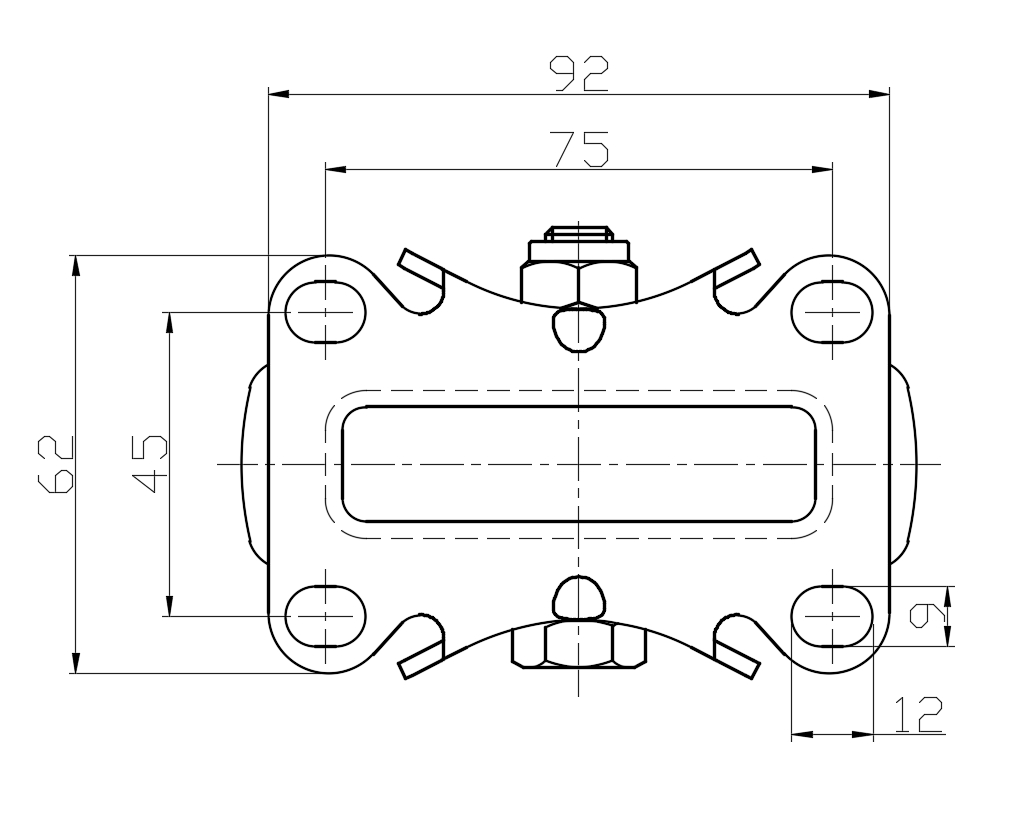

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 62mm　
　　Bolt Hole Spacing 75 x45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 130mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.63kgs　
　　Standard ISO22883
　　
　　
