    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PP (black) Wheel Diameter x Wheel Width 125 x 35mm
　　EAN
　　　　　 　　　
　　YJ-11390500291053 　　　

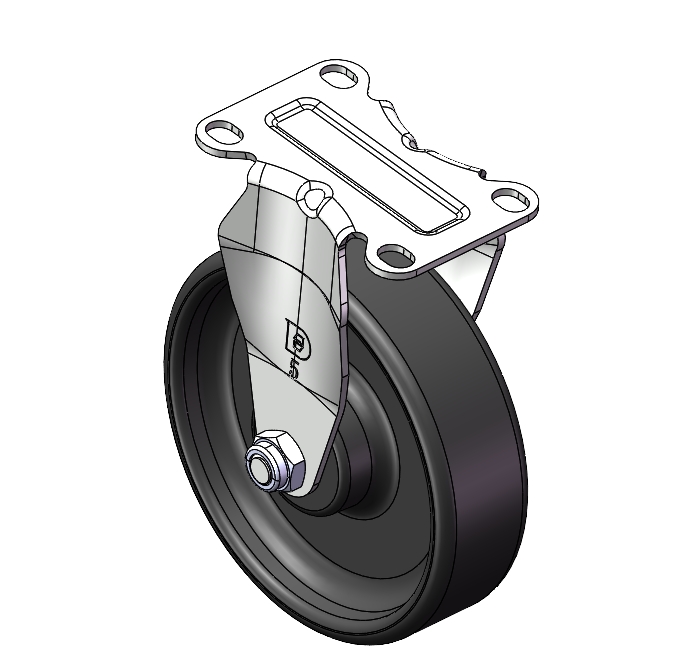

Rigid castors, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Extended control lever surface, Top Plate installation Polypropylene Wheel Center, Wheel Tread Black, wheels—Plain Bearing.
　　Wheel tread: PP polypropylene
　　Wheel Center: PP polypropylene

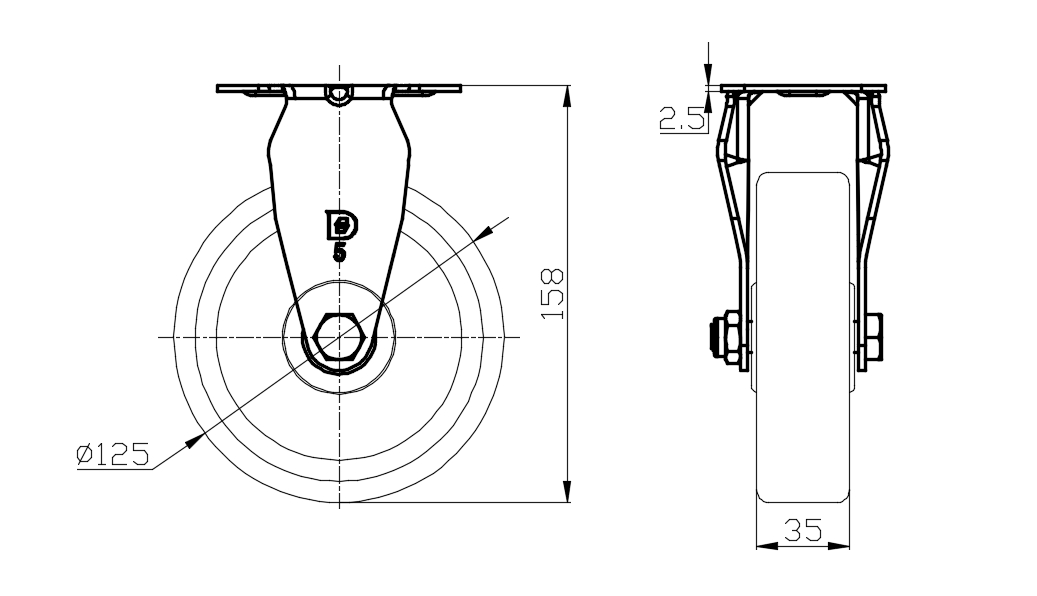

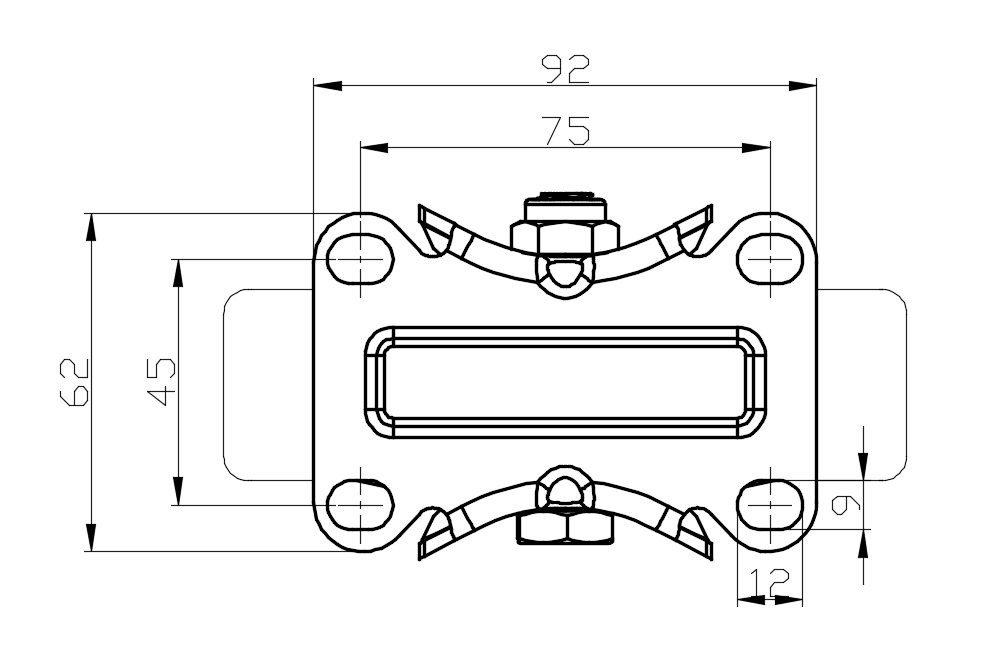

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 35mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 158mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.43kgs　
　　Standard ISO22883
　　
　　
