    Product Information Sheet
1139 Medium Duty General Purposes Caster Series
　　WCPD (Black) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390300445913 　　　
Portable Casters, Threaded Stem Stamping Fork – 3/8"-16 Zine-Plated surface, Mounting Type - Threaded Stem system Polypropylene Wheel Center and rim Black, Bearing – Ball Bearings
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

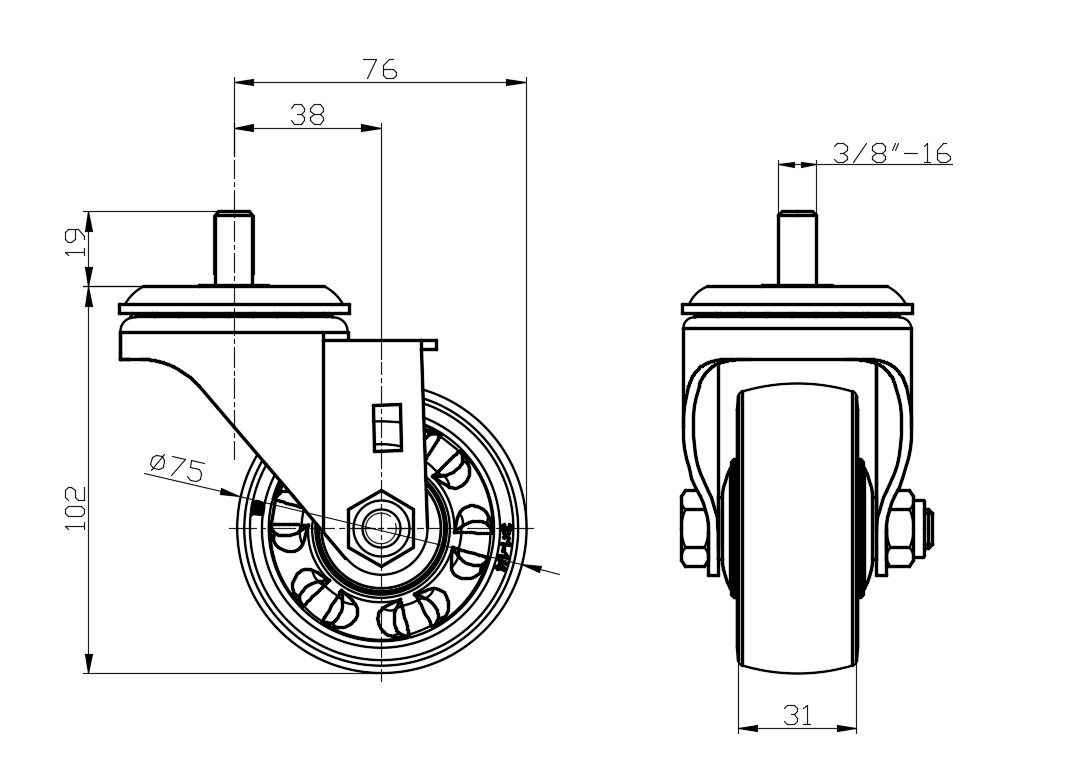

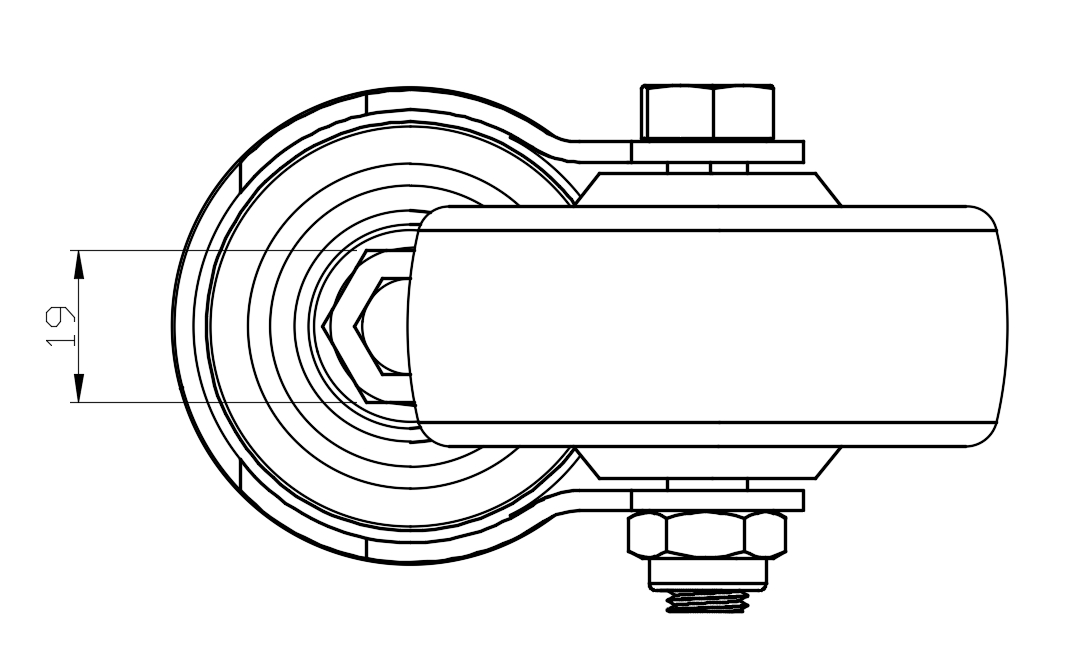

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 3/8＂-16
　　Threaded Length 19mm
　　Offset 38mm　
　　Swivel Interference 152mm　
　　Overall Height 102mm　
　　Swivel Radius 60mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.56kgs　
　　Standard ISO22883
　　
　　
