    Product Data Sheet

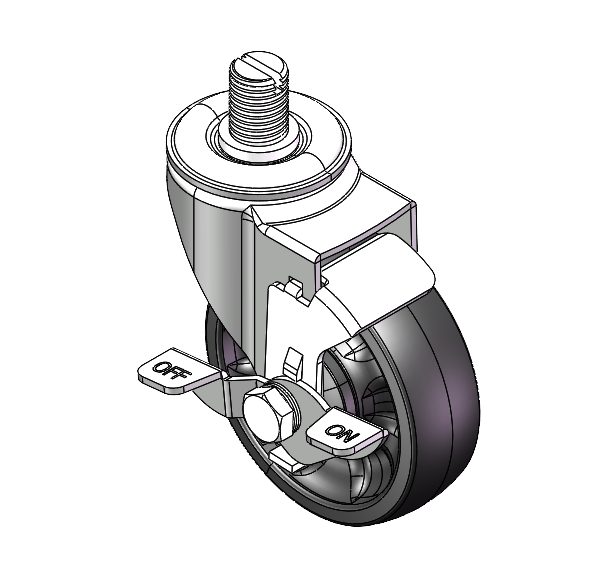

1139 Medium Duty General Purposes Caster Series
　　WPP (Black) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390400296913 　　　
Casters with Side Brakes and With locking system. Base plate Riveted with Fork 3/4"-10
Zine-Plated, Mounting Type - Threaded Stem
Polypropylene Wheel Center and Wheel Tread
Black, Bearing – Ball Bearings.
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

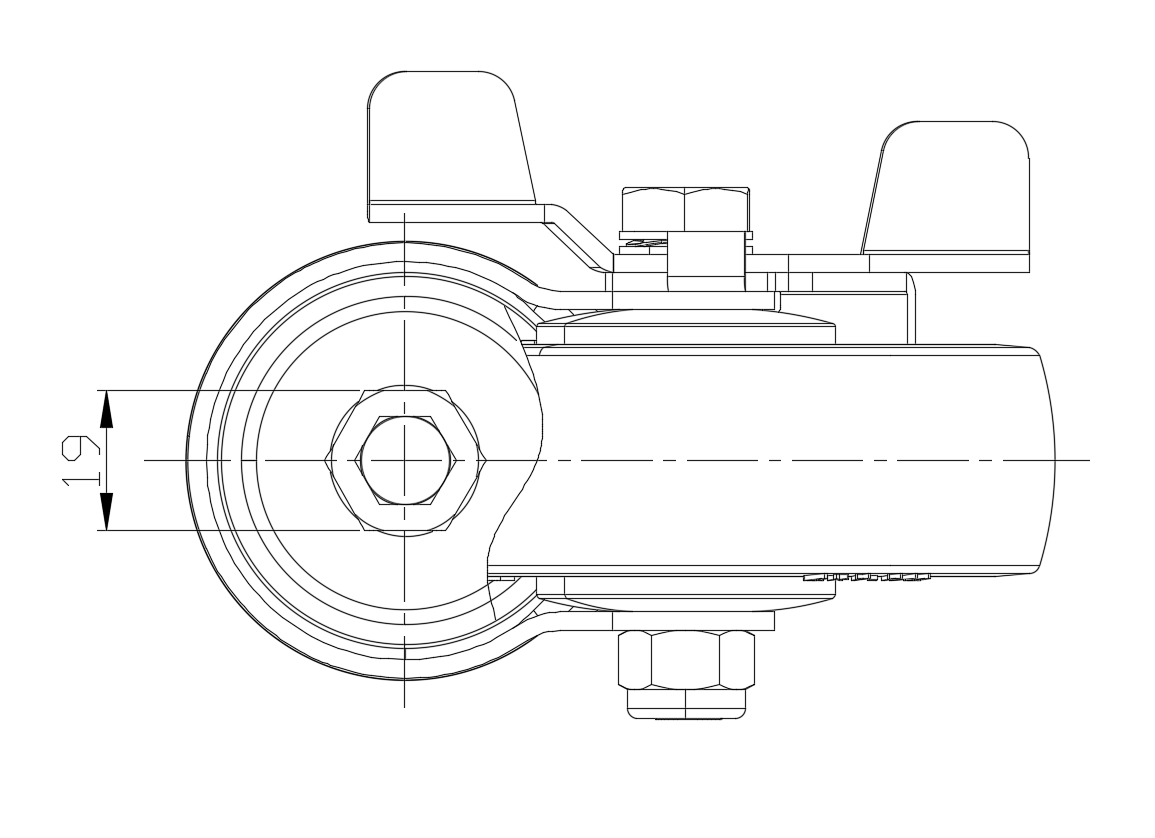

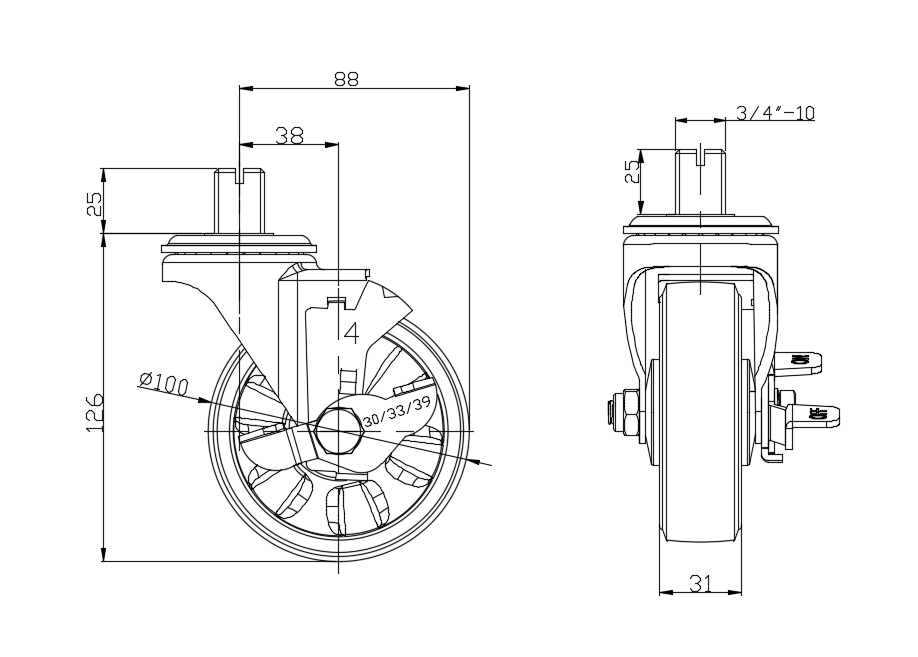

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 3/4＂-10
　　Threaded Length 25mm
　　Offset 38mm　
　　Swivel Interference 176mm　
　　Overall Height 126mm　
　　Swivel Radius 88mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 130kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 195kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.74kgs　
　　Standard ISO22883
　　
　　
