    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　WPP (Black) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390400297913 　　　
Swivel Caster, plug-in Riveted Stamping Fork - ∅15.7 Surface Zine-Plated, Mounting Type - Cylindrical Polypropylene Wheel Center and Wheel Tread Black, Bearing - Ball Bearing.
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

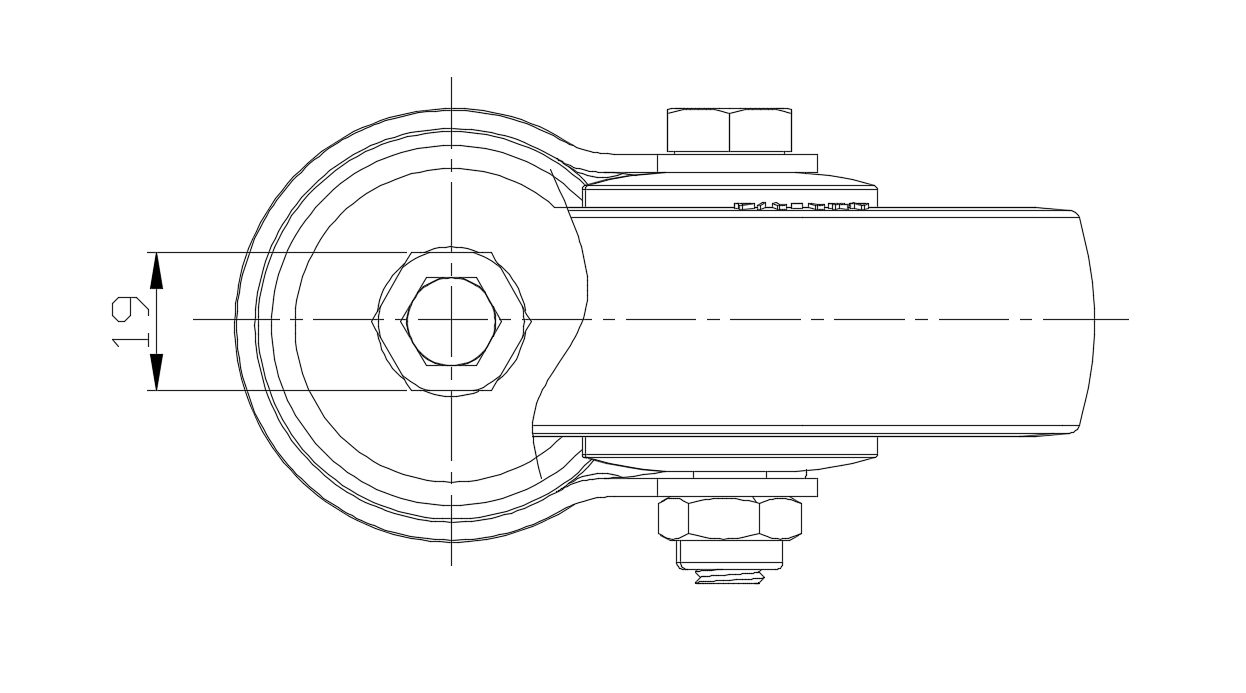

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 15.7mm　
　　Stem Length 35mm　
　　Offset 38mm　
　　Swivel Interference 176mm　
　　Overall Height 126mm　
　　Swivel Radius 88mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 130kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 195kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.66kgs　
　　Standard ISO22883
　　
　　
