    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　PPU (Grey) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390500317013 　　　

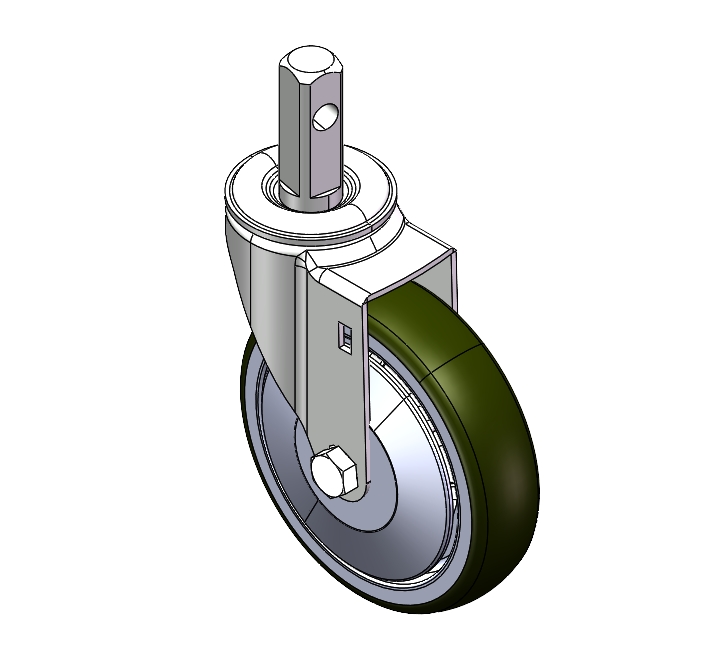

Swivel Caster, square rod type Riveted Stamping Fork - 18 Surface Zine-Plated, rod type Mounting Type device Polypropylene Wheel Center, polyurethane Wheel Tread Gray, Bearing - Ball Bearing.
　　Wheel tread: Polyurethane
　　Wheel Center: PP polypropylene

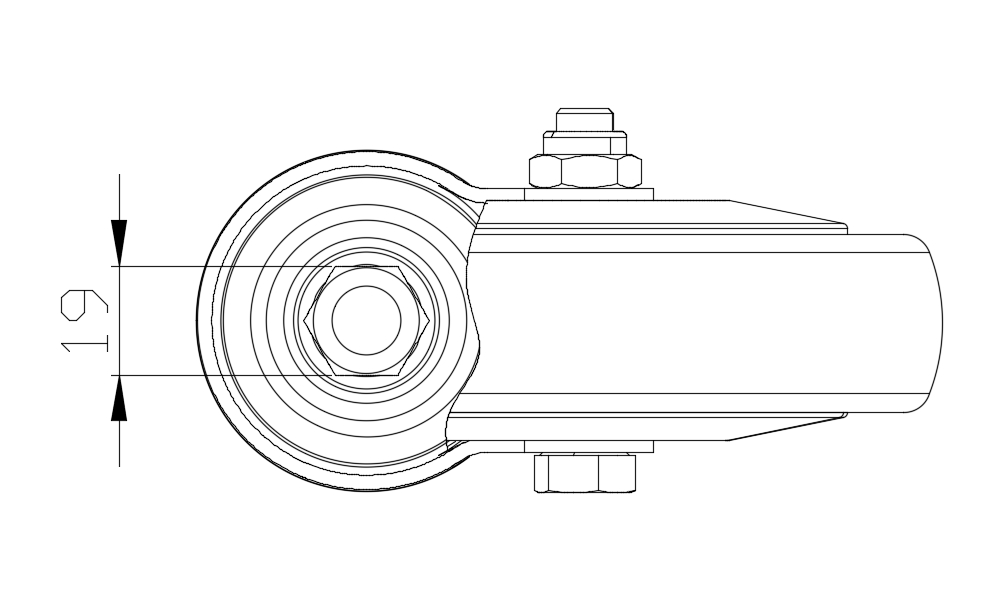

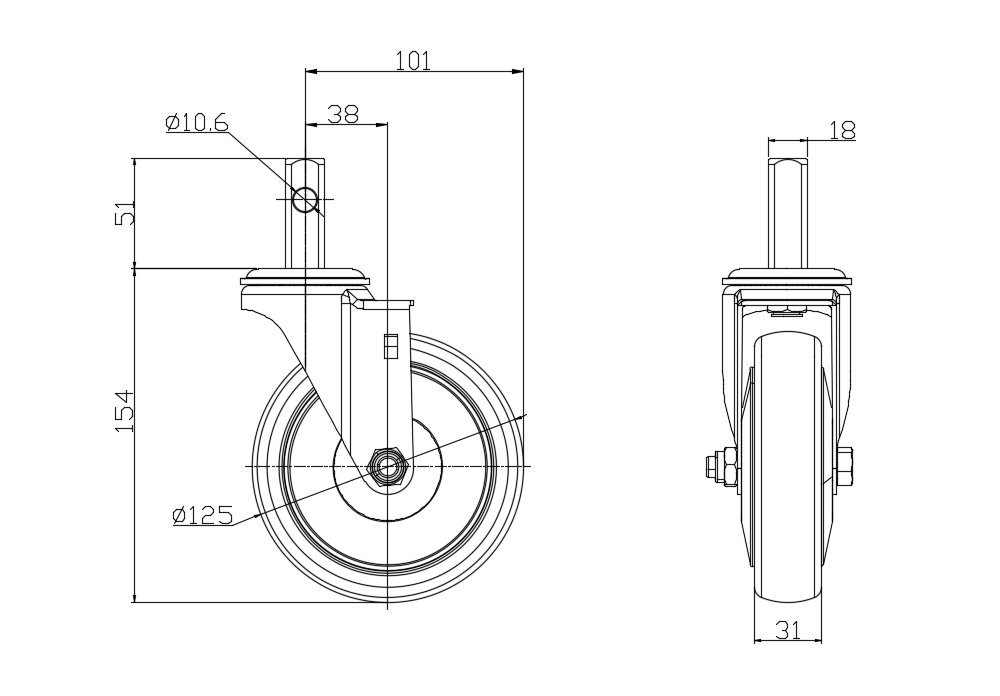

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 18mm　
　　Stem Length 51mm　
　　Offset 38mm　
　　Swivel Interference 202mm　
　　Overall Height 154mm　
　　Swivel Radius 101mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 130kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 195kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.93kgs　
　　Standard ISO22883
　　
　　
