    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　MRC (Black) Wheel Diameter × Wheel Width 76 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11390300076023 　　　
Side Brake Locking system. Threaded Riveted Stamping Fork - M12-P1.75 Extended control lever surface, Mounting Type - Threaded Stem device Reinforced Polypropylene and Wheel Tread Wheels - Plain Bearing
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

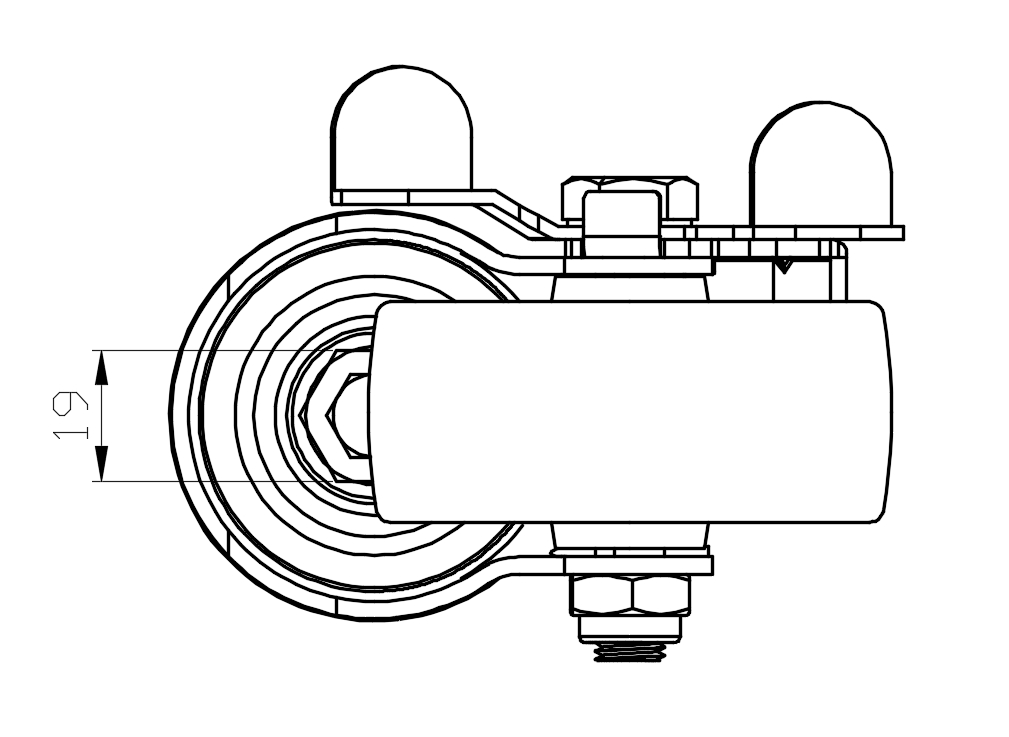

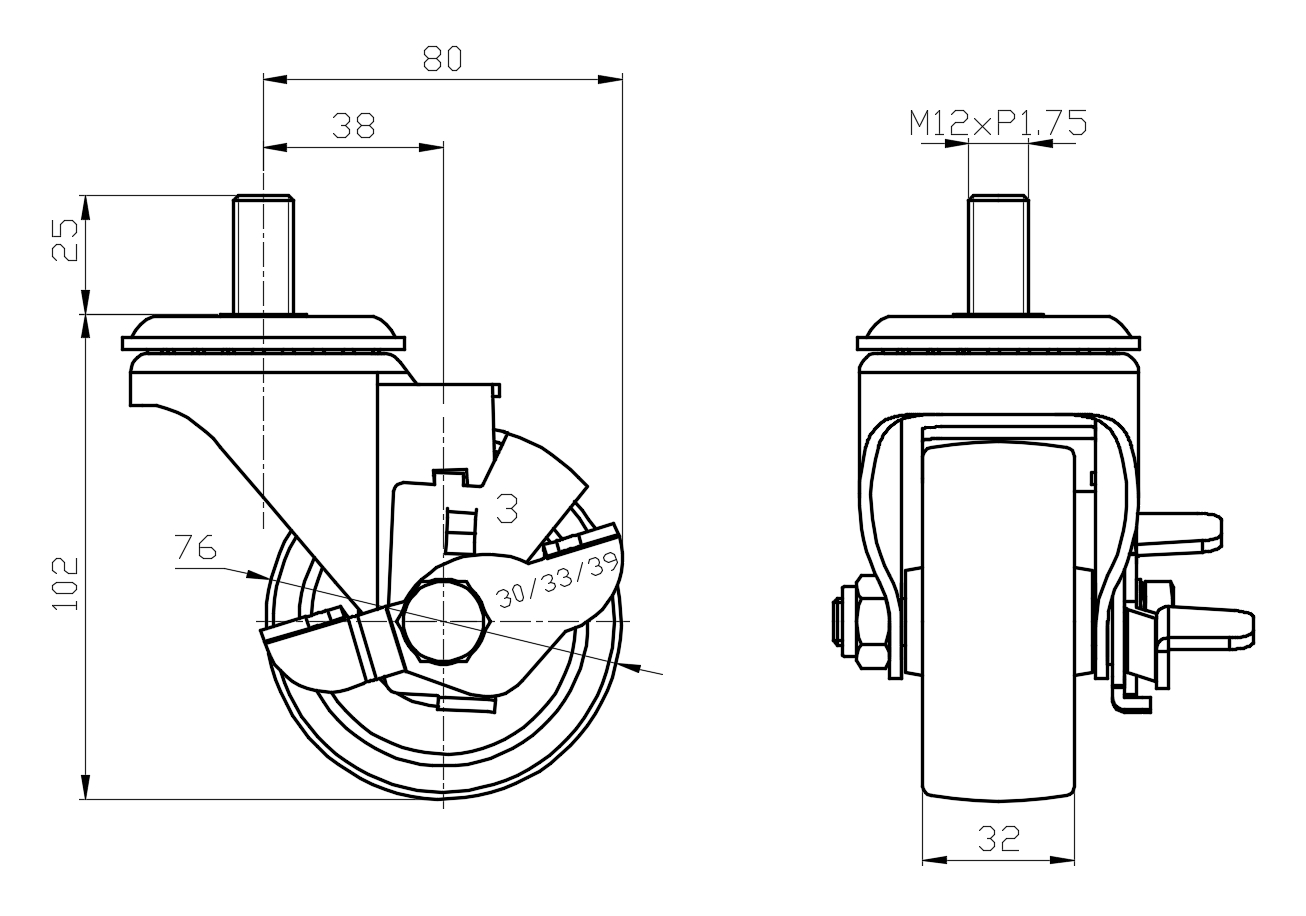

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 76mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem M12-P1.75
　　Threaded Length 25mm
　　Offset 38mm　
　　Swivel Interference 160mm　
　　Overall Height 102mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.58kgs　
　　Standard ISO22883
　　
　　
