    Product Data Sheet
1139-1 Series — Medium Duty General Purposes Caster (American Style)
　　PPP (White) Wheel Diameter × Wheel Width 63.5 × 32 mm
　　EAN
　　　　　 　　　
　　YJ-11390250294013 　　　
Casters with Total Brakes and a With locking system. Top Plate with Riveted, Stamping Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Polypropylene Wheel Center and Wheel Tread.
White, Bearing with Ball Bearings.
　　Tread:Polypropylene
　　Wheel Center:Polypropylene

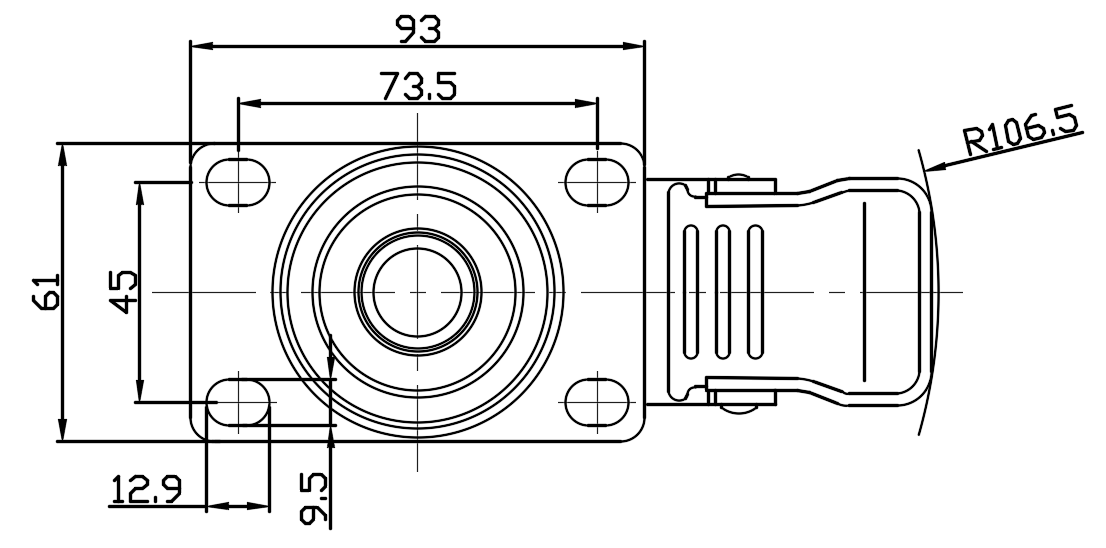

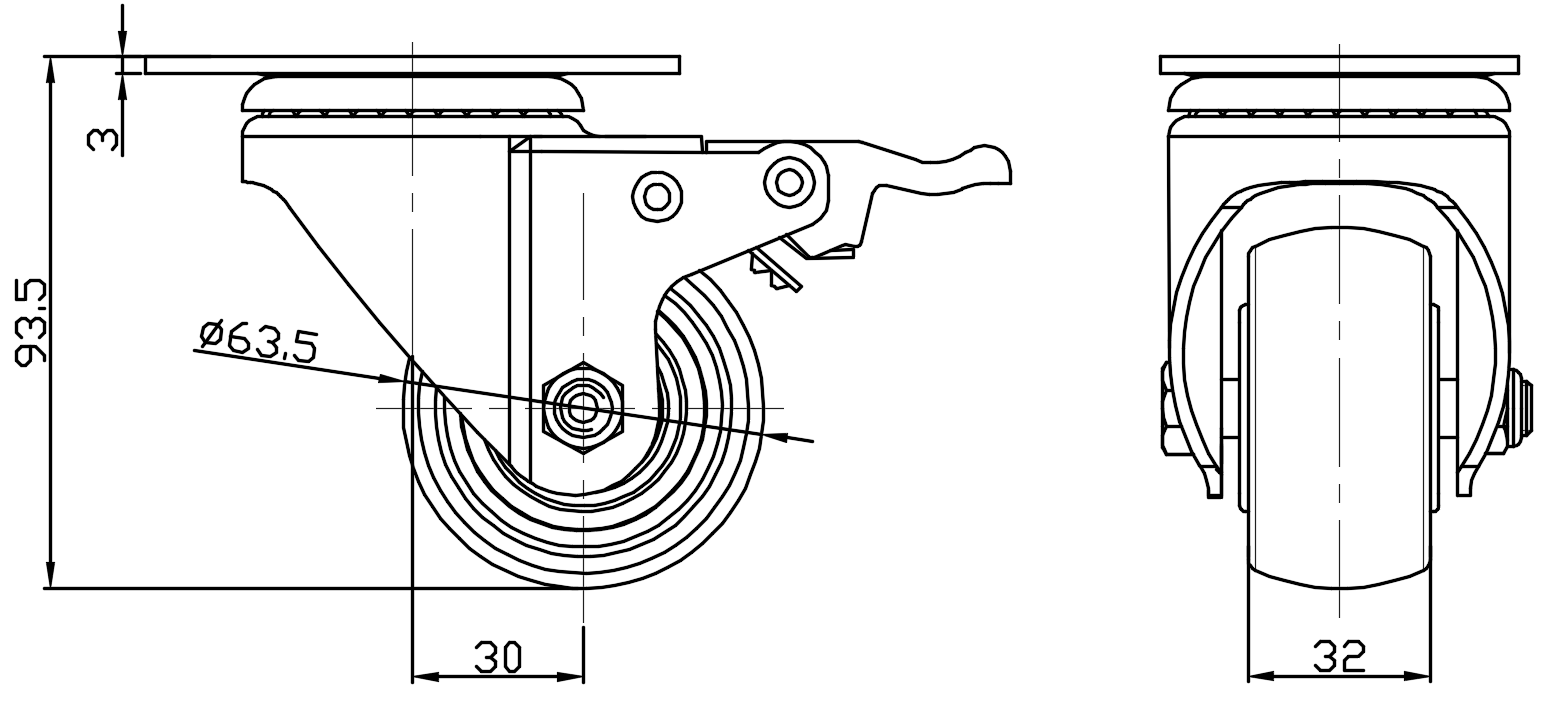

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 63.5mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 93 x 61mm　
　　Bolt Hole Spacing 73.5 x 45mm　
　　Plate Hole 12.9 x 9.5mm　
　　Offset 30mm　
　　Swivel Interference 213mm　
　　Overall Height 93.5mm　
　　Swivel Radius 106.5mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 120kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.63kgs　
　　Standard ISO22883
　　
　　
