    Product Data Sheet
1139-1 Series — Medium Duty General Purposes Caster (American Style)
　　PPP (white) Wheel Diameter × Wheel Width 75.5 × 31.5 mm
　　EAN
　　　　　 　　　
　　YJ-11390300292043 　　　
Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Mounting Type - Top Plate
Polypropylene Wheel Center and Wheel Tread
White, Bearing—Ball Bearings.
　　Tread:Polypropylene
　　Wheel Center:Polypropylene

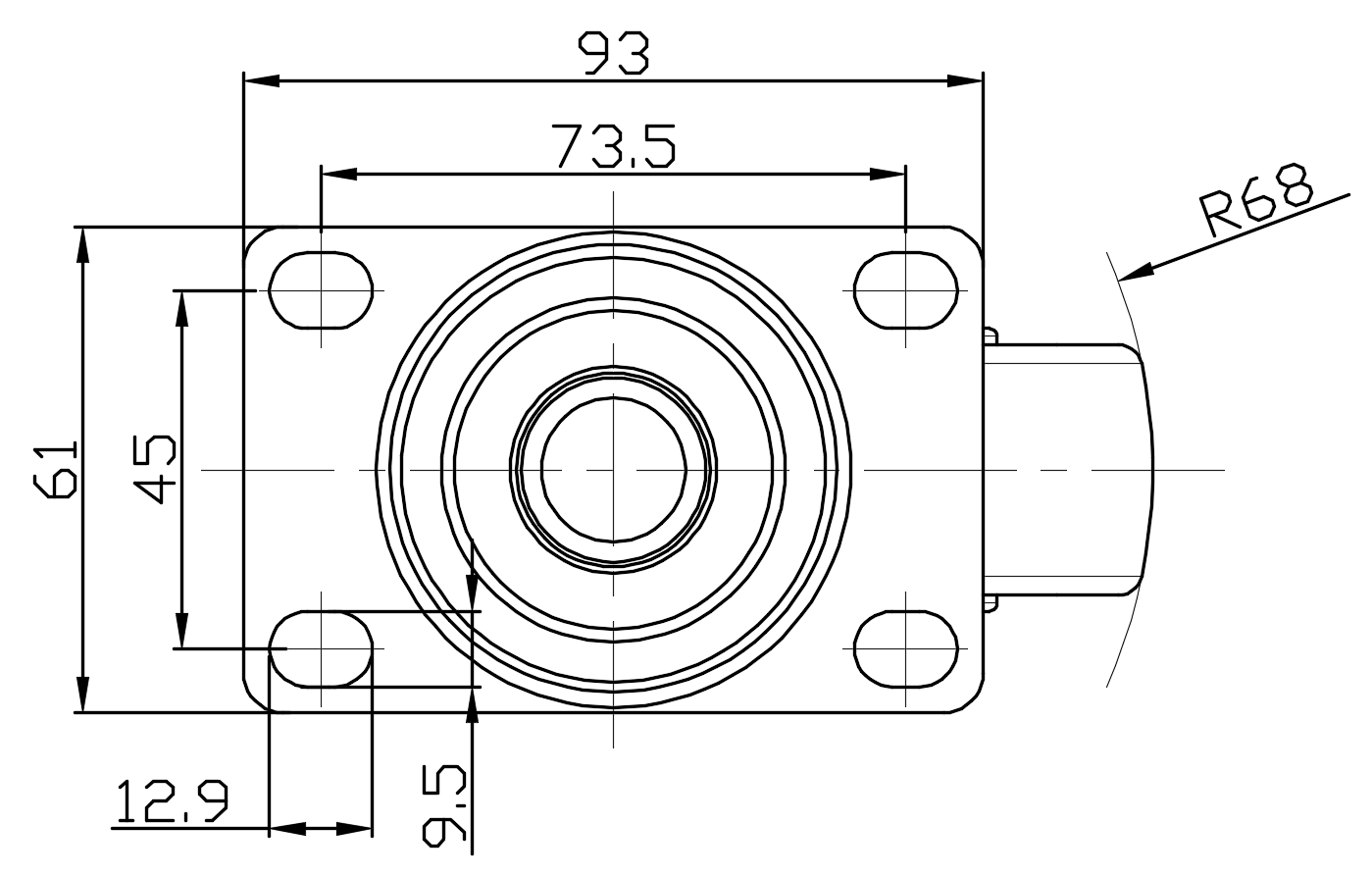

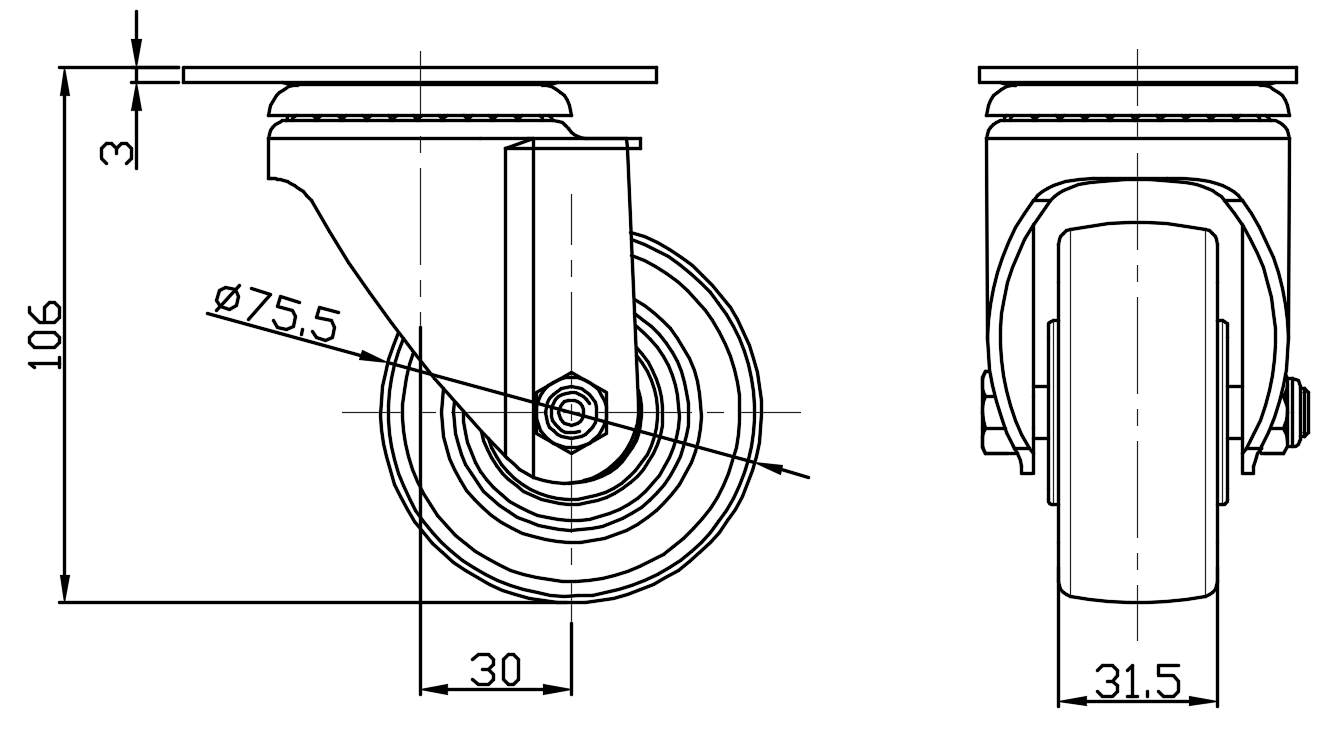

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75.5mm　

　　Wheel Width 31.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 93 x 61mm　
　　Bolt Hole Spacing 73.5 x 45mm　
　　Plate Hole 12.9 x 9.5mm　
　　Offset 30mm　
　　Swivel Interference 136mm　
　　Overall Height 106.2mm　
　　Swivel Radius 68mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.58kgs　
　　Standard ISO22883
　　
　　
