    Product Data Sheet
1141 Kingpinless Caster Series
　　CPD Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 KS-11410400291023
　　　　　 　　　

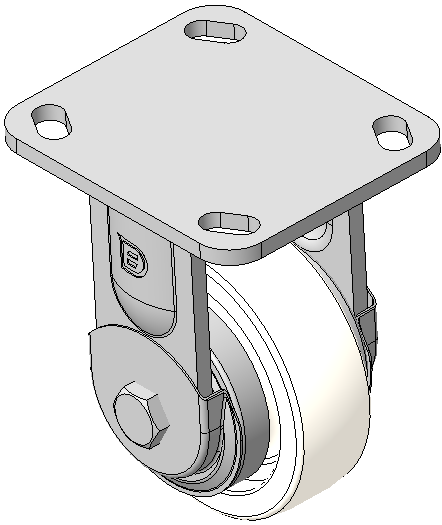

Rigid Caster with Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Polypropylene core, natural Wheel Tread
Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

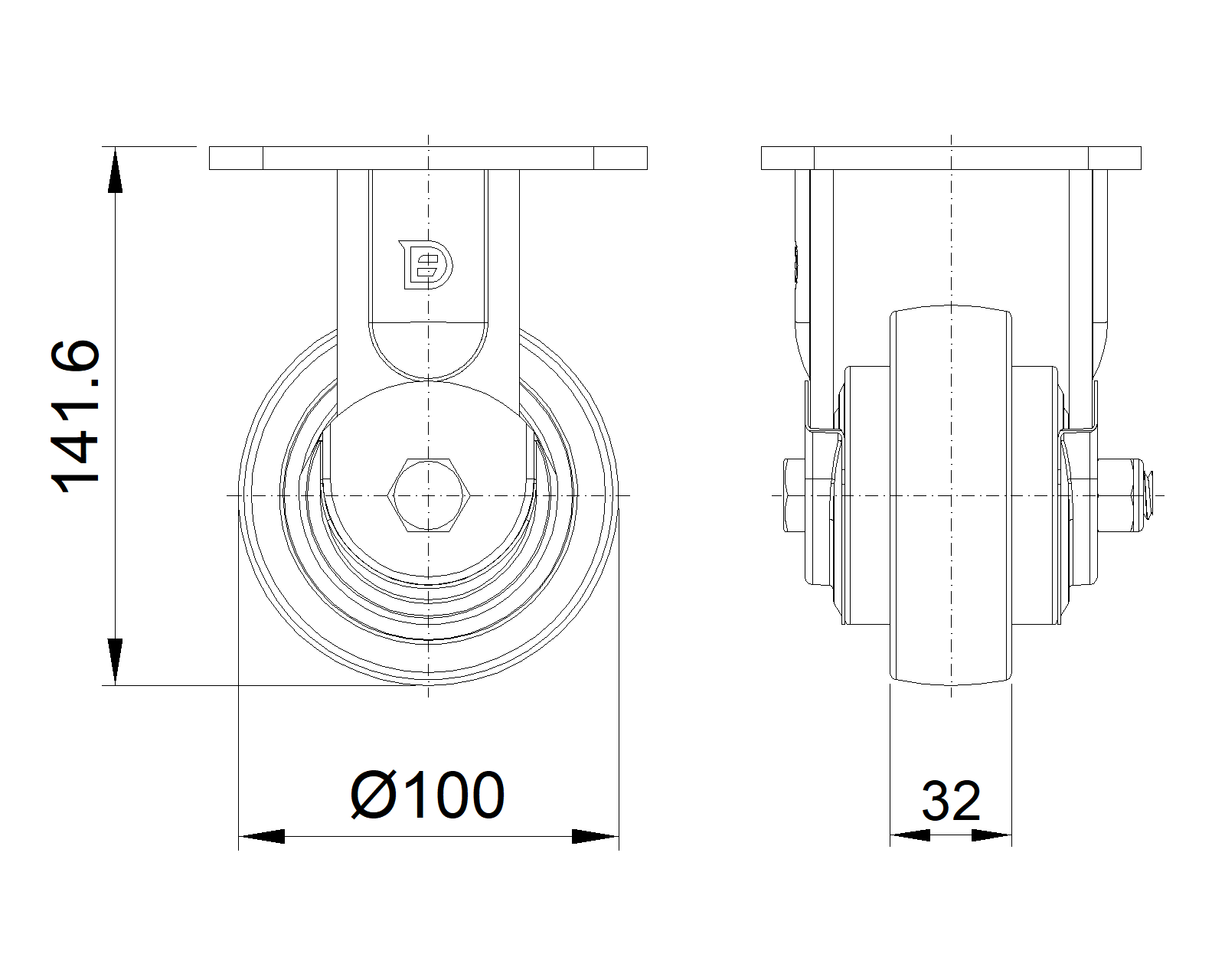

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings

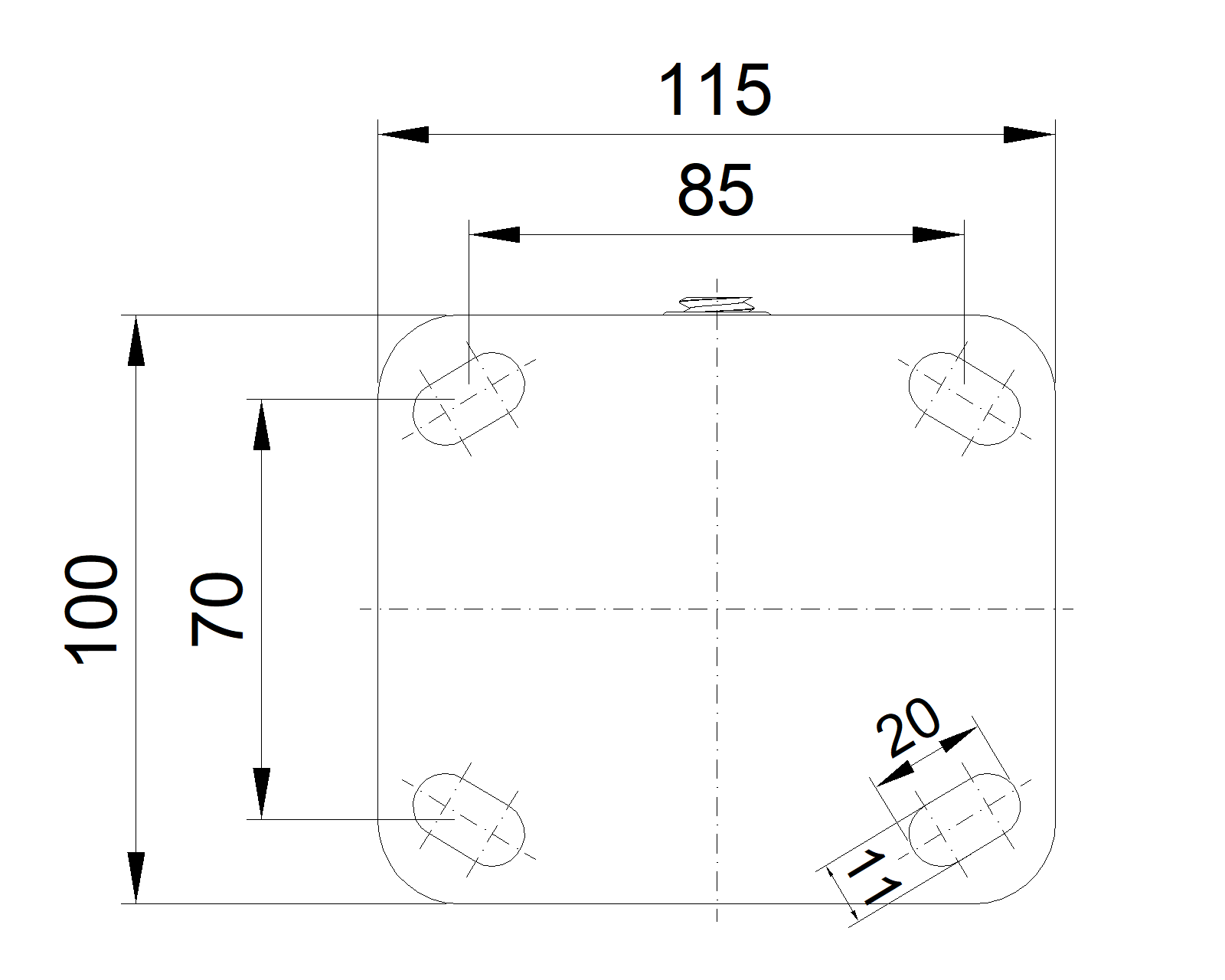

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 141.6mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.49kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1141 Kingpinless Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11410400291013
100 mm 200 Kgs 141.6 mm

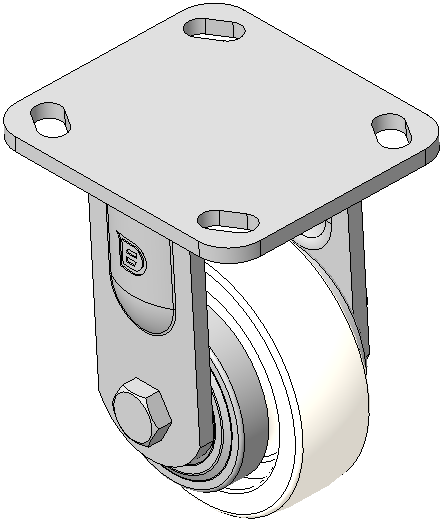

Rigid Caster, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Polypropylene core, natural Wheel Tread
Bearings—Ball Bearings
1141 Kingpinless Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11410400294113
100 mm 200 Kgs 142 mm

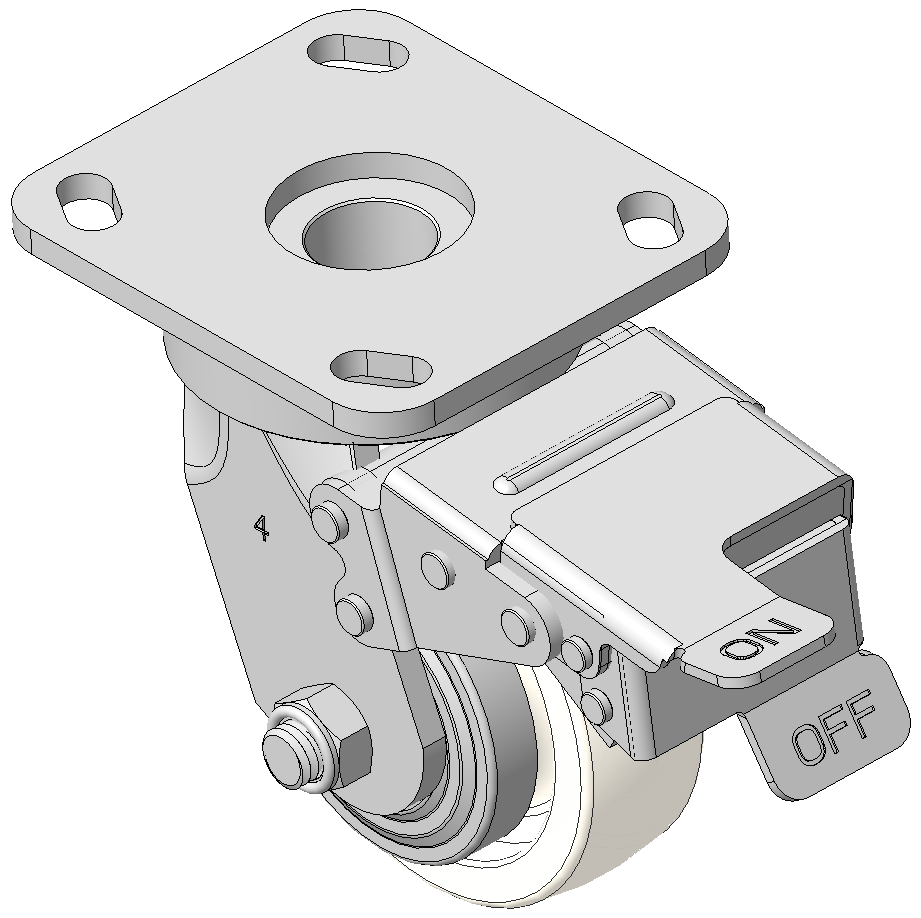

Casters with Front Brake locking system, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing
1141 Kingpinless Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11410400294123
100 mm 200 Kgs 142 mm

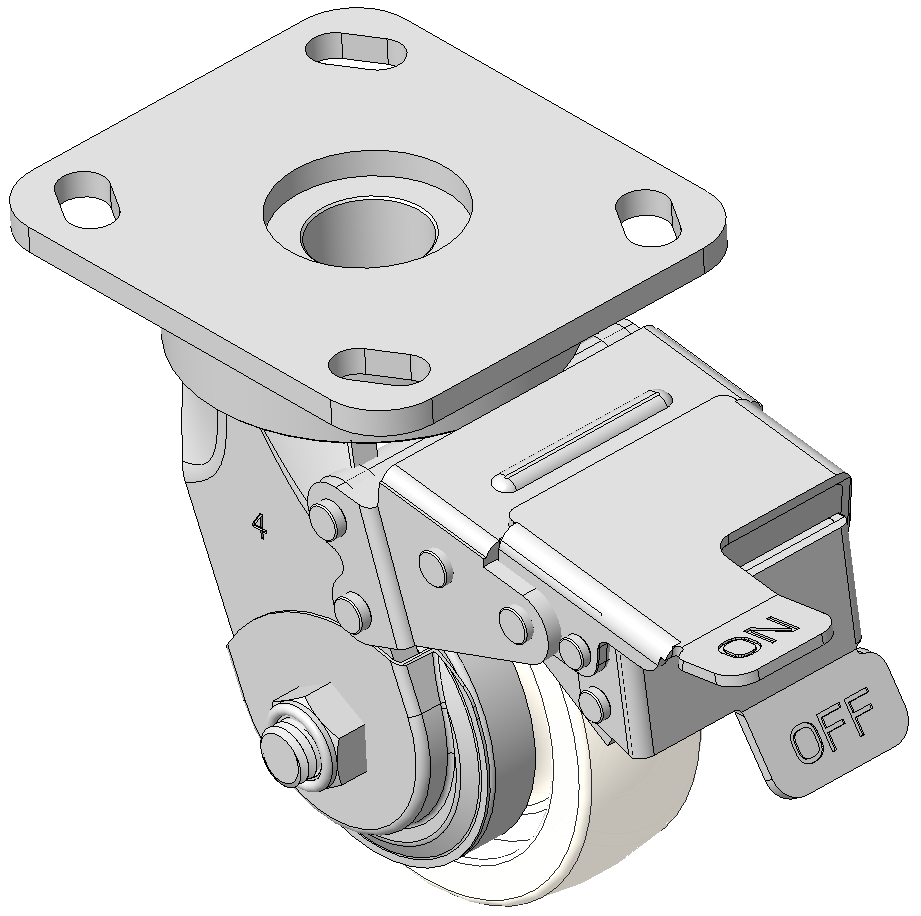

Casters with Front Brake locking system, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing, with special Anti-thread wheel cover
1141 Kingpinless Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11410400292013
100 mm 200 Kgs 141.6 mm

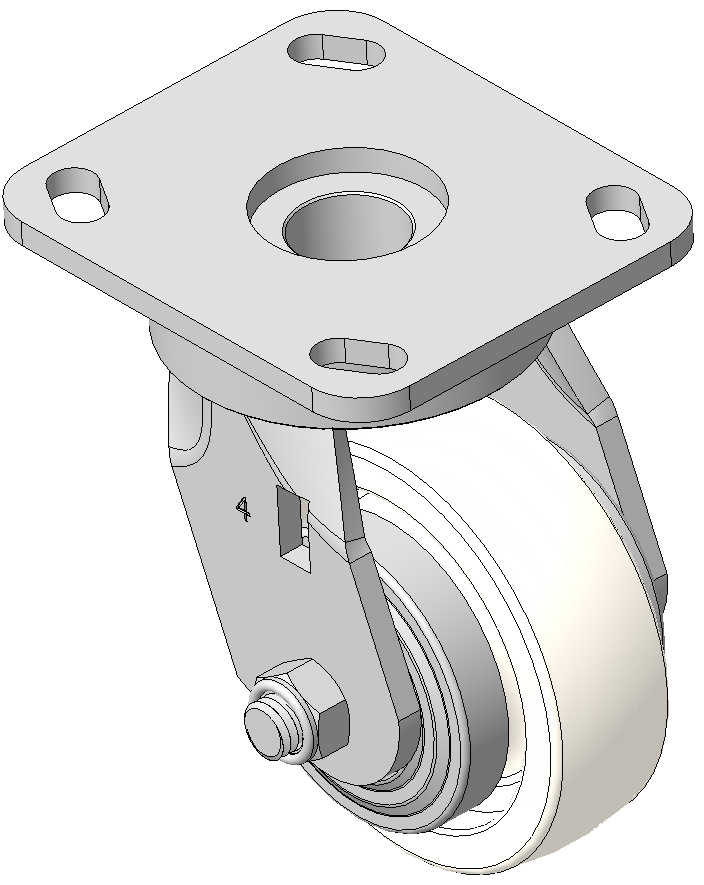

Swivel Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing
1141 Kingpinless Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11410400292023
100 mm 250 Kgs 141.6 mm

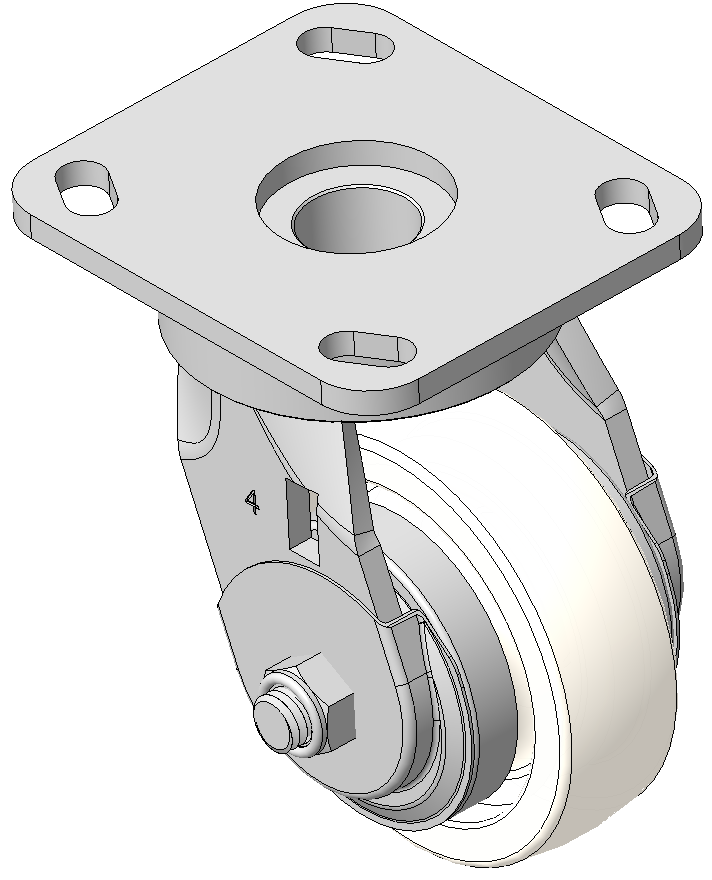

Swivel Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing, with special Anti-thread wheel cover
