    Product Data Sheet
1141 Kingpinless Caster Series
　　CPD Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11410500292023
　　　　　 　　　
Portable Casters, Welded Caster Fork
Zine-Plated surface, Mounting Type - Top Plate device, 85x70mm Bolt Hole Spacing
Polypropylene Wheel Center and rim, natural finish
Bearings—Ball Bearings, equipped with specially designed anti-winding wheel covers
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

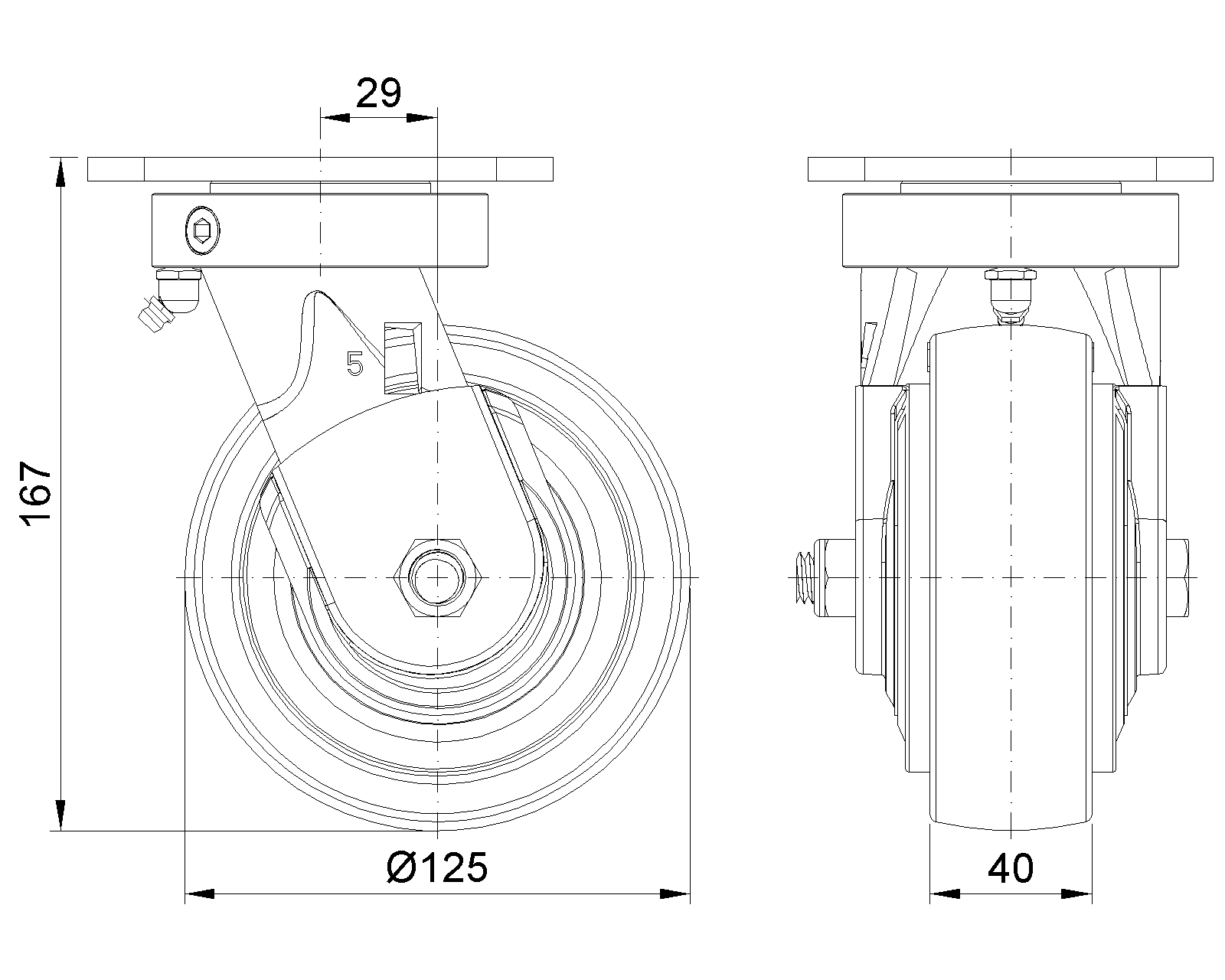

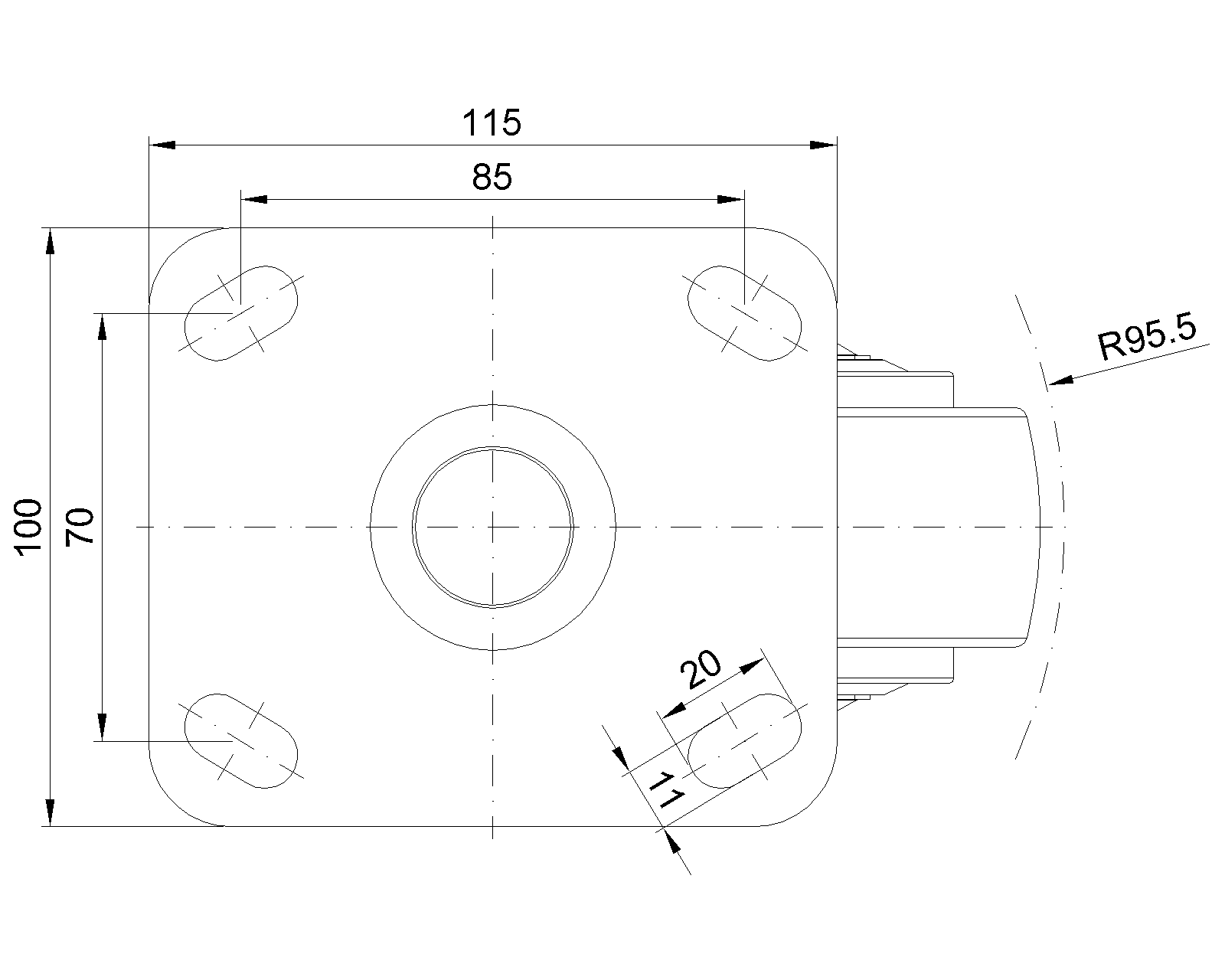

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 29mm　
　　Swivel Interference 191mm　
　　Overall Height 166.5mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.96kgs　
　　Standard ISO22883
　　
　　
