    Product Data Sheet

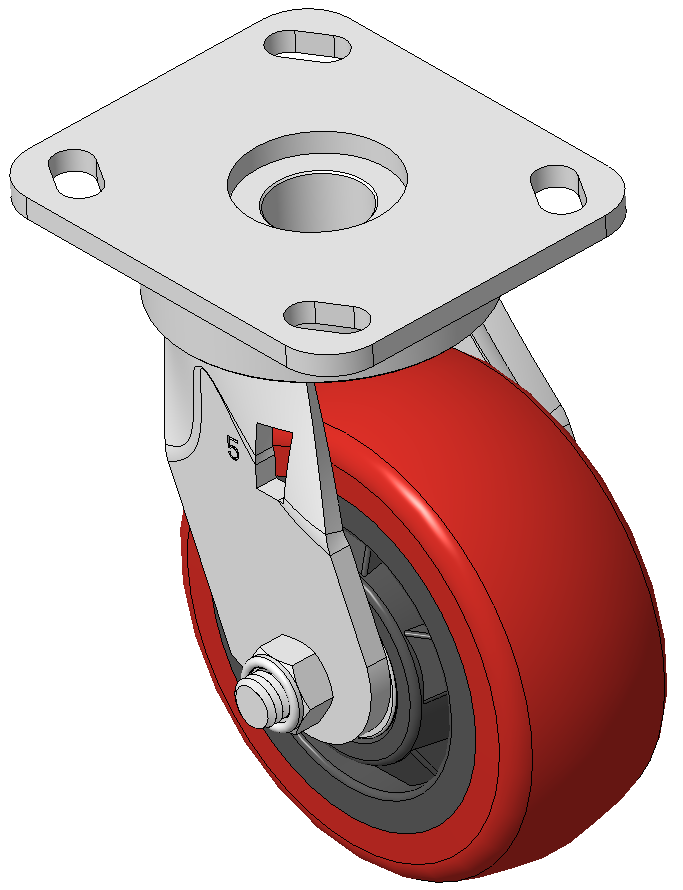

1141 Kingpinless Caster Series
　　SPU (black and red round) Wheel Diameter x Wheel Width 125 x 50 mm
　　EAN
　　　　　 KS-11410500462013
　　　　　 　　　
Swivel Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red Bearing - Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

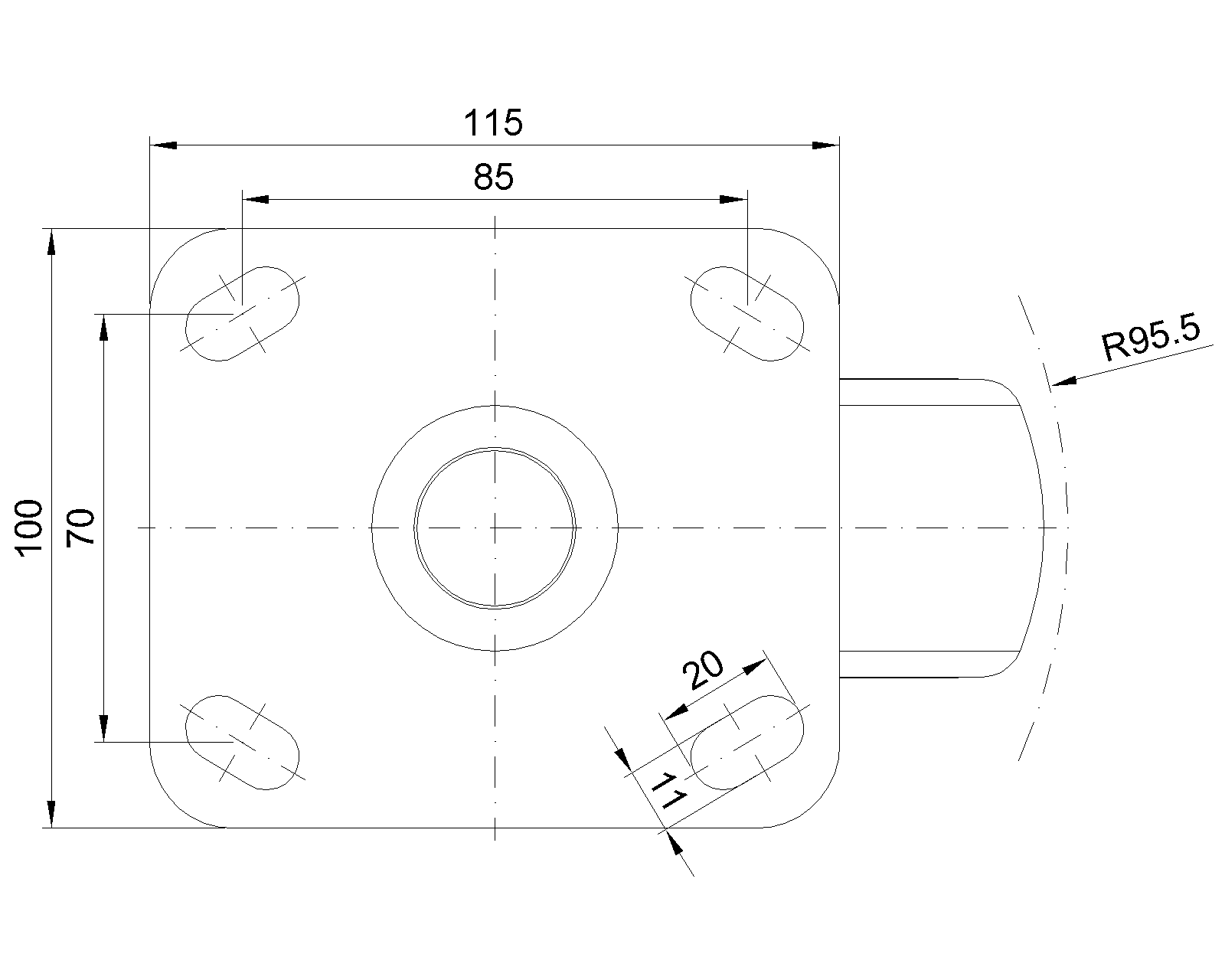

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 29mm　
　　Swivel Interference 191mm　
　　Overall Height 167mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 340kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 510kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.99kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1141 Kingpinless Caster Series
SPU (black and red round) Wheel Diameter x Wheel Width 125 x 50 mm
KS-11410500461013
125 mm 360 Kgs 167 mm
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron black and red Bearing—Ball Bearing

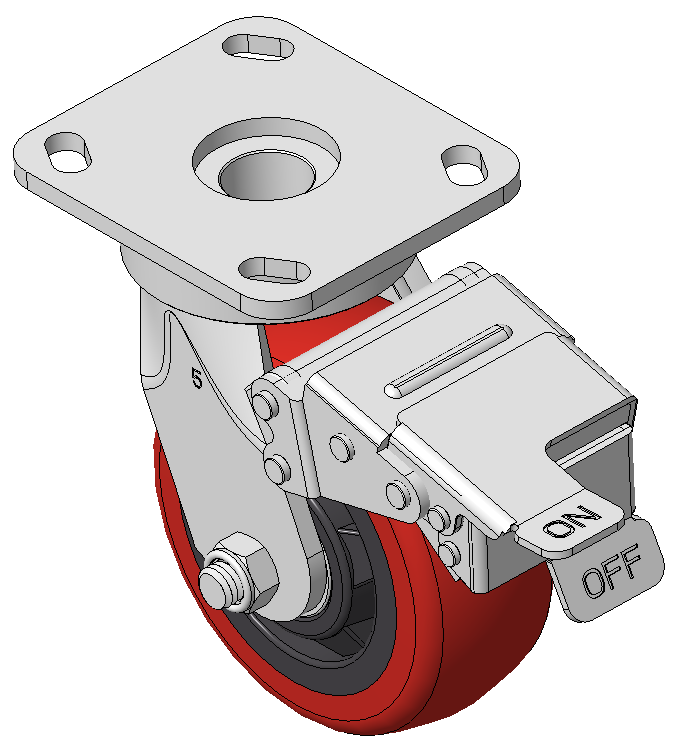

1141 Kingpinless Caster Series
SPU (black and red round) Wheel Diameter x Wheel Width 125 x 50 mm
KS-11410500464113
125 mm 340 Kgs 166.5 mm
Casters with front brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron black and red
Bearings—Ball Bearings

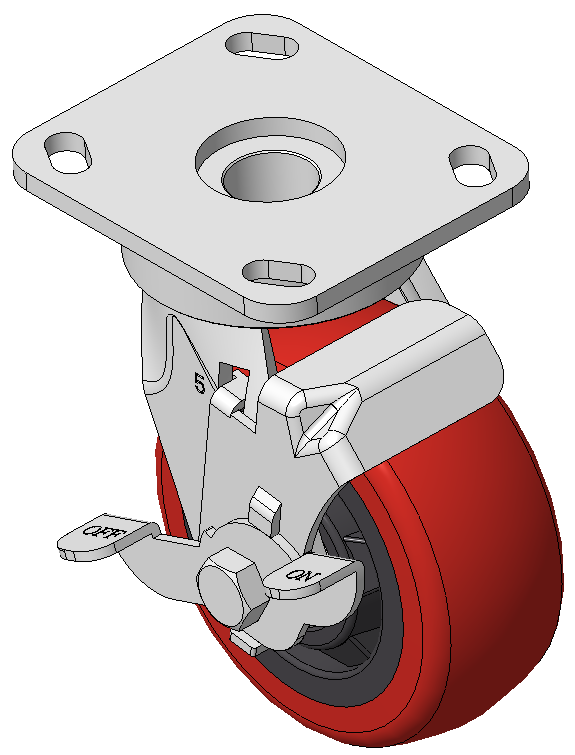

1141 Kingpinless Caster Series
SPU (black and red round) Wheel Diameter x Wheel Width 125 x 50 mm
KS-11410500464013
125 mm 340 Kgs 166.5 mm
Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron black and red
Bearings—Ball Bearings

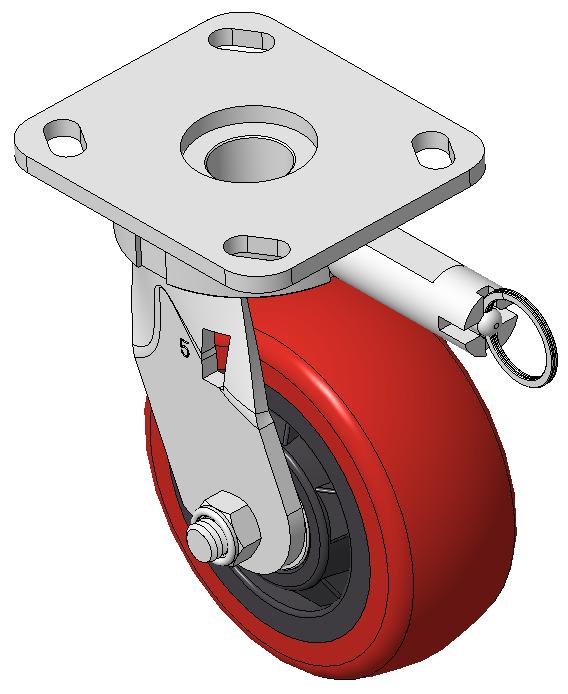

1141 Kingpinless Caster Series
