    Product Data Sheet
1141 Kingpinless Caster Series
　　WHDR (pearl light gray) Wheel Diameter x Wheel Width 125 x 50mm
　　EAN
　　　　　 KS-11410500502723
　　　　　 　　　

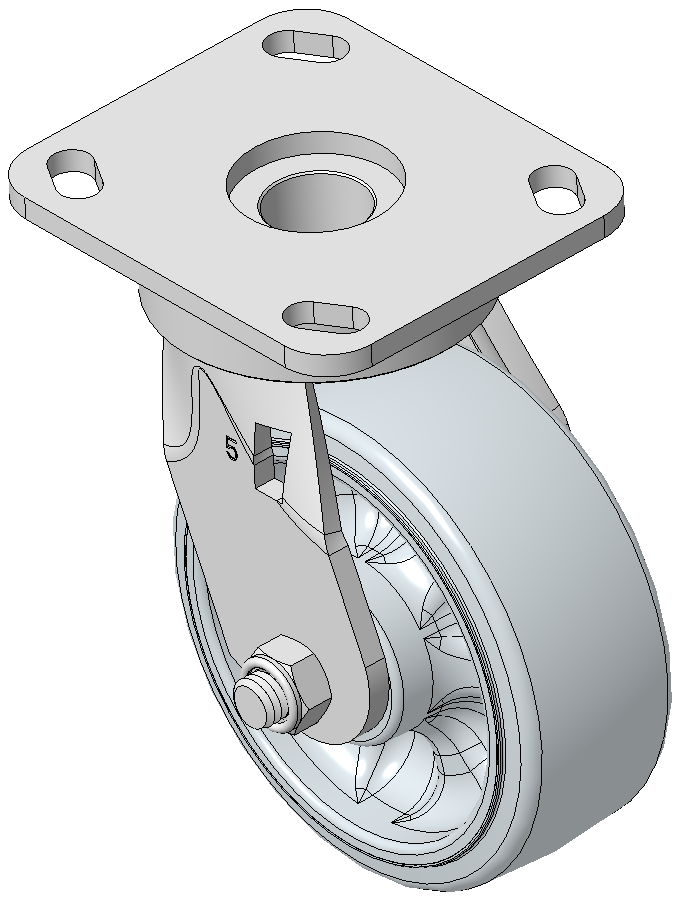

Swivel Caster, Welded Caster Fork Extended control lever surface, Mounting Type - Top Plate, Hole spacing 85x70 Reinforced Polypropylene, Wheel Tread pearlescent light gray Bearing-Ball Bearing
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

  　　Drawings are for reference only and may differ from the product




      Metric Imperial

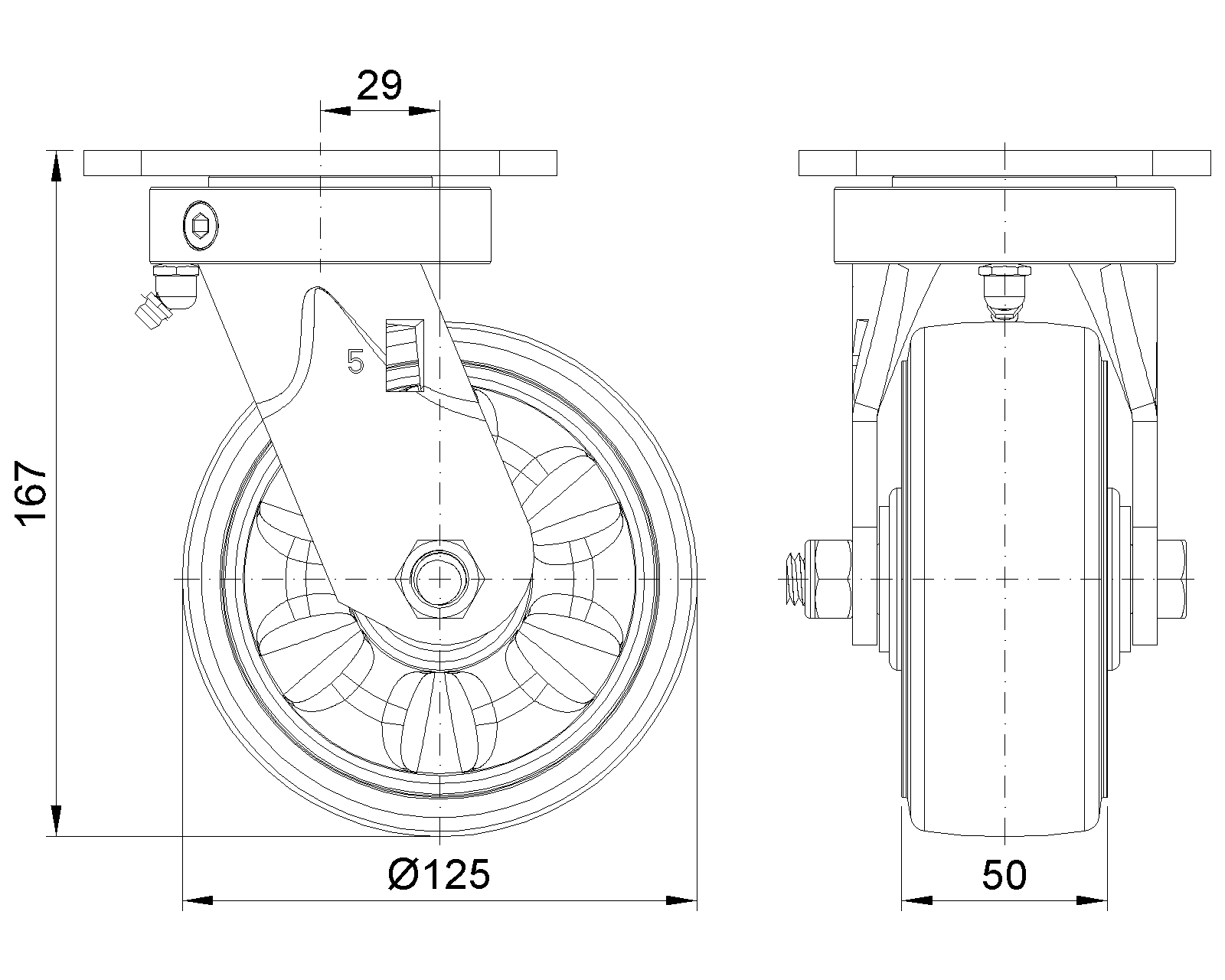

　　Wheel Diameter 125mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

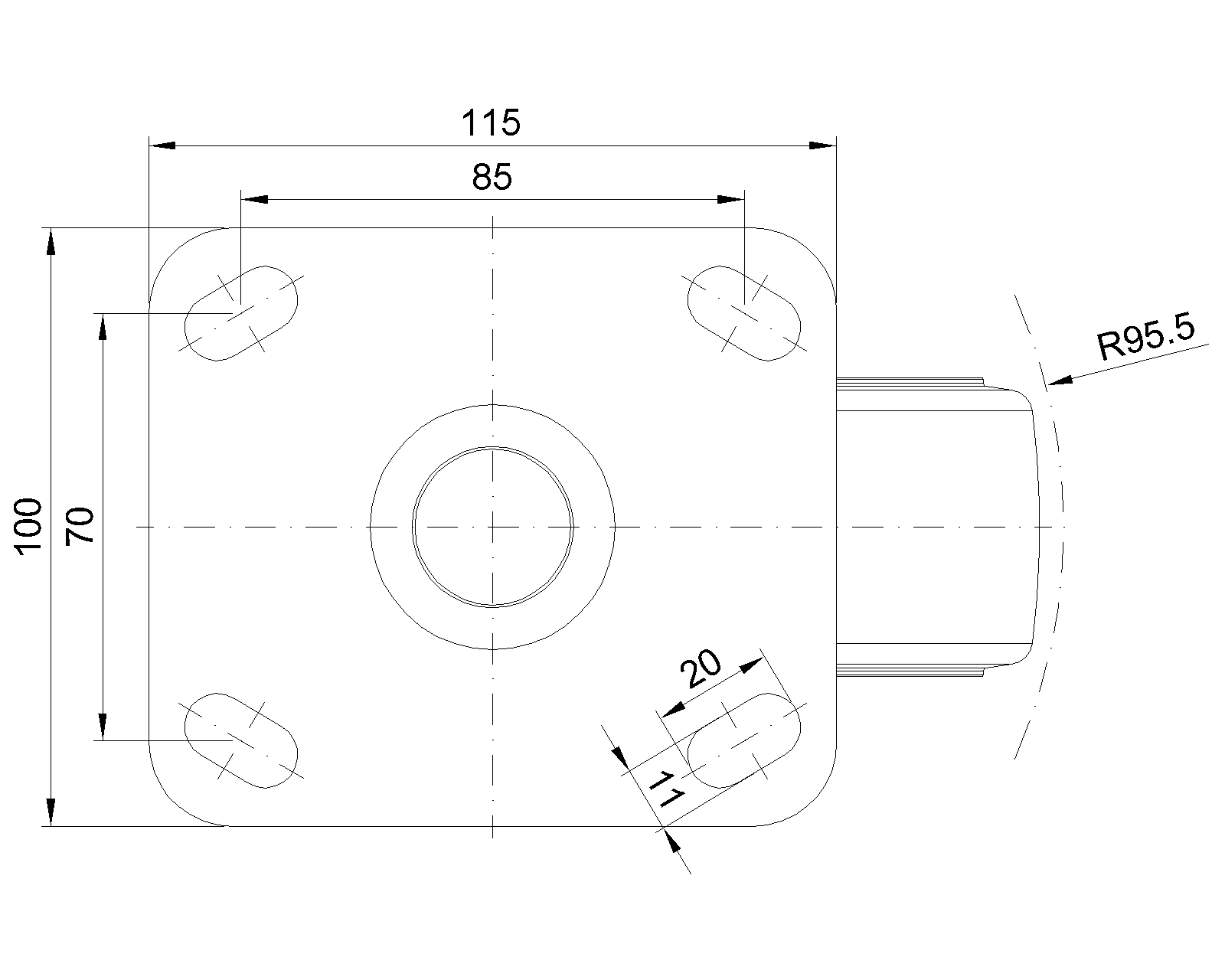

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 29mm　
　　Swivel Interference 191mm　
　　Overall Height 167mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 340kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 510kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.05kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 125 x 50mm
KS-11410500501723
125 mm 360 Kgs 167 mm

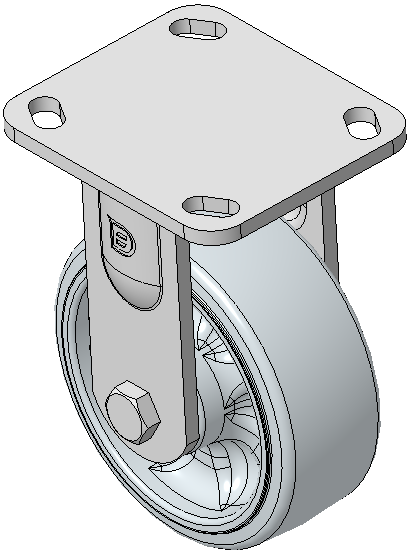

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, pearlescent light gray Bearing—Ball Bearing
1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 125 x 50mm
KS-11410500504733
125 mm 340 Kgs 166.5 mm

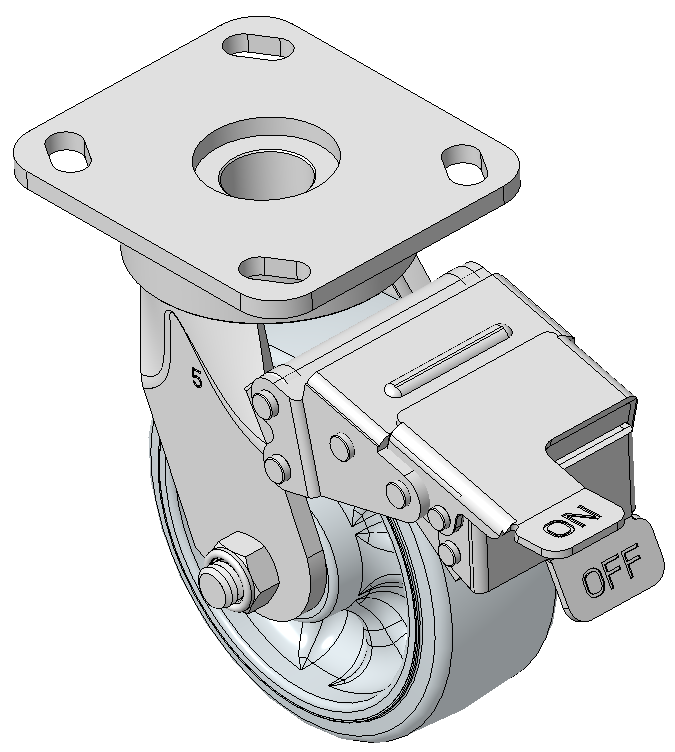

Caster with front brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron pearlescent light gray
Bearings—Ball Bearings
1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 125 x 50mm
KS-11410500504723
125 mm 340 Kgs 166.5 mm

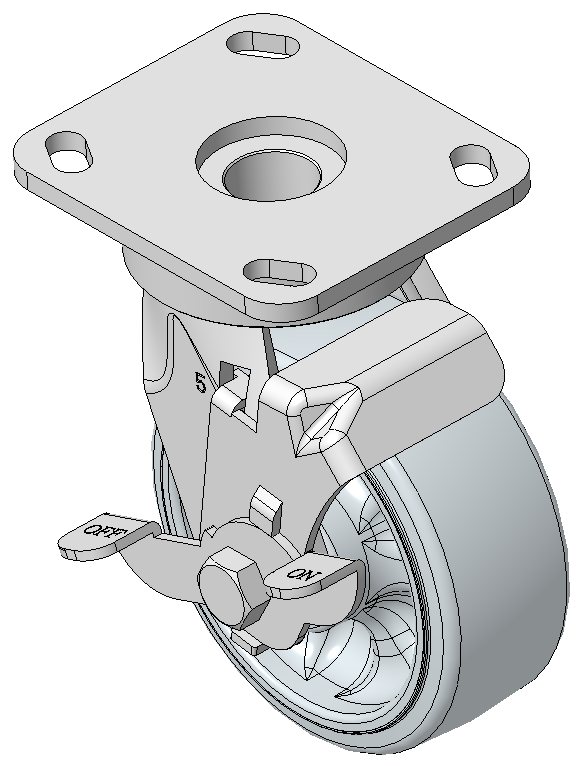

Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron pearlescent light gray
Bearings—Ball Bearings
1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 125 x 50mm
KS-11410500503723
125 mm 340 Kgs 166.5 mm

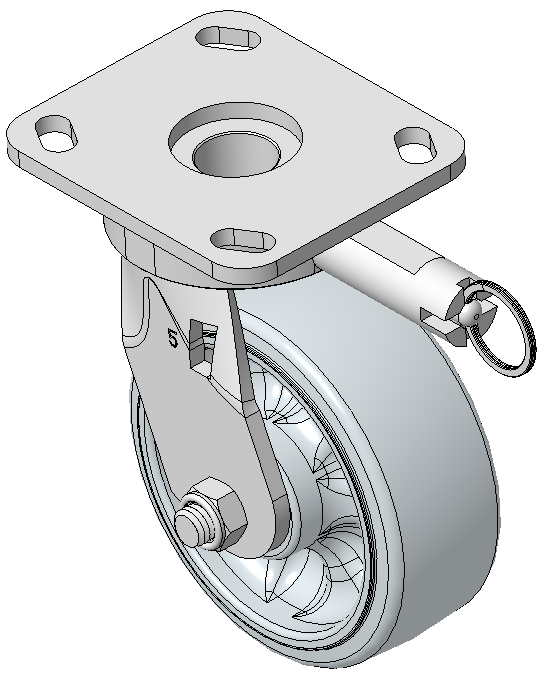

Casters with directional brake and With locking system, Welded Caster Fork
