    Product Data Sheet
1141 Kingpinless Caster Series
　　PU (red flat) Wheel Diameter x Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11410400334123
　　　　　 　　　
Equipped with front brake, locking Casters, Welded Caster Fork. Zine-Plated surface, Mounting Type - Top Plate, 85x70mm Bolt Hole Spacing. Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red. Bearings—Ball Bearings, with specially designed anti-winding wheel covers.
　　Wheel tread: High-quality polyurethane wheel tread
　　Wheel Center: Iron core/cast iron

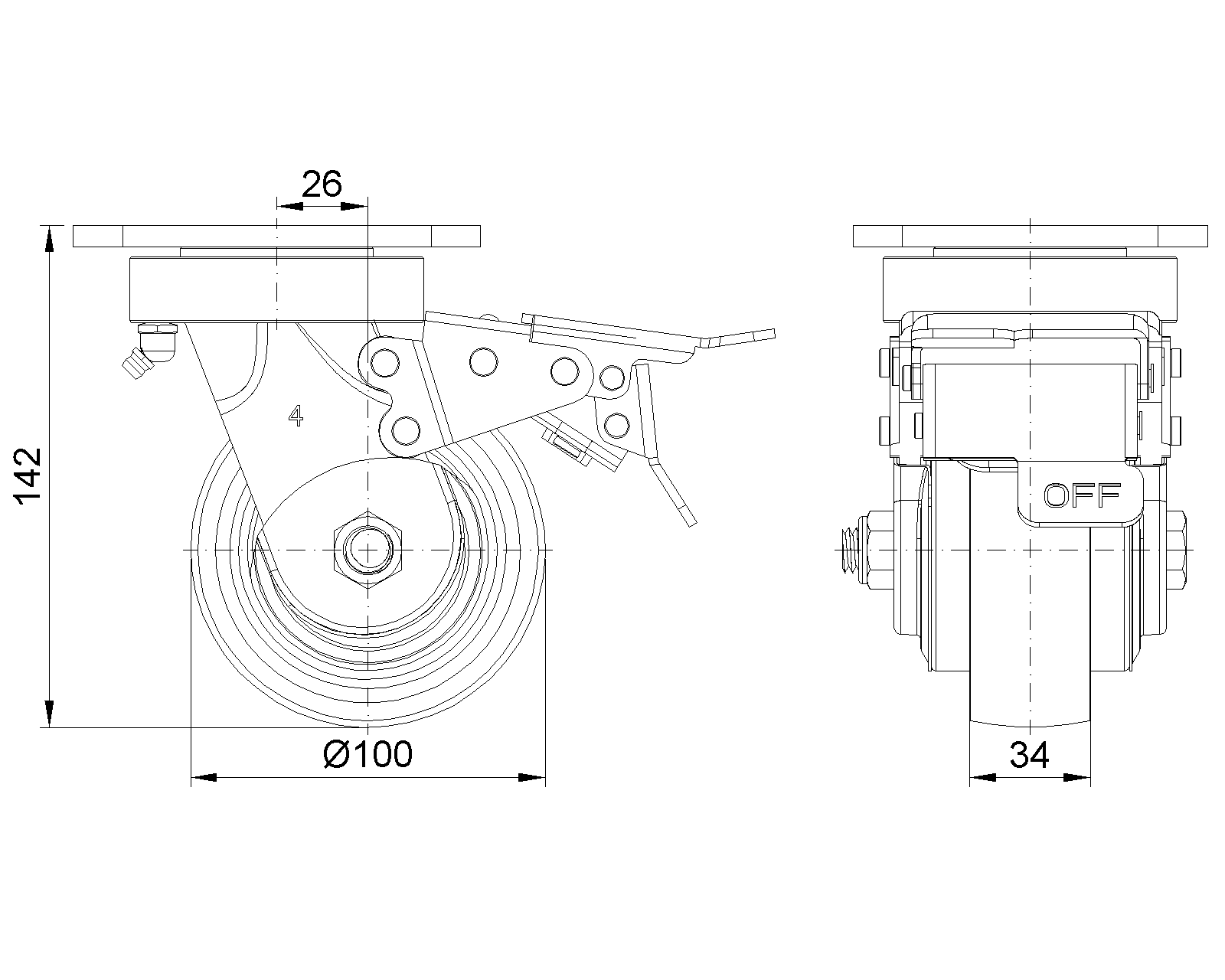

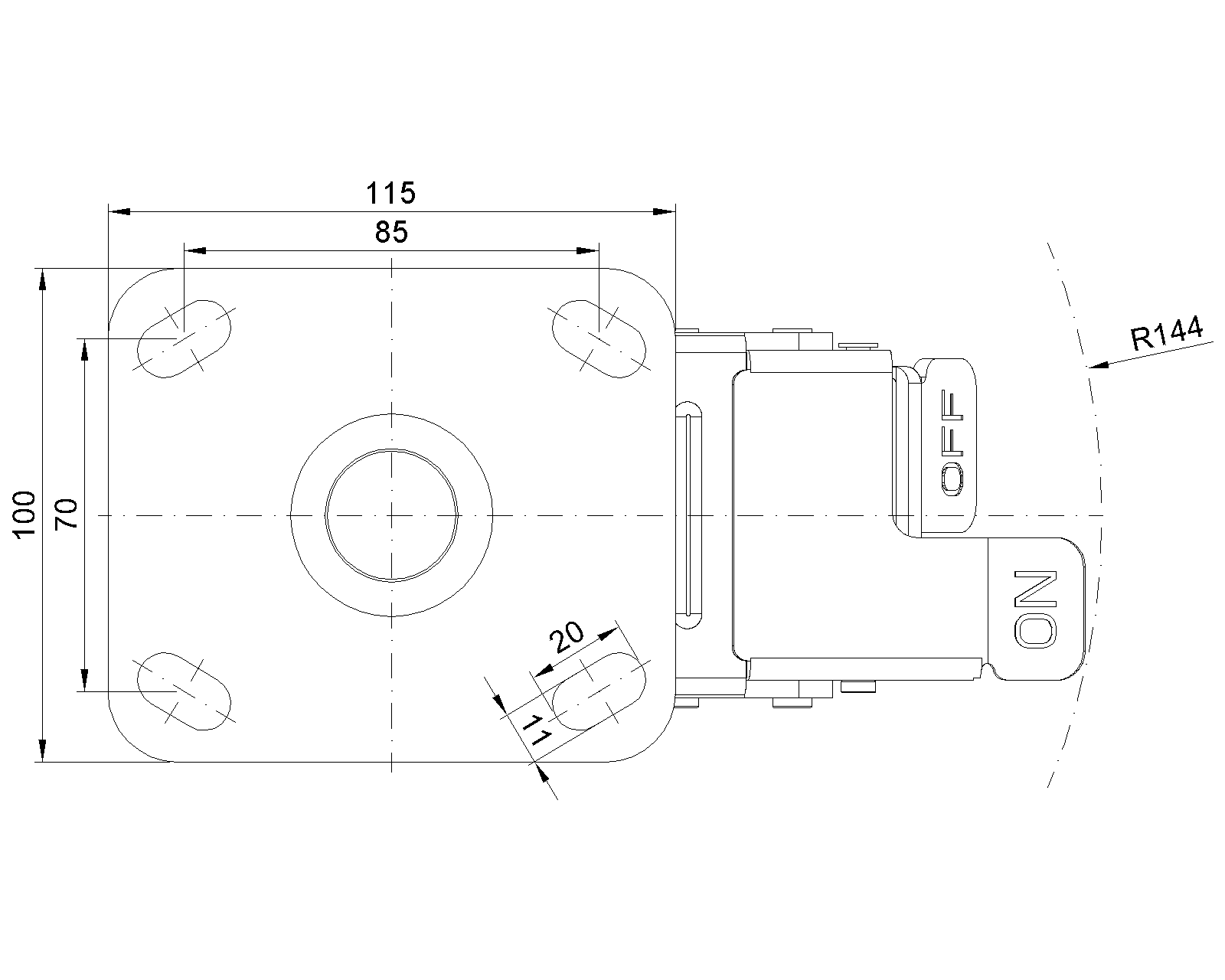

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 26mm　
　　Swivel Interference 288mm　
　　Overall Height 141.6mm　
　　Swivel Radius 144mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 320kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 480kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.35kgs　
　　Standard ISO22883
　　
　　
