    Product Data Sheet
1141 Kingpinless Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11410500071023
　　　　　 　　　
Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Reinforced Polypropylene, natural wheel tread Bearing—Ball Bearing with special anti-wrap wheel cap
　　Wheel tread: Thermoplastic (PA6)
　　Wheel tread: Thermoplastic (PA6)

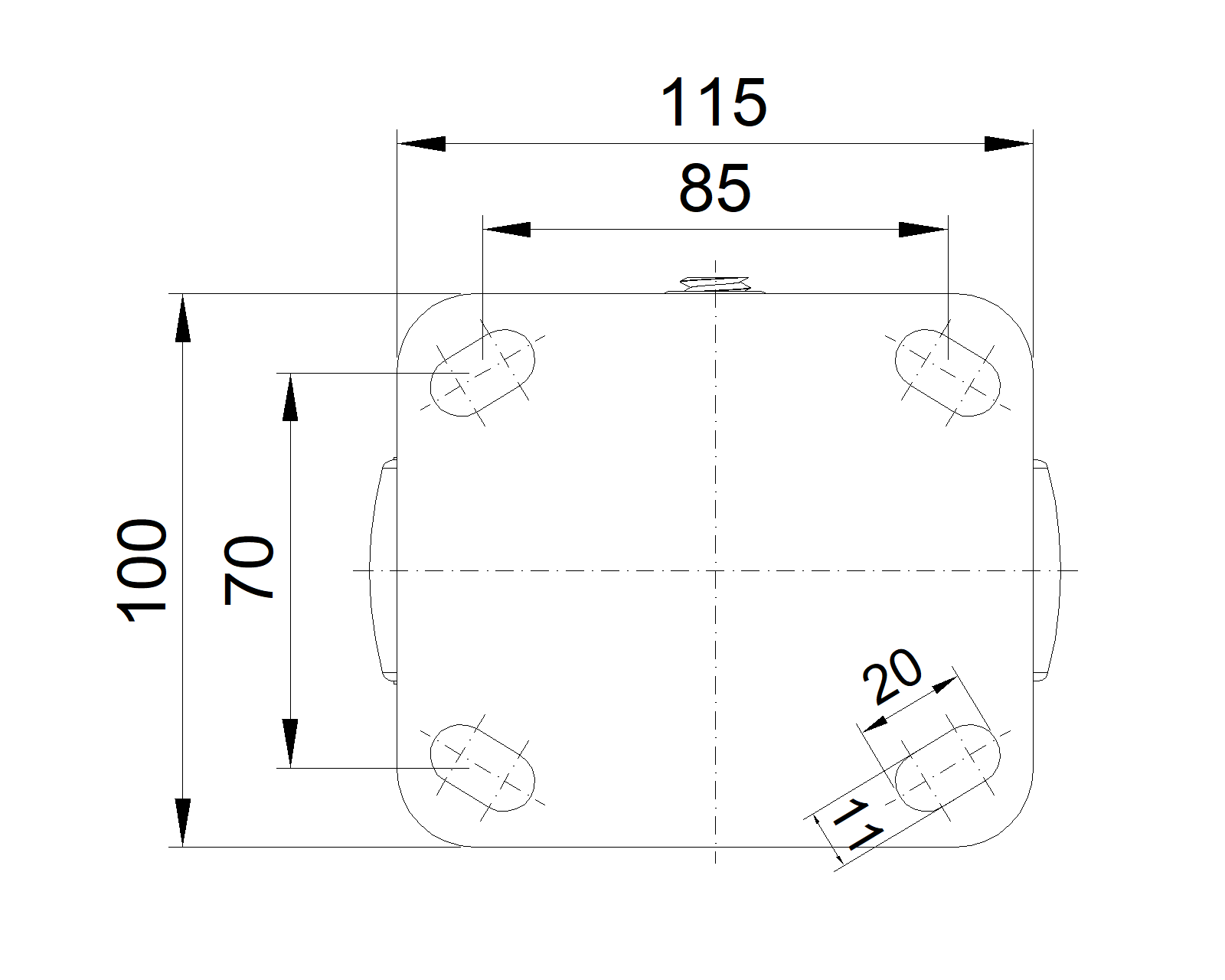

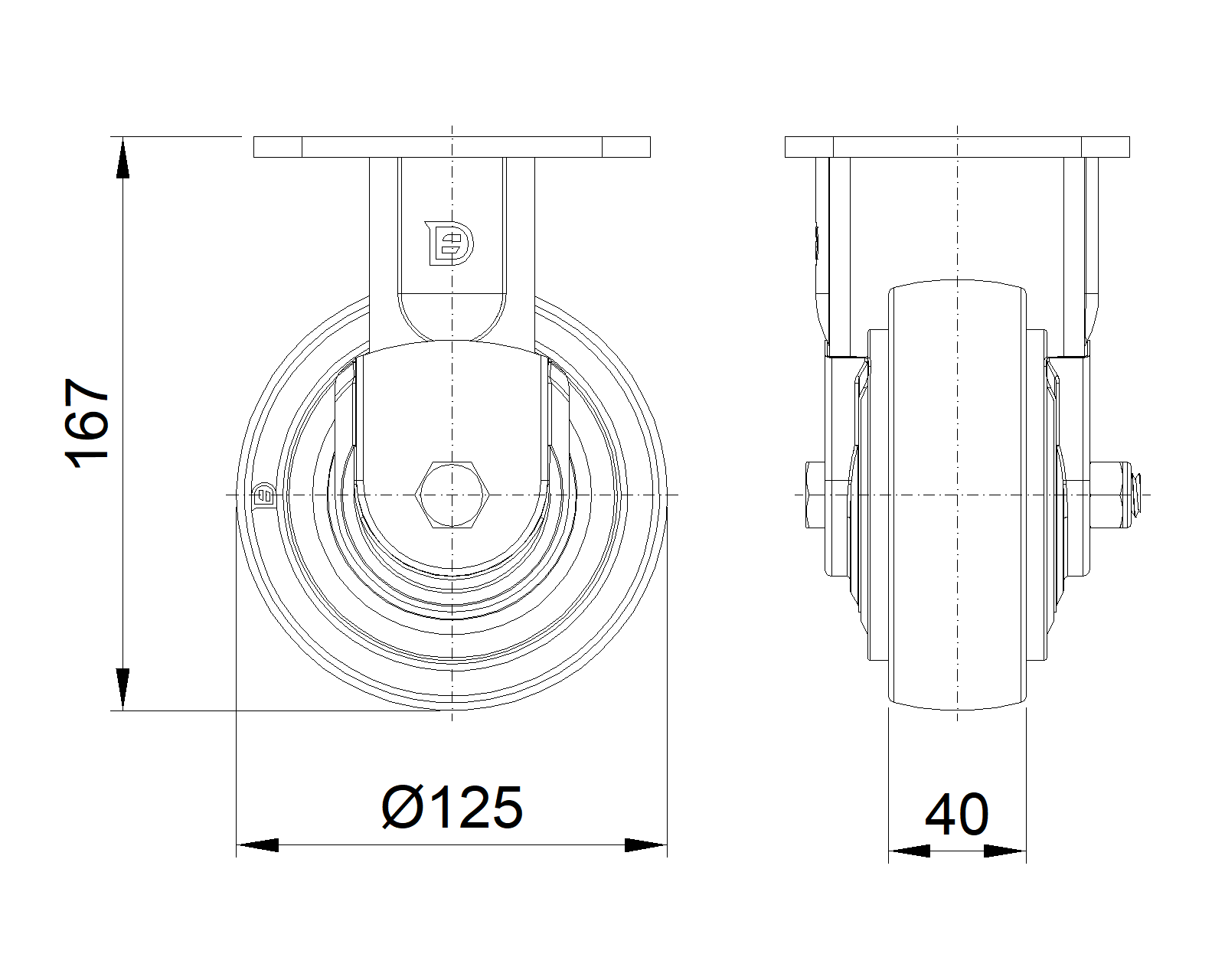

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 100 x 115mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 167mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.79kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1141 Kingpinless Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
KS-11410500072013
125 mm 300 Kgs 167 mm
Swivel Caster, Welded Caster Fork Surface sprayed with zinc, Top Plate Mounting Type device, Hole spacing 85x70 Reinforced Polypropylene, Wheel Tread Natural Color Bearing-Ball Bearing
1141 Kingpinless Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
KS-11410500072023
125 mm 300 Kgs 167 mm
Swivel Casters, Welded Caster Fork Surface sprayed with zinc, Top Plate Mounting Type device, Hole spacing 85x70 Reinforced Polypropylene, Wheel Tread Natural Color Bearing - Ball Bearing, with special Anti-thread wheel cover
1141 Kingpinless Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
KS-11410500071013
125 mm 300 Kgs 167 mm
Rigid Caster, Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Reinforced Polypropylene, natural wheel tread Bearing—Ball Bearing
1141 Kingpinless Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
KS-11410500074123
125 mm 300 Kgs 166.5 mm
Casters with front brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural Wheel Tread
Bearings—Ball Bearings
1141 Kingpinless Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 125 x 40mm
KS-11410500074133
125 mm 300 Kgs 166.5 mm
Casters with front brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural Wheel Tread
Bearings—Ball Bearings with special Anti-thread wheel cover
